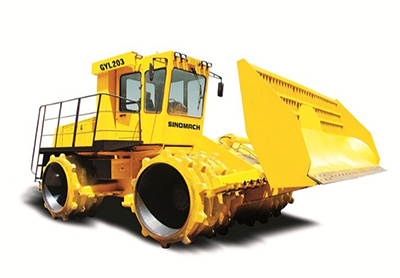

GYL283 Landfill Compactor

GYL283 Landfill Compactor
Download
Consulting Products Information
Technical Parameters of the Road Roller:
Model GYL283
Operating weight (kg) 28000
Rolling width (mm) 3430
Max. travel speed (km/h) 10.9
Gradeability (%) 100
Dozer blade dimensions （Width×height）(mm) 1880×3800
Wheelbase (mm) 3500
Ground clearance (mm) 490
Teeth number per wheel (Front/reverse) 50/40
Diesel engine SHANGCHAI SC11CB 255
Rated output power （kw） 187
Overall dimensions （Length ×width ×height）（mm） 8150×3430×3650
Inquiry
Compare Against Other Products
    1. Road Roller GYS08
    2. GYS08 Rated output (KW): 42
      Centrifugal force (KN): 85
      Operating weight (KG): 8000
    1. Road Roller GYS10
    2. GYS10 Rated output(KW): 82
      Centrifugal force (KN): 225/105
      Operating weight (KG): 10000
    1. Single Drum Vibratory Roller GYS14
    2. GYS14 Rated output (KW): 82
      Centrifugal force (KN): 305/150
      Operating weight (KG): 14000
    1. Road Roller GYS16
    2. GYS16 Rated output(KW): 118
      Centrifugal force (KN): 305/165
      Operating weight (KG): 16000
    1. Road Roller GYS20
    2. GYS20 Rated output(KW): 129
      Centrifugal force (KN): 405/220
      Operating weight (KG): 20000
    1. Road Roller GYS102
    2. GYS102 Rated output(KW): 82
      Centrifugal force (KN): 225/105
      Operating weight (KG): 10000
