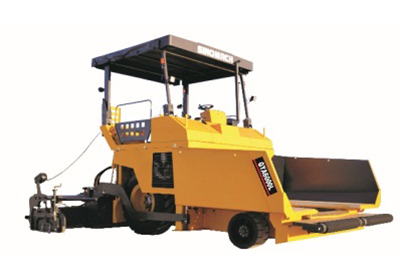

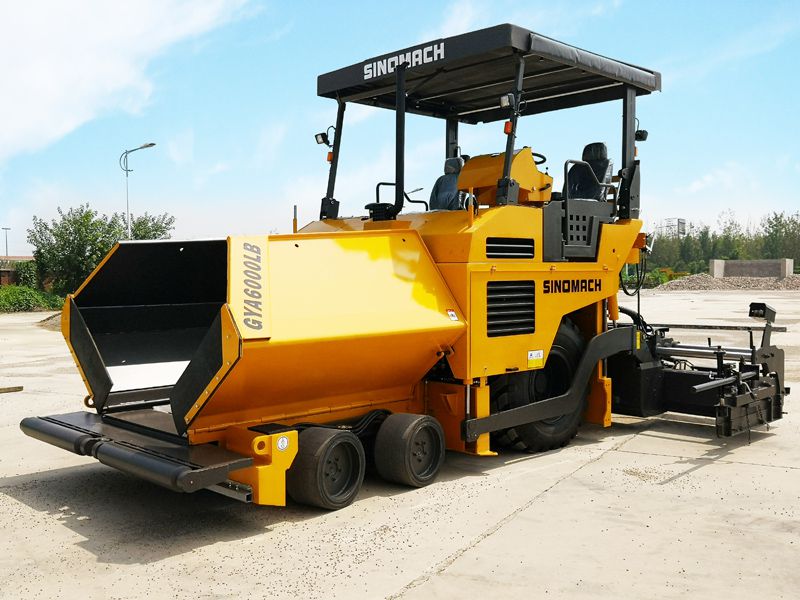

GYA6000L(B) Asphalt Paver

GYA6000L(B) Asphalt Paver
  • Wheel type pavers are widely used, convenient for quick transition, strong maneuverability and high work efficiency.
  • Dongfeng Cummins EFI engine, strong power, high reliability; good low temperature start-up performance.
  • Equipped with full hydraulic automatic telescopic screed, paving width 1.8-4.5m stepless adjustable.
  • Optional all-wheel drive model provides greater traction for heavy duty and softer roadbed conditions.
Download
Consulting Products Information
  • Driving tire drive, the paving speed adopts constant speed automatic control technology.
  • The key hydraulic components such as pumps, motors, joints, etc. are properly matched and can be adapted to the transportation and paving of any stable soil and asphalt mixture.
Technical Specification:
Model GYA6000L GYA6000LB
Length×Width×Height (mm): 6290×2690×3650 6290×2690×3650
Total weight (kg): 16000 17000
Engine Cummins QSB 3.9-C125 Cummins QSB 3.9-C125
Rated output (kw) 93 93
Basic paving width (mm) 2500 2500
Max. paving width (mm) 6000 6000
Max. paving thickness (mm) 200 200
Travelling type Rear wheel drive All wheel drive
Travelling speed (km/h) 0-15 0-15
Paving speed (m/min) 0-11 0-11
Hoper capacity (t) 12 12

Besides the GYA6000L(B) asphalt paver, SINOMACH have many other kinds of heavy construction and engineering equipment for sale.
