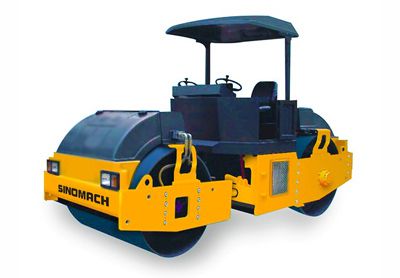

Road Roller GYD10

Road Roller GYD10

Download
Consulting Products Information
Specifications:
Model GYD10
Length×Width×Height(mm) 4880×1980×2800
Operating weight (Kg) 10000
Drum width (mm) 1700
Static linear pressure （N/cm） 259/317
Vibration frequency (Hz） 42
Centrifugal force（KN） 100/85
Forward 2.4/4.8/8.4
Reverse 2.4/4.8/8.4
Diesel engine Cummins 4BT3.9-C100
Rated output(KW) 75
Inquiry
Compare Against Other Products
    1. Single Drum Vibratory Roller GYD102
    2. GYD102 Rated output (KW): 82
      Centrifugal force (KN): 110/65
      Operating weight (KG): 10000
    1. Road Roller GYW802L
    2. GYW802L Rated output (KW): 5.7
      Centrifugal force (KN): 12
      Operating weight (KG): 770
    1. Road Roller GYR16
    2. GYR16 Rated output (KW): 93
      Tire number: 4+5
      Operating weight (KG): 10000~16000
    1. Road Roller GYR26
    2. GYR26 Rated output (KW): 119
      Tire number: 5+6
      Operating weight (KG): 16000~26000
    1. GYR30 Landfill Compactor
    2. GYR30 Rated output (KW): 132
      Tire number: 5+6
      Operating weight (KG): 25000-30000
    1. GYL203 Landfill Compactor
    2. GYL203 Rated output(KW): 147
      Rolling width (mm): 2910
      Operating weight (KG): 20000
