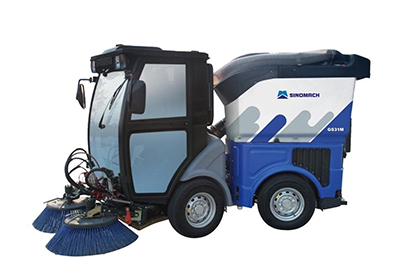

GS31M Multi-functional Street Sweeper
Equipped with a specialized chassis and driven by full hydraulic power, the GS31M multifunctional sweeper stands at the forefront of urban cleaning technology. Its capacity to interchange functional accessories makes it suitable for various cleaning tasks. Powered by an imported diesel engine, the sweeper integrates a sophisticated combination of mechanical structure, electrical control, and hydraulic systems, ensuring excellent performance. Primarily focused on urban areas, including streets, squares, factories, and parks, this road sweeping machine is an indispensable tool for maintaining public spaces, reflecting its commitment to efficiency and high operational standards.
Consulting Products Information
Features
- This street sweeper features a stepless speed system with hydraulic transmission, utilizing a bidirectional variable pump and hydraulic four-wheel drive motors, all imported for superior performance.
- It operates with digital circuit control for easy use. A single button manages the floor washing device and suction port, with separate controls for varied operations. The speed of the washing brush can be finely tuned, and the system is enhanced with CAN bus communication for streamlined wiring and maintenance.
- Equipped with dust suppression nozzles to minimize airborne particles during cleaning, enhancing air quality around the vehicle.
- Boasts a unique two-way hinged structure allowing for flexible steering and a small turning radius, with shock absorbers for smooth operation over rough terrain.
- Capable of various tasks like floor washing, mowing, snow pushing, and sweeping, thanks to interchangeable attachments for front and rear, meeting a range of urban maintenance needs.
Technical Specification
| Item | Parameter |
| Dimensions (mm) | 3260×1220×2075 |
| Wheelbase (mm) | 1415 |
| Min. turning radius (mm) | 5700 |
| Max. total mass (kg) | 2700 |
| Curb weight (kg) | 1970 |
| Water tank volume (L) | 150 |
| Sweeping width (mm) | 2270 |
| Working speed (km/h) | 1-10 |
| Max. speed two drive /four drive (km/h) | 0-30/0-15 |
| Max. suction particle size (mm) | 120 (equivalent diameter at a density of 2.0g/cm³) |
| Engine power | 30.6kW/2600rpm |
