GS42M Multi-functional Street Sweeper

GS42M Multi-functional Street Sweeper

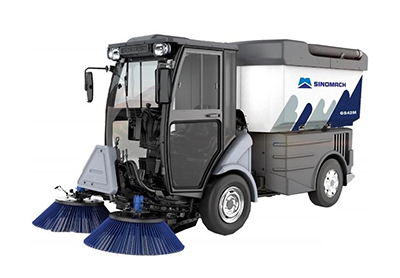

Our multifunctional street sweeper model GS42M is a versatile road cleaning vehicle designed with a powerful hydraulic drive and a special chassis. This road sweeper can easily switch out its functional accessories for different cleaning jobs, making it a great tool for various tasks. With its advanced features, this road sweeping machine is more efficient than similar sweepers. Thanks to its designed and advanced features, this sweeper is perfect for cleaning city streets, squares, factories, and parks, offering a practical solution for keeping urban areas clean and tidy.

Download
Consulting Products Information
Features
  • Smooth hydraulic steering for easy handling
  • Independent air conditioning to keep the cabin comfortable in any weather
  • Dual side-opening doors for convenient access
  • A radio and CD player for on-the-job entertainment
  • A 7-inch color display keeps essential information at a glance
  • Controls and vehicle status indicators are integrated for ease of use
  • A clear indicator for the garbage hopper's level
  • Reverse camera for safer backing up
  • It’s possible to switch between two-wheel and four-wheel drive to suit different surfaces
  • Floating brushes adapt to various road conditions
  • The cleaning width and height can be adjusted from the driver's seat
  • The steering wheel's angle is adjustable for driver comfort
  • Options for dust control include both water circulation and spraying systems
Technical Specification
Item Specifications
Tire size 195/75R14C
Dimension (mm) 4280×1220×2150
Wheelbase-gross vehicle weight 1930mm/3200kg
Front/rear track width (mm) 980
Dump height (mm) 1380
Climbing ability 20%
Garbage hopper structure Stainless steel(AlS1304)
Sweeping and cruising speed (km/h) 0-15
Max. working speed (km/h) 30
Brake Hydraulic type front and rear dynamic brake system
Vehicle curb weight (kg) 2160
Min. turning radius (mm) Wall-to-Wall 3430 Road edge stone to road edge stone 3070
Tilting angle 85°
Frame form Articulated frame
Parking Mechanical braking
Rated pressure of high-pressure Water pump (MPa) 10
Rated flow of high-pressure water pump (L/min) 24
Dust suppression water pump 12VDC, 4.2L/min, 6.9bar
