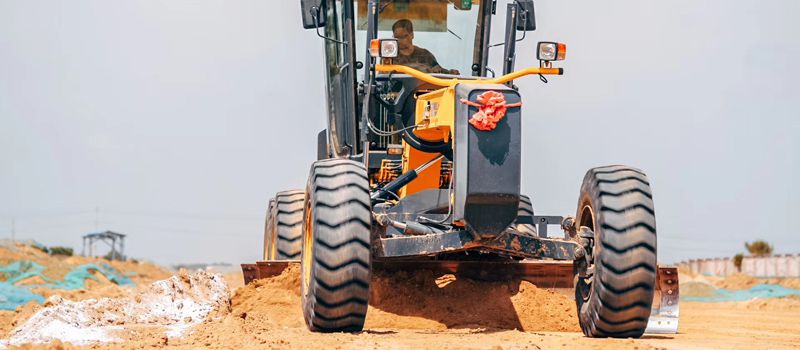

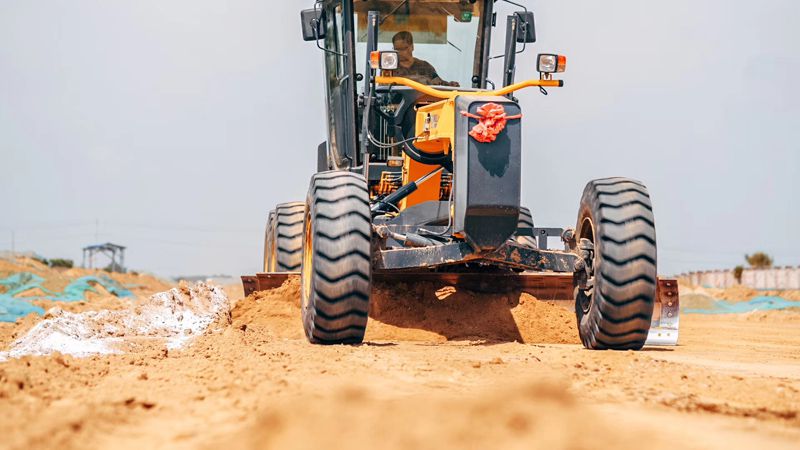

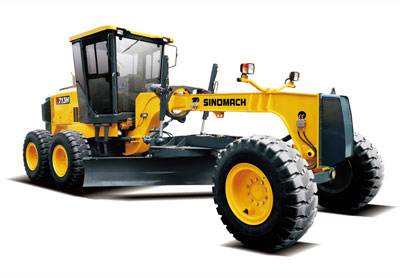

713H Motor Grader
Our 713H motor grader adopts power shift transmission featuring sing-handle manipulation and electro-hydraulic control. With 6 forward and 3 reverse gears shifting, the vehicle is easy and convenient to operate. It also utilizes a highly efficient hydraulic system with hydraulic lock, enabling normal operation of every unit. Moreover, the fully hydraulic brake system provides high working safety and reliability for the equipment.
Our road grader is equipped with NO-SPIN differential having auto locking and unlocking function, which ensures great stability and powerful traction. Due to the reasonable axle load allocation, the vehicle can work stably when cutting hard ground surface. It is able to finish heavy-duty task because of the box-type frame and advanced transmission. This engineering machinery can also accomplish various tasks through the flexible blade suspension system and articulated frame.
| Basic specification | |
| Engine model | Cummins 6BT5.9-C130 |
| Rated power | 97KW@2200rpm |
| Dimension(L×W×H) | 8290×2600×3465（mm） |
| Operating weight(Standard) | 12000KG |
| Performance specification | |
| Travelling speed, forward | 6.9/10.7/17.3/26/37.8/53.4 |
| Travelling speed, reverse | 6.9/17.3/37.8 |
| Tractive force(f=0.75) | 61.7KN |
| Operating specification | |
| Max. steering angle of front wheels | 49° |
| Max. lean angle of front wheels | 17° |
| Max. oscillation angle of front axle | 16° |
| Max. oscillation angle of balance box | 13° |
| Frame articulation angle | 26° |
| Min. turning radius using articulation | 6.6m |

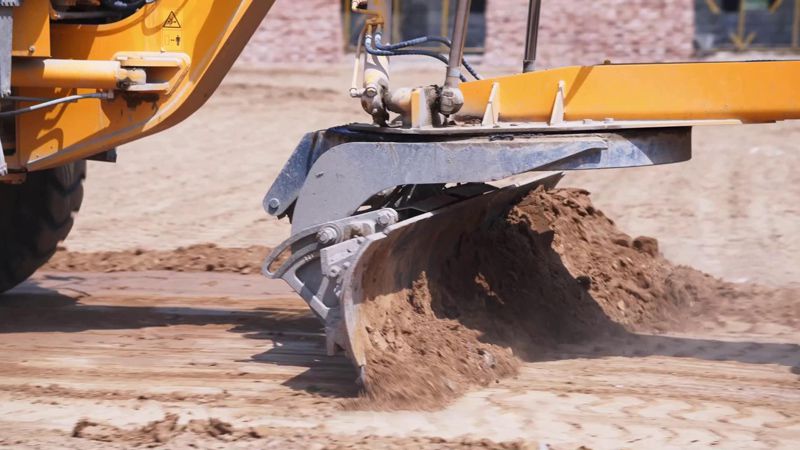

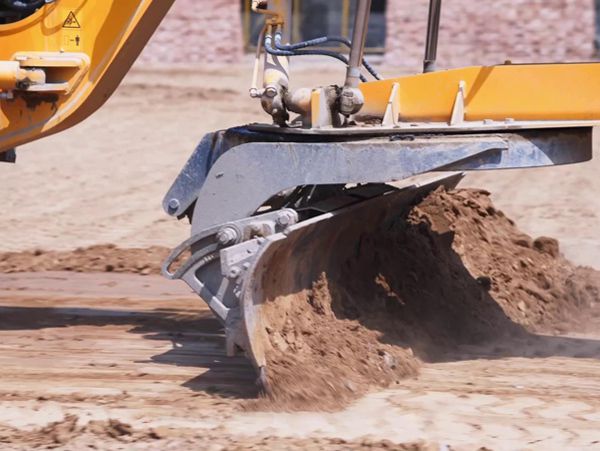

| Blade | |
| Maximum lift above ground | 410mm |
| Maximum grading depth | 560mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 29°~77° |
| Circle reversing rotation | 360° |
| Moldboard width × height | 3658×580mm |
-
