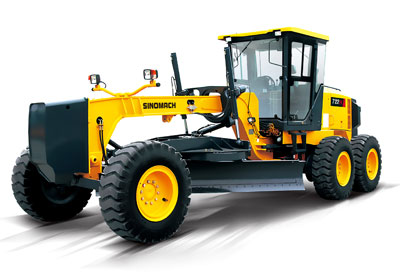

722H Motor Grader

722H Motor Grader
  • Our 722H motor grader adopts ShangChai engine with model SC11CB220G2B1.
  • The adopted hydraulic system can achieve efficient control over every working part.
  • The 6 forward and 3 reverse power-shift transmission features sing-handle and electro-hydraulic control, and ensures simple and convenient operation.
Download
Consulting Products Information
  • It is available with the hydraulic lock and auto lock/unlock NO-SPIN differential, providing stability and powerful traction.
  • Designed with perfect axel load allocation, the motor grader is applicable to hard surface cutting with excellent stability.
  • When combined with box-typed frame, the transmission system allows the vehicle to complete heavy-duty work.
  • The road grader is equipped with flexible blade suspension system and articulated frame, making it enjoy a wide working range.
Specifications of Motor Grader:
Basic specification
Engine model ShangChai SC11CB220G2B1
Rated power 162KW@2200rpm
Dimension(L×W×H) 9250×2600×3420（mm）
Operating weight(Standard) 16100KG
Performance specification
Travelling speed,forward 6.7/10.2/15.2/22.5/31.6/45.1
Travelling speed,reverse 6.7/15.1/31.3
Tractive force(f=0.75) 82.8KN
Operating specification
Max. steering angle of front wheels 49°
Max. lean angle of front wheels 17°
Max. oscillation angle of front axle 16°
Max. oscillation angle of balance box 13°
Frame articulation angle 26°
Min. turning radius using articulation 7.4m
Blade
Maximum lift above ground 450mm
Maximum grading depth 535mm
Maximum blade position angle 90°
Blade cutting angle 29°~77°
Circle reversing rotation 360°
Moldboard width × height 4320×580mm
