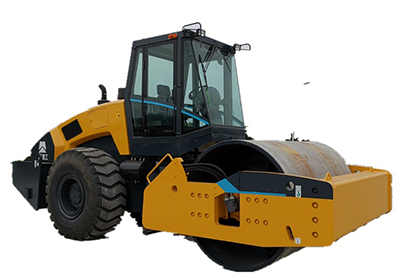

Single Drum Vibratory Roller GYS222

Single Drum Vibratory Roller GYS222
  • GYS222 single drum vibratory roller provides additional compaction by vibrating the roller drum at dual frequency while offering two vibration amplitudes. This extra compaction force allows the vibratory roll to compact tough roads.
  • Hydraulic cylinder comes with combination seal for reliable leak-free performance.
  • Driving cab is designed with operator safety and comfort in mind . Adjustable cab seat comes with a suspension system.
  • High-precision soil density gauge allows vibratory roller driver to accurately control the density of soil being compacted.
Download
Consulting Products Information
Specifications:
Model GYS222
Length×Width×Height(mm) 6503×2390×3250
Operating weight (Kg) 22000
Drum width (mm) 2150
Static linear pressure （N/cm） 509
Vibration frequency (Hz） 28/32
Centrifugal force（KN） 390/270
Traveling speed（km/h）
Forward 2.5/4.88/10.3
Reverse 2.47/4.9
Diesel engine WEICHAI WP6G190E301
Rated output(KW) 140
