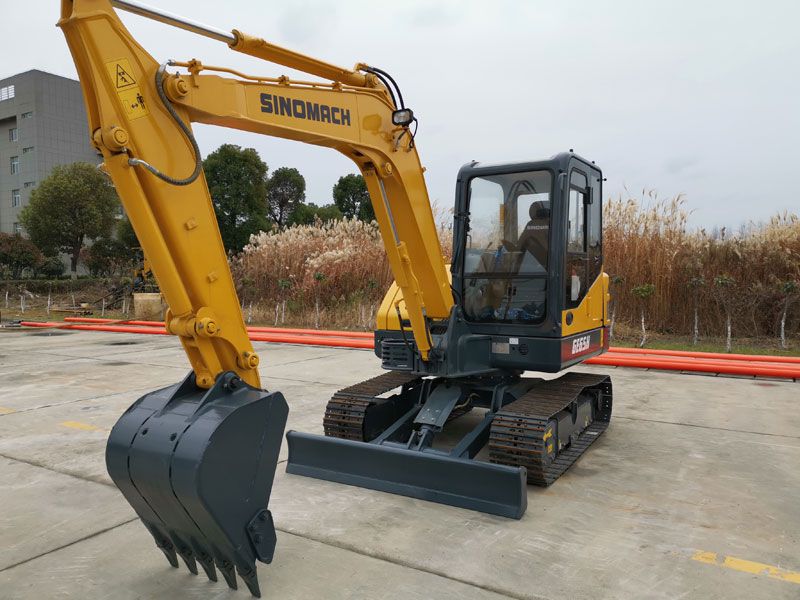

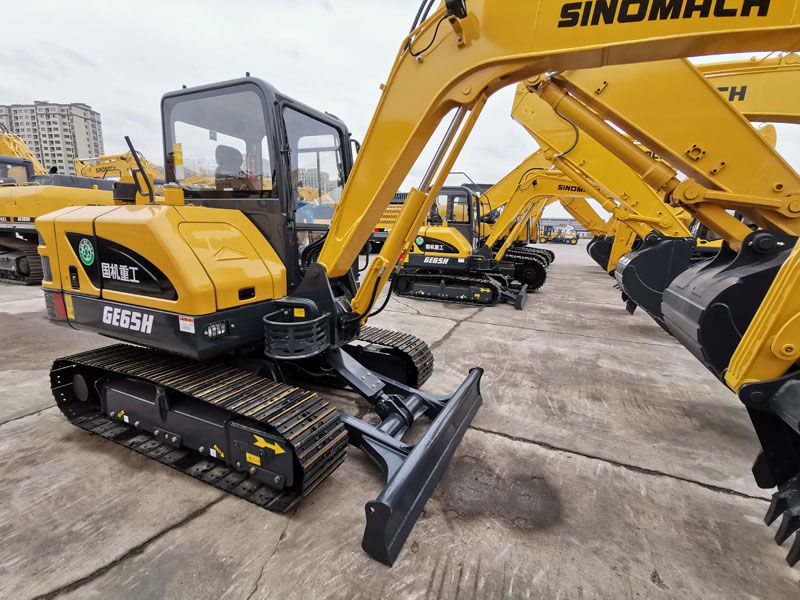

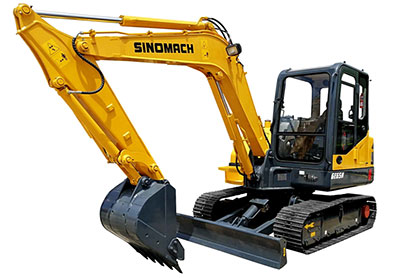

GE65H Crawler Excavator
- The GE65H crawler excavator comes with a newly designed hydraulic system, allowing the actuator of the complete machine to offer quick response.
- Compact structure of hydraulic components allows for reduced tubes and low failure rate, thus providing extremely high reliability and efficiency.
- The crawler digger is equipped with a priority valve for highly increased efficiency.
Consulting Products Information
- Using a real-time intelligent electronic monitoring system enables the excavator to be timely maintained.
- Fully-opened rear hood provides large space for convenient maintenance.
- Centralized lubrication system for easy maintenance
- Adjustable seat for much comfort
- Adopting an air-conditioning system offers a more comfortable operating environment.
Specifications of GE65H Excavator:
| Model | GE65H |
| Length×Width×Height(mm) | 5847×1940×2618 |
| Operating weight (Kg) | 6100 |
| Rated bucket capacity(m3) | 0.22 |
| Max.digging depth(mm) | 3844 |
| Max.digging radius(mm) | 6154 |
| Max.digging height(mm) | 5563 |
| Max.dumping height(mm) | 3796 |
| Bucket digging force(KN) | 43.5 |
| Stick digging force(KN) | 28.6 |
| Gradient capacity(%) | 58 |
| Diesel engine | YANMAR 4TNV94L |
| Rated output(KW) | 36.2 |
