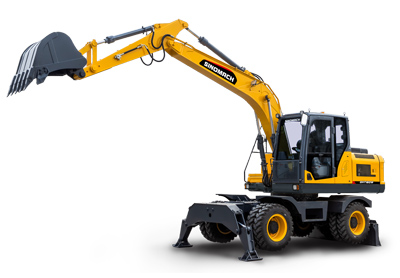

GHT160W is a new generation of fully hydraulic wheeled excavator developed independently. It adopts high-power, low fuel consumption and environment-friendly engine, which ensures strong power and power reserve. The high-precision hydraulic system is precisely matched with the bridge box, which ensures the randomness of working and sleeping states. The hydraulic system adopts advanced hydraulic components matching, which has the characteristics of high reliability, good quality, safety and environmental protection and comfort. Meanwhile, it can provide various special configurations, which can meet the needs of different industries and customers.
Specifications of GHT160W Wheeled Excavator
| Engine model | QSB3.9-C125-30 |
| Power | 93kW/2200rpm |
| Emission standard | Tier III |
| Type | 4-stroke diesel, turbocharged, water-cooled |
| Number of cylinders | 4 cylinder arrangement: inline |
| Displacement | 3.9 liters; direct fuel injection |
| Torque | 480N.m (48.95kgf.m) / 1350 rpm |
| Operating weight (kg) | 14500 |
| Bucket capacity (m³) | 0.6 |
| Dimensions | |
| Transportation length (mm) | 7900 |
| Transportation height (mm) | 3255 |
| Overall width (mm) | 2580 |
| Tail turning radius (mm) | 2395 |
| Track width (mm) | 1944 |
| Wheelbase (mm) | 2645 |
| Scope of work | |
| Max. excavation height (mm) | 8720 |
| Max. unloading height (mm) | 6300 |
| Max. excavation depth (mm) | 4865 |
| Max. excavation radius (mm) | 8060 |
| Ground clearance (mm) | 390 |
| Working parameters | |
| Hydraulic system pressure (Mpa) | 32 |
| Hydraulic system flow (L/min) | 2*130 |
| Boom length (mm) | 4600 |
| Stick length (mm) | 2200 |
| Bucket digging force (kN) | 102 |
| Stick digging force (kN) | 77 |
| Fuel tank capacity (L) | 220 |
| Hydraulic oil tank capacity (L) | 180 |
| Climbing slope (˚) | 35 |
| Rotation speed (r/min) | 13-14 |
| Max. traveling speed (km/h) | 30 |
| Bulldozer plate size (mm) | 2500*560 |
| Plate lifting height (mm) | 450 |
| Plate support height (mm) | 60 |
| Tire | 9.00-20 |
