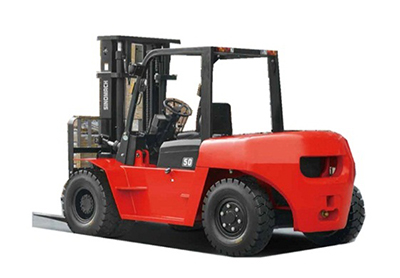

CPCD80 Diesel Forklift Truck

CPCD80 Diesel Forklift Truck
  • The CPCD80 series forklift comes with the latest appearance design. It has a great line, dynamic and stylish appearance.
  • Thanks to a large sized injection molded covering part, the forklift truck looks more elegant and user friendly.
  • Long wheelbase design ensures higher longitudinal stability and higher lifting capacity. Load on the real axle is reduced, extending the service life of steering wheel.
Download
Consulting Products Information
  • Due to the reduction of machine size, our diesel forklift has smaller turning radius and narrows the passage for right angle stacking, thus considerably improving warehouse use ratio and providing suitability for use in containers.
  • Japanese OKAMURA, NISSAN and Chinese HC transmissions are optional for the lift truck. They come with best in class structure and reliable performance. The OKAMURA type transmission features floating structure, ensuring a completely flexible connection between engine and forklift frame, thus minimizing machine vibration.
Technical Parameters of the Diesel Forklift:
General Product name Forklift truck
Basic model - CPCD80
Type - RG16 RG17 RG25 RW14 RW28
Power type - Diesel Diesel Diesel Diesel Diesel
Rated load kg 8000 8000 8000 8000 8000
Load center distance mm 600 600 600 600 600
Characteristics & Dimensions of Forklift Truck Lifting height mm 3000 3000 3000 3000 3000
Free lift height mm 200 200 200 200 200
Fork size L×W×T mm 1500×160×75 1500×160×75 1500×160×75 1500×160×75 1500×160×75
Fork spacing (Outside) Min./Max. mm 440×1950 440×1950 440×1950 440×1950 440×1950
Mast tilt range F/R degree 6/12 6/12 6/12 6/12 6/12
Fork overhang (Wheel center to fork surface) mm 705 705 705 705 705
Overall dimensions Length (To surface of fork) mm 3896 3896 3896 3896 3896
Overall width mm 2165 2165 2165 2165 2165
Mast closed height mm 2850 2850 2850 2850 2850
Mast extended height mm 4510 4510 4510 4510 4510
Overhead guard height mm 2540(2570*) 2540(2570*) 2540(2570*) 2540(2570*) 2540(2570*)
Turning radius (Outside) mm 3690 3690 3690 3690 3690
Min. width of right angle stacking aisle mm 3300 3300 3300 3300 3300
Min. width of right angle stacking aisle (Including load length and clearance) mm 6095 6095 6095 6095 6095
Performance of Forklift Truck Speed Travel speed km/h 0-26 0-26 0-26 0-26 0-26
Lifting speed (Full load) mm/sec 320 380 380 380 380
Max. gradeability (Full load) % 20 20 20 20 20
Dead weight kg 11300 11300 11300 11300 11300
Wheel& tires Tyre Front mm 9.00-20-14PR 9.00-20-14PR 9.00-20-14PR 9.00-20-14PR 9.00-20-14PR
Rear mm 9.00-20-14PR 9.00-20-14PR 9.00-20-14PR 9.00-20-14PR 9.00-20-14PR
Tread Front/Rear mm 1600/1700 1600/1700 1600/1700 1600/1700 1600/1700
Wheelbase mm 2500 2500 2500 2500 2500
Ground clearance mm 250 250 250 250 250
Battery Voltage/Capacity (5HR) V/Ah 2×12/90 2×12/90 2×12/90 2×12/90 2×12/90
Power & Transmission of Forklift Truck Engine Model - CY6102BG YC6B125 LR6M3 6BG1QP QSB4.5
Manufacturer - CHINA CHINA CHINA ISUZU CUMMINS
Rated output/rpm kW 81/2500 92/2200 92/2200 84.6/2200 82/2200
Rated torque/rpm N.m 353/1700 463/1400-1700 450/1400-1600 411/1400-1600 488/1500
Quantity of cylinder - 6 6 6 6 4
Bore×stroke mm 102×118 108×125 110×125 105×125 107×124
Emission standard - - - - - Stage IIIA/Tier3
Displacement cc 5785 6871 7120 6494 4460
Transmissions Fuel tank capacity L 120 120 120 120 120
Manufacturer - CHINA CHINA CHINA CHINA CHINA
Type - Power shift Power shift Power shift Power shift Power shift
Gear Forward-reverse - 2/2 2/2 2/2 2/2 2/2
Others Operating pressure For attachment MPa 19.5 19.5 19.5 19.5 19.5
1. Bespoke lifting height available.
2. This range of material handling equipment can be provided with attachment.
3. Data in the table is for standard model only. For further information, please contact us.
4. All specifications are subject to change without prior notice.
