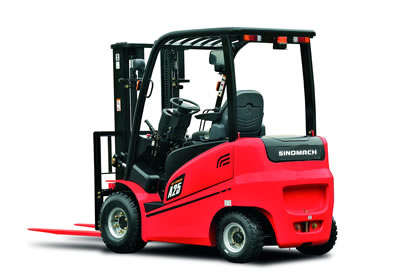

CPD20 Electric Forklift Truck
- Ergonomic design ensures more comfortable operation.
- Parking brake of the electric forklift truck is designed to the standards of ISO3691.
- Traditional color.
- Battery cover comes with a spring-like auto lock design, ensuring easier change of battery.
- Perfect electric lift truck with imported state of the art AC controller (new series).
Consulting Products Information
- It is easy for the battery powered forklift to replace battery due to a design option that the battery can be changed from its side.
- A lifting hook is designed to take out the battery and put it on the ground without having to use a trolley, thus saving cost.
- The lifting truck is designed with a big LED dashboard on which fault code is shown in English.
- A big rubber pad is also available.
Technical Parameters of the Electric Forklift Truck:
| General | 1.1 | Product name | - | Forklift truck |
| 1.2 | Type | - | CPD20 | |
| 1.3 | Drive mode | - | Electric (battery or mains) | |
| 1.4 | Operating mode | - | Operator seated | |
| 1.5 | Rated load | Q(kg) | 2000 | |
| 1.6 | Load centre distance | c(mm) | 500 | |
| 1.8 | Distance between drive axle center and fork | x(mm) | 455 | |
| 1.9 | Wheelbase | y(mm) | 1485 | |
| Weight of forklift truck | 2.1 | Dead weight | kg | 3700 |
| 2.2 | Axle load (Full load)(F/R) | kg | 5016/684 | |
| 2.3 | Axle load (No load)(F/R) | kg | 1628/2072 | |
| Tyre & chassis | 3.1 | Tyre | - | Pneumatic |
| 3.2 | Tyre size (Front) | - | 23×9-10 | |
| 3.3 | Tyre size (Rear) | - | 18×7-8 | |
| 3.5 | Quantity of tyre (F/R)(x=driven wheels) | - | 2×/2 | |
| 3.6 | Tread (Front) | b10(mm) | 1058 | |
| 3.7 | Tread (Rear) | b11(mm) | 960 | |
| Dimensions of forklift truck | 4.1 | Tilt angle of mast (Forward/backward) | - | 5/10 |
| 4.2 | Mast closed height | h1(mm) | 2070 | |
| 4.3 | Free lifting height | h2(mm) | 140 | |
| 4.5 | Lifting height | h3(mm) | 3000 | |
| 4.6 | Mast extended height | h4(mm) | 4040 | |
| 4.7 | Overhead guard height (Standard) | h6(mm) | 2075 | |
| 4.8 | Height of higher overhead guard (Optional) | h6(mm) | 2155 | |
| 4.9 | Seat height | h7(mm) | 1070 | |
| 4.12 | Coupler height | h10(mm) | 303 | |
| 4.19 | Overall length | I1(mm) | 3412 | |
| 4.20 | Length (To surface of fork) | I2(mm) | 2342 | |
| 4.21 | Overall width | b1(mm) | 1265 | |
| 4.22 | Fork dimensions | S/e/l(mm) | 40/122/1070 | |
| 4.23 | Fork mounting bracket standard | - | ISO2328 2A | |
| 4.24 | Fork carrier width | b3(mm) | 1038 | |
| 4.25 | Distance between fork arms | b5(mm) | 260/1038 | |
| 4.31 | Ground clearance (From the bottom of mast)(Full load) | m1(mm) | 112 | |
| 4.32 | Ground clearance (From centre of wheelbase) | m2(mm) | 120 | |
| 4.33 | Aisle width for pallets of 1000×1200 (Pallet placed across fork) | Ast(mm) | 3745 | |
| 4.34 | Aisle width for pallets of 800×1200 (Pallet placed across fork) | Ast(mm) | 3945 | |
| 4.35 | Turning radius | Wa(mm) | 2090 | |
| 4.36 | Internal turning radius | b13(mm) | 730 | |
| Performance data of forklift truck | 5.1 | Travel speed (Full load/no load) | km/h | 14/14 |
| 5.2 | Lifting speed (Full load/no load) | mm/s | 280/440 | |
| 5.3 | Lowering speed (Full load/no load) | mm/s | 285/420 | |
| 5.5 | Drawbar pull (Full load/no load) | N | 12000/12500 | |
| 5.6 | Max. drawbar pull (Full load/no load) | N | 14000 | |
| 5.7 | Gradeability (Full load/no load) | % | 11/12 | |
| 5.8 | Max. gradeability (Full load/no load) | % | 13/14 | |
| 5.9 | Acceleration time (Full load/no load) (0-10m) | S | 5.2/4.6 | |
| 5.10 | Service brake | - | Hydraulic | |
| 5.11 | Parking brake | - | Mechanical | |
| Electric engine of forklift truck | 6.1 | Drive motor rating S2 60min | kW | 11 AC |
| 6.2 | Lift motor rating at S3 15% | kW | 8.6 DC | |
| 6.3 | Battery voltage/rated capacity K5 | V/Ah | 48/630 | |
| 6.4 | Battery weight | kg | 1050 | |
| 6.5 | Battery dimensions | l/b/h(mm) | 1028×570×780 | |
| 6.6 | Energy consumption (according to VDI test cycle) | kWh/h | 5.0 | |
| 6.7 | Max. battery weight | kg | 930 | |
| 6.8 | Min. battery weight | kg | 1200 | |
| Others | 7.1 | Type of drive control | - | MOSFET/AC |
| Manufacturer | - | CURTIS | ||
| Type | - | 1236+1253 | ||
| 7.2 | Operating pressure for attachments | bar | 175 | |
| 7.3 | Oil flow for attachments | L/min | 65 | |
| 7.4 | Noise grade according to EN/DIN 12 053 | db(a) | 73 | |
| 7.5 | Coupler for towing (Type DIN) | - | Φ24 Pin | |
| 8.1 | Hydraulic tank capacity | liter(gal) | 22 |
Besides the CPD20-AC3 electric forklift truck, SINOMACH have many other kinds of heavy construction and engineering equipment for sale.
Brief Description
SINOMACH as a reliable heavy equipment company in China, is making construction equipment for road construction and foundation engineering with decades of experience, SINOMACH has been a high quality heavy equipment maker in China and provide construction equipment and engineering vehicle with resonable prices.
