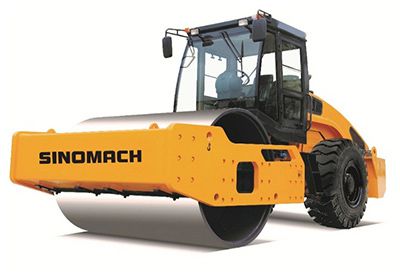

Single Drum Vibratory Roller GYS14

Single Drum Vibratory Roller GYS14
  • GYS14 single drum vibratory roller provides additional compaction by vibrating the roller drum at one single frequency while offering two vibration amplitudes. This extra compaction force allows the vibratory roll to compact tough roads.
  • Hydraulic cylinder comes with combination seal for reliable leak-free performance.
  • Driving cab is designed with operator safety and comfort in mind. Adjustable cab seat comes with a suspension system.
  • High-precision soil density gauge allows vibratory roller driver to accurately control the density of soil being compacted.
Download
Consulting Products Information
Specifications of GYS14 Single Drum Road Roller:
Model GYS14
Length×Width×Height(mm) 6140×2280×3080
Operating weight (Kg) 14000
Drum width (mm) 2130
Static linear pressure （N/cm） 320
Vibration frequency (Hz） 30
Centrifugal force（KN） 305/150
Traveling speed（km/h）
Forward 2.0/4.0/8.7
Reverse 2.0/4.0
Diesel engine WEICHAI WP4G110E221
Rated output(KW) 82
