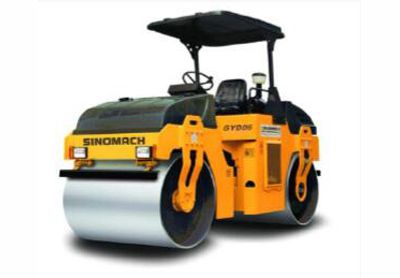

Road Roller GYD06

Road Roller GYD06
  • Mechanical drive, two-speed gears.
  • Hydraulic vibration, manual start up, with great exciting force and high compacting efficiency.
  • Hydraulic steering, articulated frame for flexible operation.
  • Equipped with electric control pressurized water spraying system, high volume anti-corrosive water tank.
  • Equipped with imported famous brand hydraulic components with reliable performance.
Download
Consulting Products Information
Technical Specification:
Model GYD06
Length×Width×Height(mm) 3660×1550×2630
Operating weight (Kg) 6000
Drum width (mm) 1320
Static linear pressure （N/cm） 260
Vibration frequency (Hz） 46
Centrifugal force（KN） 60
Traveling speed（km/h）-Forward 2.5/7.5
Traveling speed（km/h）-Reverse 2.5/7.5
Diesel engine CHANGCHAI 4L68
Rated output(KW) 40

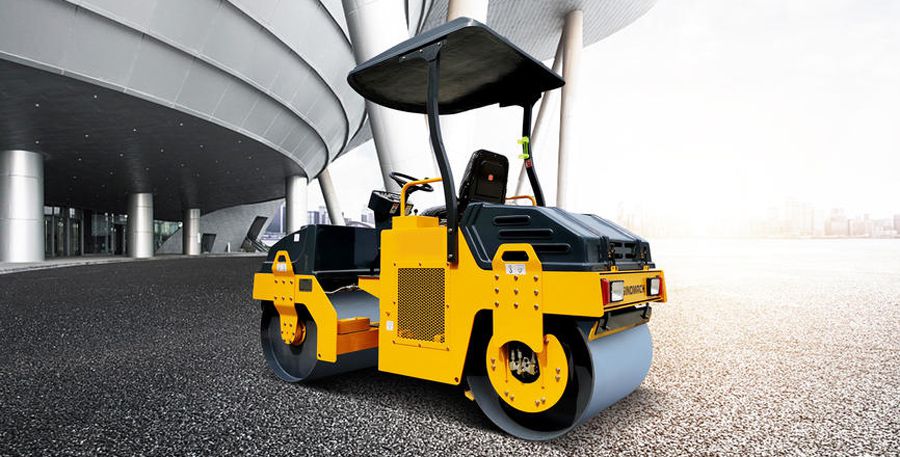

VR View
