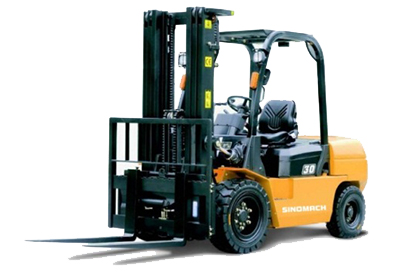

CPCD50 Diesel Forklift Truck

CPCD50 Diesel Forklift Truck
  • State of the art appearance design; streamline, dynamic and stylish appearance.
  • Large sized injection molded covering part makes the forklift truck more elegant and user friendly.
  • Commonly used material handling machinery with long wheelbase design, ensuring higher longitudinal stability and higher lifting capacity; reduced load on the real axle extends steering wheel’s lifespan.
Download
Consulting Products Information
  • In virtue of reduction of the whole machine size, our diesel forklift can dramatically increase warehouse use ratio.
  • Japanese OKAMURA, NISSAN and Chinese HC transmissions are optional for the lift truck. They come with best in class structure and reliable performance. Among which, the OKAMURA type transmission features the state of the art floating structure, ensuring completely flexible connection between engine and forklift frame, thus minimizing machine vibration.
Technical Parameters of the Diesel Forklift:
General Product name Forklift truck
Basic model - CPCD50
Type - RG41 RW14 RW14B RW38 RW38B RW19A RW28
Power type - Diesel
Rated load kg 5000
Load center distance mm 600
Dimensions of Forklift Truck Lifting height mm 3000
Free lift height mm 160
Fork size L×W×T mm 1200×150×60
Fork spacing (Outside) Min./Max. mm 300/1700
Mast tilt angle F/R degree 6/12
Fork overhang (Wheel center to fork surface) mm 595.5
Overall dimensions Length (To surface of fork) 3510 3460 3510
Overall width mm 1990
Mast closed height mm 2500
Mast extended height mm 4420
Overhead guard height mm 2340(2370*)
Turning radius (Outside) mm 3210 3160 3210
Min. width of right angle aisle mm 2830 2780 2830
Min. width of right angle stacking aisle (Including load length and clearance) mm 3820 3770 3820
Performance of Forklift Truck Speed Travel speed km/h 26 23 26 23 26 29 22
Lifting speed (Full load) mm/sec 405 405 406 410 405
Max. gradeability (Full load) % 20
Dead weight kg 8000
Wheel & Tire Tyre Front mm 8.25-15-14PR
Rear mm 8.25-15-14PR
Tread Front/Rear mm 1489/1460
Wheelbase mm 2300 2250 - 2300
Ground clearance mm 170
Battery Voltage/Capacity (5HR) V/AH 2×12/90
Power & Transmission of Forklift Truck Engine Model - YC4A115Z 6BG1QP QSB3.3 TD42AA QSB4.5
Manufacturer - CHINA,YUCHAI ISUZU CUMMINS UD CUMMINS
Rated output/rpm kW 85/2200 84.6/2200 74/2200 59/2300 82/2200
Rated torque/rpm N.m 425/1500 411/1500 415/1600 254/1800 488/1500
Quantity of cylinder 4 6 4 6 4
Bore×stroke mm 108×130 105×125 95×115 96×96 107×124
Emission standard - - - Stage IIIA/Tier3 - Stage IIIA/Tier3
Displacement cc 4836 6494 3300 4169 4460
Transmissions Fuel tank capacity L 120
Manufacturer - CHINA CHINA OKAMURA CHINA OKAMURA NISSAN CHINA
Type - Power shift
Gear Forward/reverse - 2/2 1/1 2/2 1/1 1/1 1/1 2/2
Others Operating pressure For attachment MPa 19
1. The lifting height of the forklift truck can be customized based on customer demand.
2. Attachment is available with this heavy duty forklift.
3. Data in the table is for standard fork lift only. Customer is welcomed to contact us for more detail.
4. All specifications for the material handling equipment are subject to change without prior notice.

Besides the CPCD50 diesel forklift truck, SINOMACH have many other kinds of heavy construction and engineering equipment for sale.
