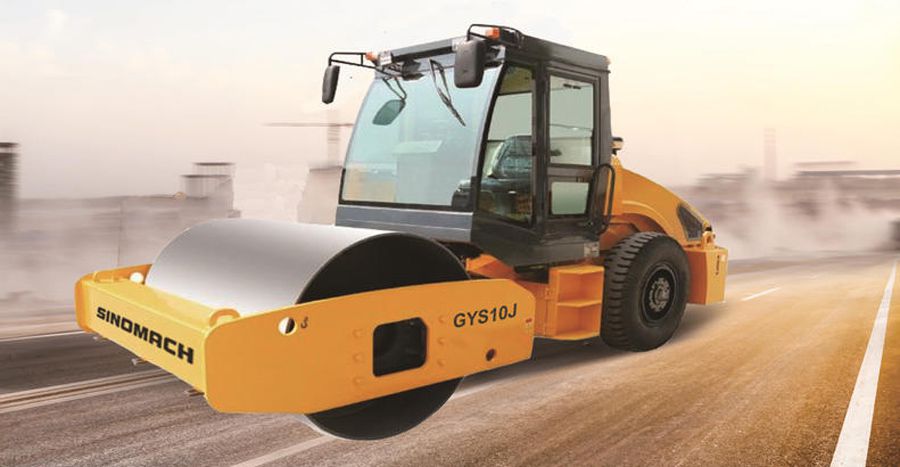

Road Roller GYS10

Road Roller GYS10
  • Mechanical drive, three speed drive
  • Hydraulic vibration, with super compaction performance；electronic control delay vibrate with smooth transition
  • Hydraulic steering, articulated frame with flexible steering and operation
  • Adopt specific gearbox with synchronizer, big transmission torque, easy to shift gear
Download
Consulting Products Information
  • Gas-assisted hydraulic clamp disc service brake , internal expanding drum mechanical parking brake, safe and reliable
  • Rear engine cover can be turned up for big angle for convenient maintenance
  • Equipped with famous brand hydraulic components with reliable performance
Specifications:
Model GYS10
Length×Width×Height(mm) 5450×2160×3010
Operating weight (Kg) 10000
Drum width (mm) 1980
Static linear pressure （N/cm） 230
Vibration frequency (Hz） 30
Centrifugal force（KN） 225/105
Traveling speed（km/h）
Forward 2.0/4.2/8.7
Reverse 2.0/4.2
Diesel engine WEICHAI WP4G110E211
Rated output(KW) 82
