Technical Specification:

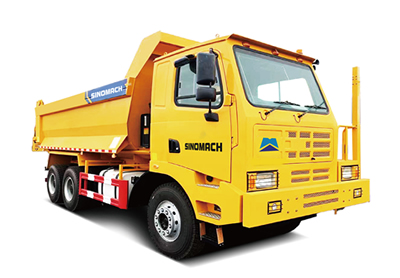

| Model | GKM45P |
| Engine | WEICHAI 340 HP |
| Gearbox | FAST RTD11509C |
| Front Axle Capacity (t) | 9 |
| Drive Axle Capacity (t) | 16+16 |
| Lifting System | Front Lifting Cylinder |
| Tire | 12.00 R20 |
| Standard Bucket Capacity (m³) | 19 |
| Drive Mode | 6×4 |
| Curb Weight (t) | 15 |
| Rated Payload Capacity (t) | 30 |
| Maximum Gross Machine Weight (t) | 45 |
| Overall Dimension (L×W×H) (mm) | 8750×2560×3450 |
| Inner Dimension of Container (L×W×H) (mm) | 5400×2350×1500 |
| Maximum Speed (km/h) | 70 |
| Maximum Gradeability (%) | 30 |
| Minimum Turning Radius (m) | 8 |
| Minimum Ground Clearance (mm) | 314 |
| Braking System | SORL System |
Gallery
Brief Description
SINOMACH as a reliable heavy equipment company in China, is making construction equipment for road construction and foundation engineering with decades of experience, SINOMACH has been a high quality heavy equipment maker in China and provide construction equipment and engineering vehicle with resonable prices.
