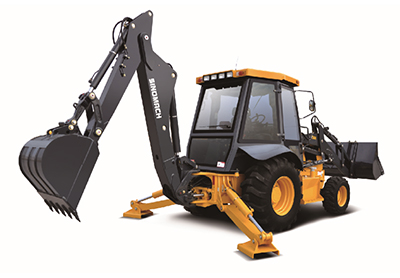

630A Backhoe Loader

630A Backhoe Loader
Features of Backhoe Loader 630A:
  • Equipped with WD DETUZ engine
  • 4 forward & 4 reverse synchromesh mechanical shift transmission
  • Combined seal cylinder obtains high seal performance and more reliability
  • Improved loader and backhoe performance
Download
Consulting Products Information
  • CARRARO wet type rear axle with multi-disc brake& CARRARO front axle
  • New-type cab with more space, increases comfort and visibility
  • With 2 wheel driving or 4 wheel driving for option
Specifications of Backhoe Loader 630A:
Model 630A
Diesel Engine WEICHAI WP4.1G95E211
Cummins 4BTA3.9-C110
WEICHAI WP4.1G100E311
Front Type 12.5-16NHS-12PR(4WD)/11L-16F3-12PR(2WD)
Rear Type 19.5L-24R4-12PR
Rated Power 70/82/74kW
Rated Speed 2200rpm
Rated Loading bucket capacity 1m³
Rated load 1700kg
Max.dumping reach 845mm
Max.dumping clearance 2714mm
Max. loading breakout force ＞60kN
Rated digging bucket capacity 0.3m³
Max. digging depth 4405mm
Max. digging force 50±10%kN
Max. digging radius 5481mm
Max. dumping height 3737mm
Hydraulic system 110L
Fuel tank 151L
Transmission 18.5L

Besides the 630A backhoe loader, Sinomach have many other kinds of heavy equipment and engineering vehicle for sale.
Sinomach as an experienced heavy equipment company in China, is making construction equipment for road construction and building construction, as a leading manufacturer in heavy equipment industry.

Gallery
  • Images

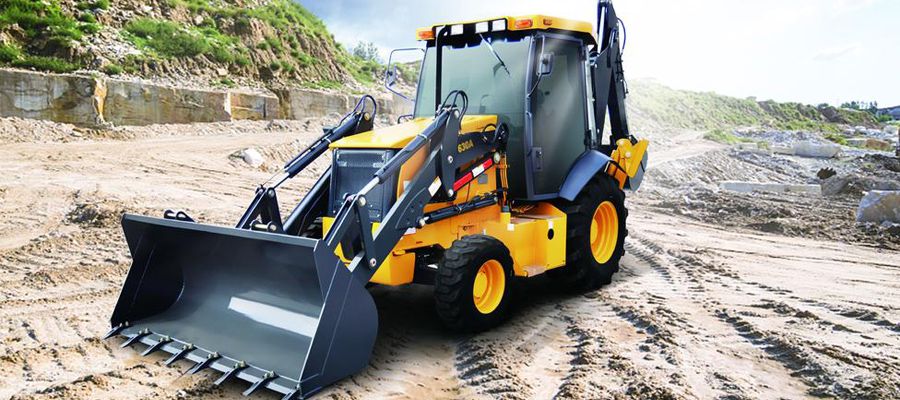

  • VR View

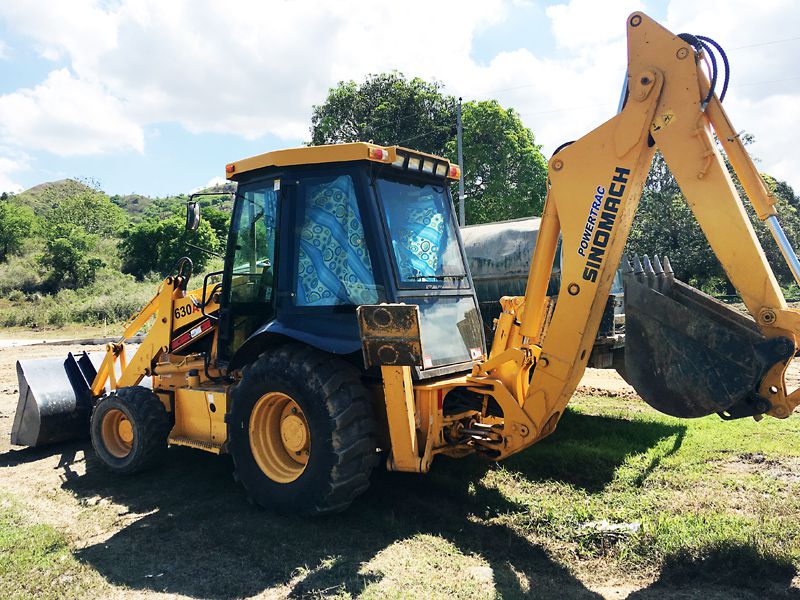

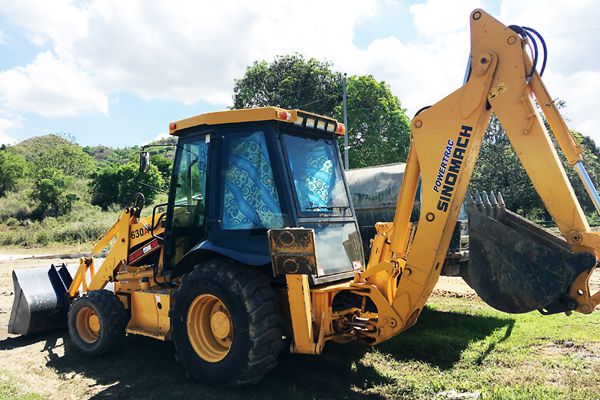

630A Backhoe Loader

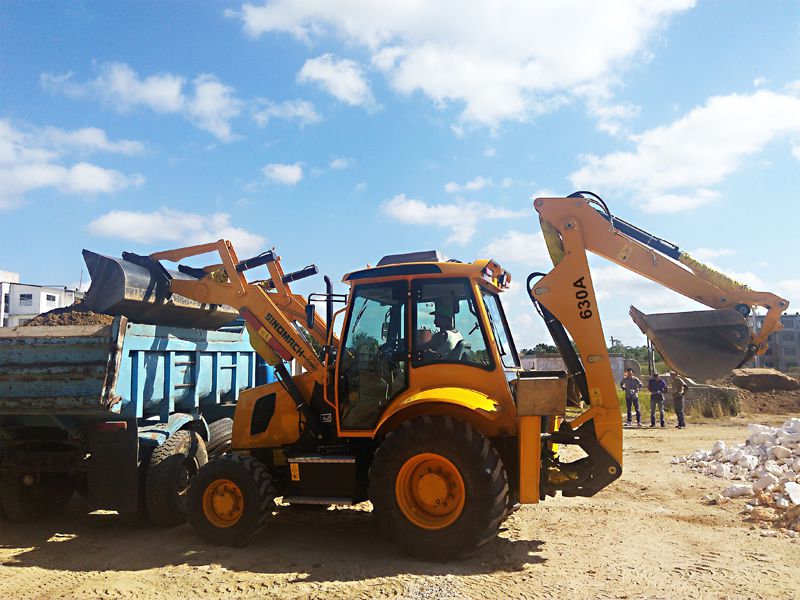

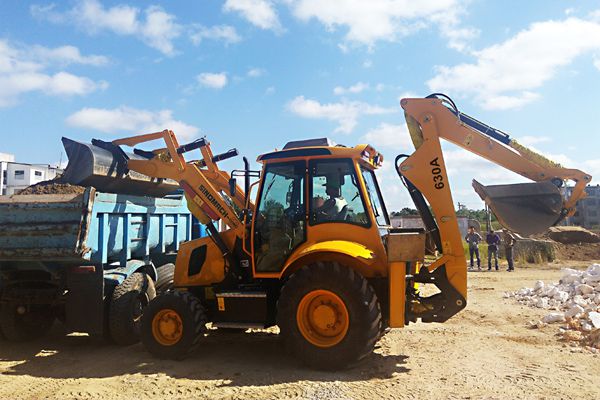

630A Backhoe Loader
630A Backhoe Loader
