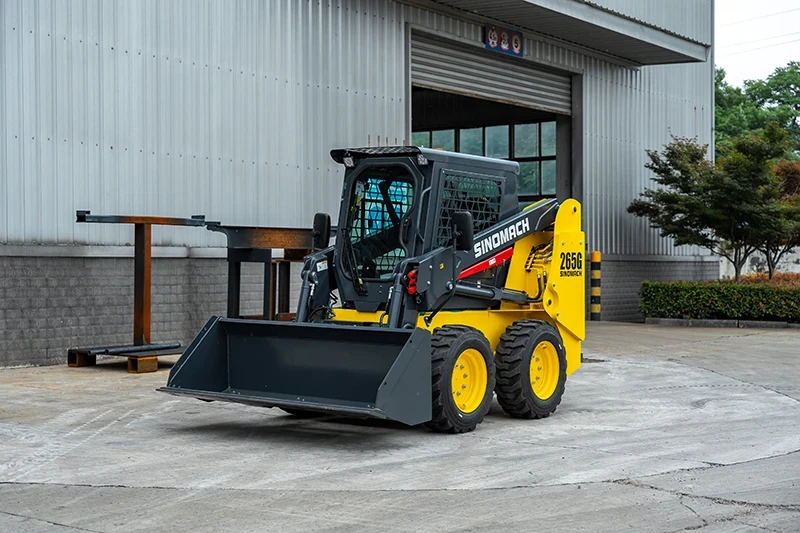

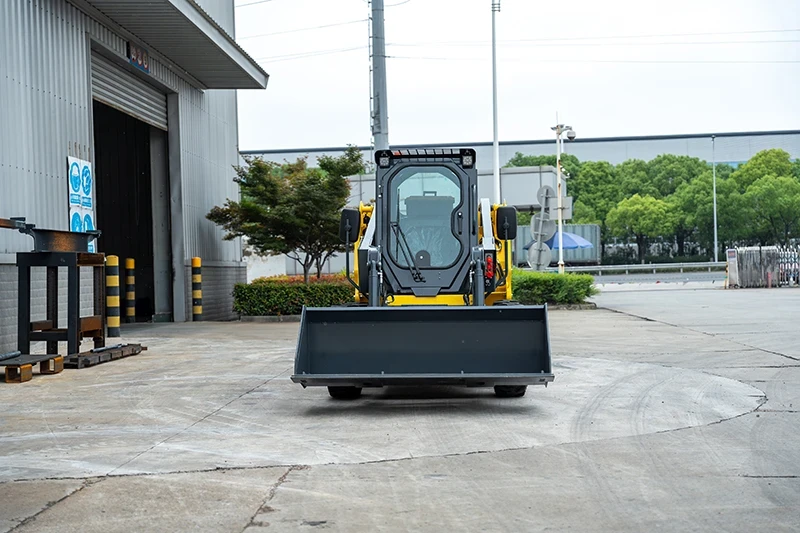

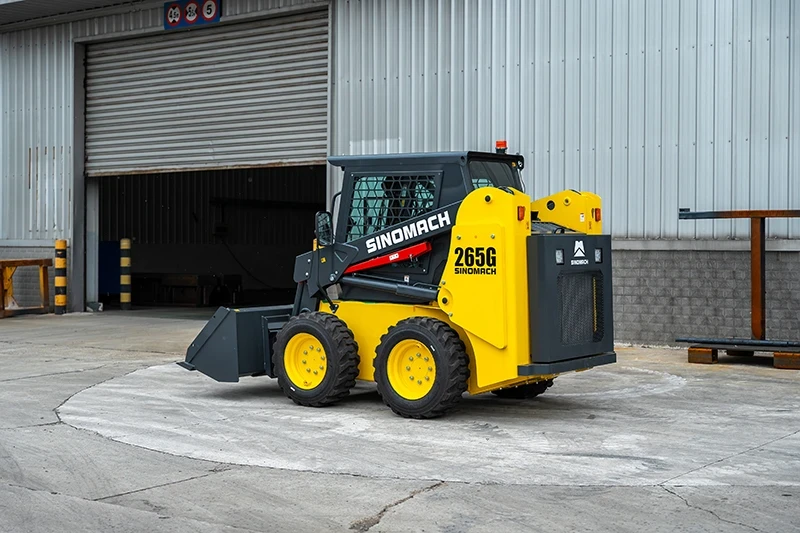

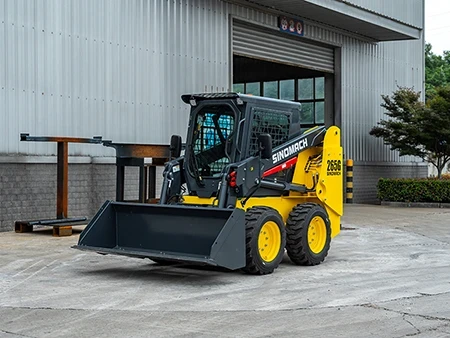

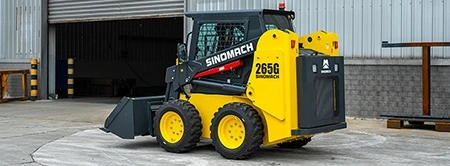

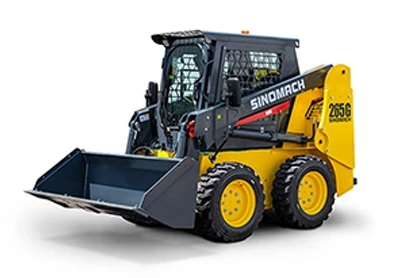

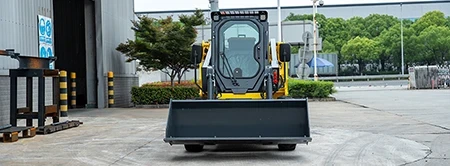

265G Skid Steer Loader
Video
This skid steer loader combines compact dimensions with wheeled maneuverability, making it ideal for material handling and various tasks in confined workspaces. Its independently controlled left and right wheels enable a tight turning radius and in-place pivoting by adjusting wheel speed and direction. With overall dimensions of 3,220 × 1,820 × 2,000 mm, it offers a practical solution for operations with limited space.
Designed for diverse applications, the loader is suitable for urban construction, municipal maintenance, agriculture, industrial logistics, port operations, and emergency response. Its skid-steer configuration and versatile attachments ensure the ability to perform multiple tasks with a single machine.
Consulting Products Information
Technical specification
| Parameter | Specification | |||
| Kubota | Xinchai | |||
| BASIC | Operating Weight (kg) | 2900 | ||
| Rated operating capacity (kg) | 899 | |||
| Bucket capacity (m3) | 0.48 | |||
| Tipping load (kg) | 1600 | |||
| Breakout force (kN) | 20.3 | |||
| Traction force (kN) | 18.9 | |||
| L×W×H (mm) | 3220×1820×2000 | |||

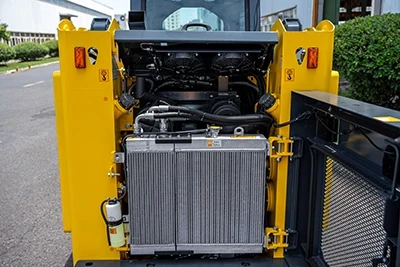

| ENGINE | Engine model | V2403-M-DI | A498BT1-75 | |
| Rated power / speed (kW/rpm) | 36/2500 | 36.7/2500 | ||
| Displacement (L) | 3.168L | |||
| Fuel consumption (L/h) | 10 | 10.6 | ||
| Stroke (mm) | 98 | |||
| Bore (mm) | 105 | |||
| Emission standard | EU Stage ⅢA | China Stage Ⅱ | ||
| HYDRAULIC SYSTEM | Standard hydraulic flow at 2500rpm (L/min) | 74 | ||
| Control type | Mechanical servo control | |||
| Standard hydraulic pressure (MPa) | 21 | |||
| DRIVETRAIN | Travel speed, forward/reverse (km/h) | 11.5 | ||

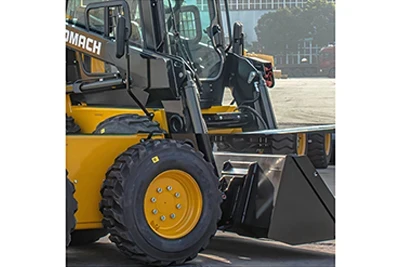

| Tire size | 12-16.5 NHS | |||
| ELECTRICAL SYSTEM | Voltage (V) | 12 | ||
| Battery capacity (Ah) | 120 | |||
| SERVICE REFILL CAPACITY | Chain case, each side (L) | 9 | ||
| Cooling system (L) | 12 | |||
| Engine crankcase (L) | 8 | |||
| Fuel tank (L) | 83 | |||
| Hydraulic tank (L) | 65 | |||

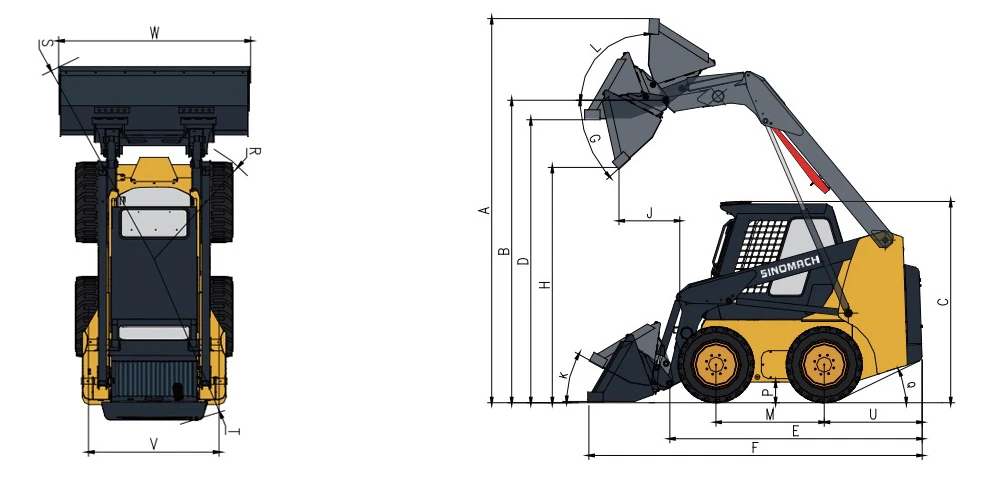

| DIMENSIONS | ||||
| A | Max. operation height (mm) | 3750 | ||
| B | Bucket hinge pin height (mm) | 2920 | ||
| C | Height to top of cab (mm) | 2000 | ||
| D | Height with bucket level (mm) | 2730 | ||
| E | Length without attachment (mm) | 2420 | ||
| F | Length with standard bucket (mm) | 3220 | ||
| H | Dumping clearance (mm) | 2260 | ||
| J | Dump reach (mm) | 640 | ||
| M | Wheelbase (mm) | 1050 | ||
| P | Ground clearance (mm) | 210 | ||
| R | Front turning radius without attachment (mm) | 1200 | ||
| S | Front turning radius (mm) | 2010 | ||
| T | Rear turning radius (mm) | 1520 | ||
| U | Tail length (mm) | 960 | ||
| V | Wheel center-to-center distance (mm) | 1240 | ||
| W | Bucket width (mm) | 1820 | ||
| G | Dump angle at max. height | 40° | ||
| K | Bucket angle at ground level | 28° | ||
| L | Bucket rollback angle at max. height | 94° | ||
| Q | Starting angle | 27° | ||
Features
-
-
Multiple Engine Options
Available in multiple engine options to meet different market requirements, including:
- Xinchai
- Kobuta
- Xinchai (EU Stage V)
-
- Versatile Attachment System A quick-attach system with auxiliary hydraulics allows operators to switch between more than 10 types of attachments, including buckets, forks, sweepers, and augers, to accommodate different working requirements.
-

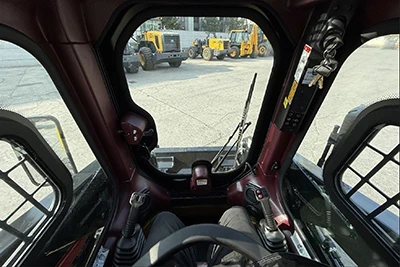

- ROPS/FOPS-Tested Cab The spacious cab has undergone ROPS and FOPS testing for operator protection and is designed to provide a comfortable working environment.
Gallery
Inquiry
Compare Against Other Products
-
- 265F Rated output (kW): 48
Rated bucket capacity (m³): 0.5
Operating weight (kg): 3200
-

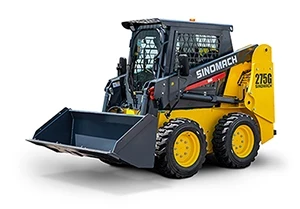

- 275G Operating weight(Kg): 3500
