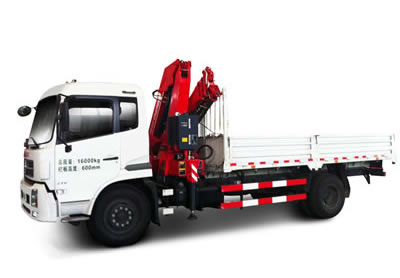

SQ6.3Z3Q Truck Mounted Crane (Straight Boom Crane)

SQ6.3Z3Q Truck Mounted Crane (Straight Boom Crane)
  • This SQ6Z3Q truck mounted crane is a folding boom crane with three-point axles.
  • Worm gear reducer enables our lifting equipment to rotate 360°.
  • The truck mounted crane adopts manual horizontal outriggers with full span of 5m.
  • Designed with hexagon sections and constructed with two welding joints, our material handling device has excellent lateral stability.
Download
Consulting Products Information
  • Its folding boom endows this heavy engineering machinery with a wider working range not at the expense of the available area of the cargo compartment.
  • The external telescopic oil cylinder of our truck mounted crane is of reliable performance and is space saving.
  • Moment limiter is optional to be configured to our folding boom hoist to provide a safer working environment for the operator.

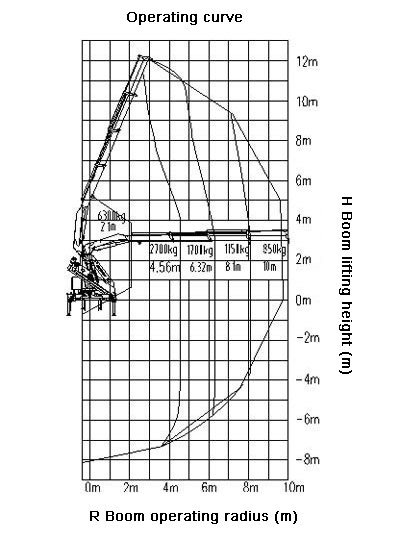

Technical Parameters of Truck Mounted Crane:
Order Item Unit Parameter
1 Maximum load moment kN·m 138
2 Maximum lifting load kg 6300
3 Maximum working height mm 10100
4 Boom length (fully retracted) mm 2500
6 Maximum lifting height (from the ground) mm About 12800
7 Maximum elevation angle of boom (°) 67
8 Minimum elevation angle of boom (°) -53
9 Lateral span of the front outrigger mm 2200~5240
10 Rotation speed r/min ≤2
11 Rotation angle ° 360° full rotation
12 Crane weight kg 2400
13 Fuel pump ------------- Plunger pump
14 Fuel tank capacity L 100
15 Working pressure of hydraulic system MPa 28
16 Flow of hydraulic system L/min 25

Welcome to choose SINOMACH construction machinery (engineering vehicle/construction equipment).
Besides the SQ6.3Z3Q model truck mounted crane, SINOMACH have many other kinds of heavy construction and engineering equipment for sale.

Brief Description

SINOMACH as a reliable heavy equipment company in China, is making construction equipment for road construction and foundation engineering with decades of experience, SINOMACH has been a high quality heavy equipment maker in China and provide construction equipment and engineering vehicle with resonable prices.
