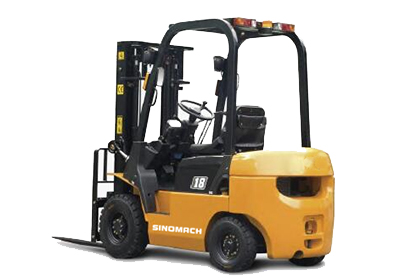

CPCD30 Diesel Forklift Truck

CPCD30 Diesel Forklift Truck
  • This series diesel forklift adopts the up to date appearance design, featuring streamline, dynamic and stylish appearance.
  • Large sized covering part made by injection molding process makes the lift truck more elegant and user friendly.
  • Owing to long wheelbase design, the lifting equipment comes with higher longitudinal stability and more than 100kg lifting weight higher than the original forklift truck at the same lifting height. Additionally, the load on the real axle is reduced, extending the service life of steering wheel.
Download
Consulting Products Information
  • Reduction of front and rear overhang size ensures smaller turning radius and lower width of passage for right angle stacking, thus improving warehouse use ratio.
  • The diesel forklift is available in Japanese OKAMURA, NISSAN and Chinese HC transmissions that come with best in class structure and reliable performance. Amongst these transmissions, the OKAMURA type adopts the state of the art floating structure, ensuring completely flexible connection between engine and forklift frame, thus minimizing vibration.
Technical Parameter:
General Product name Forklift truck
Basic model CPCD30
Type RW6 RW6B RW10 RW10B RW13 RW15A RW27 RW32 RW33 RW33B RG2 RG5
Power type Diesel Diesel Diesel Diesel Diesel Diesel
Rated load(kg) 3000 3000 3000 3000 3000 3000
Load center distance(mm) 500 500 500 500 500 500
Characteristics & Dimensions of Forklift Truck Lifting height(mm) 3000 3000 3000 3000 3000 3000
Free lift height(mm) 145 145 145 145 145 145
Fork size(mm) L×W×T 1070×122×45 1070×122×45 1070×122×45 1070×122×45 1070×122×45 1070×122×45
Mast tilt angle(°) F/R 6/12 6/12 6/12 6/12 6/12 6/12
Fork overhang (Wheel center to fork face)(mm) 480 480 480 480 480 480
Rear overhang(mm) 510 510 510 510 510 510
Overall dimensions(mm) Length (To surface of fork) 2750 2750 2750 2750 2750 2750
Overall width 1225 1225 1225 1225 1225 1225
Mast closed height 2010 2010 2010 2010 2010 2010
Mast extended height 4140 4140 4140 4140 4140 4140
Overhead guard height 2170 (2230*) 2170 (2230*) 2170 (2230*) 2170 (2230*) 2170 (2230*) 2170 (2230*)
Turning radius (Outside) (mm) 2375 2375 2375 2375 2375 2375
Min. width of right angle stacking aisle (Including load length and clearance) (mm) 2855 2855 2855 2855 2855 2855
Performance Speed Travel speed (No load)( km/h) 19 19 18.5 18 18 18 20 20 19
Lifting speed (Full load)( mm/sec) 460 380 460 410 430 500 460 460 430
Lowering speed (Full load) ( mm/sec) 500 500 500 500 500 500
Max. drawbar pull (Full load)(N) 27000 18400 24600 23100 24500 17600 23600 20700 20300 19500
Max. gradeability (Full load) (%) 25 15 25 20 25 15 15 20 20 18
Chassis of Forklift Truck Tyre(mm) Front 28×9-15-12PR 28×9-15-12PR 28×9-15-12PR 28×9-15-12PR 28×9-15-12PR 28×9-15-12PR
Rear 6.50-10-10.PR 6.50-10-10.PR 6.50-10-10.PR 6.50-10-10.PR 6.50-10-10.PR 6.50-10-10.PR
Tread(mm) Front 1005 1005 1005 1005 1005 1005
Rear 973.5 973.5 973.5 973.5 973.5 973.5
Wheelbase(mm) 1760 1760 1760 1760 1760 1760
Ground clearance Lowest point 130 130 130 130 130 130
Wheelbase center 175 175 175 175 175 175
Weight Dead weight(kg) 4255 4255 4255 4255 4255 4255
Weight distribution Full load F/R 6480/775 6480/775 6480/775 6480/775 6480/775 6480/775
No load F/R 1765/2490 1765/2490 1765/2490 1765/2490 1765/2490 1765/2490
Power & Transmission of Forklift Truck Battery(V/Ah) Voltage/Capacity (20HR) 12/90 12/90 12/90 12/90 12/90 12/90
Engine Model 4TNV94L C240PKJ-30 4JG2 PE-01 TD27 A498BT1 4TNE92-HRJ 4TNE98-BQFLC C490BGP A490BGP
Manufacturer YANMAR ISUZU ISUZU UD XINCHAI YANMAR YANMAR XINCHAI
Rated output/rpm(kW) 43/2500 34.5/2500 46/2450 38.5/2300 36.8/2400 32.8/2450 44.3/2300 40/2650 37/2650
Rated torque/rpm(N.m) 205/1000 137.7/1800 186/1700 160/2300 186/1700 149.4/1600 206/1700 162/1800-2000 148/1900
Quantity of cylinder 4 4 4 4 4 4
Bore×stroke(mm) 94×110 86×102 95.4×107 96×92 98×105 92×100 98×110 90×105 98×105
Emission standard Stage II/Tier2 Stage IIIA Stage II E-MARK III Stage IIIA/Tier4 Interim Stage IIIA/Tier3 -
Displacement(cc) 3054 2369 3059 2663 3168 2659 3319 2670 3168
Fuel tank capacity(L) 70 70 70 70 60 60 60 70
Transmissions Manufacturer CHINA OKAMURA CHINA OKAMURA CHINA CHINA CHINA CHINA CHINA OKAMURA CHINA
Type Power shift Power shift Power shift Power shift Power shift Power shift Power shift Power shift Power shift Power shift Power shift Power shift
Gear Forward/reverse 1/1 1/1 1/1 1/1 1/1 1/1 1/1 1/1 1/1 1/1 1/1 1/1
Others Operating pressure For attachments(MPa) 17.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5

Note: *With suspension seat or cabin.

  • The lifting height of the forklift truck can be customized. (2-stage mast: 2.5m, 2.7m, 3.0m, 3.3m, 3.6m, 4m, and 4.5m. 3-stage mast: 4.3m, 4.5m, 4.8m, 5m, 5.5m, and 6m.)
  • Attachment is available with this industrial forklift.
  • Data in the table is for standard model only. Please contact us for more details related to the warehouse equipment.
  • All specification for the material handling equipment is subject to change without prior notice
