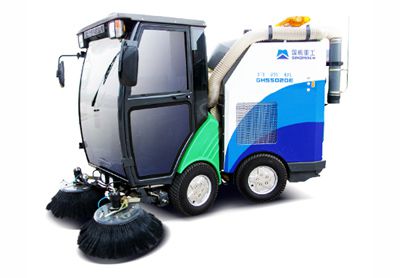

GHS5020E Sanitation Equipment
GHS5020E street sweeper machine is a small size sweeping and sucking street sweeping vehicle which is designed with dedicate integrated chassis, it has elegant appearance and is easy to operate. Powered by PERKINS diesel engine and all operations of this machine are driven by hydraulic transmission.
Consulting Products Information
- With a 240L standard garbage bin which is easy to be replaced.
- With a unique bidirectional hinging structure, the front and rear frames of the machine can twist and turn freely.
- Equipped with water spray system, Can reduce the flying dust in the air when sweeping road.
- Equipped with separate cooling air conditioning device and heating device in the cabin.
Technical Specification:
| Dimension(mm) | 3250*1130*2130 |
| Wheel base (mm) | 1200 |
| Garbage bin volume(L) | 240 |
| Clean water tank volume (L) | 140 |
| Virtual load (kg) | 400 |
| Sweeping width (mm) | 1800 |
| Operating speed（km/h） | 0-10 |
| Sweeping system | 2 plate brushesset symmetrically in front of the vehicle |
| Driving type | 4×2 Front wheel drive |
| Engine model | Perkins |
| Rated power(kw/rpm) | 21/3400 |
Inquiry
Compare Against Other Products
-
- GS2OS
Min. turning radius (mm): 2150
Max. total mass (kg): 1850
Sweeping width (m): 1.1 to 1.8
-
- GS21E
Min. turning radius (mm): 2600
Max. gradeability: ≥20%
Sweeping width (m): 1.1-1.8
-
- GS30E
Min. turning radius (mm): 4000
Max. total mass (kg): 2500
Sweeping width (M): 2100
-
- GS31M
Min. turning radius (mm): 5700
Max. total mass (kg): 2700
Sweeping width (mm): 2270
-
- GS42M
Min. turning radius (mm): Wall-to-Wall 3430 Road edge stone to road edge stone 3070
Climbing ability: 20%
Max. working speed (km/h): 30
-
- GS51M
Max. total mass (kg): 4050
Max. climbing gradient: 20%
Sweeping width (m): 1.5-2.4
