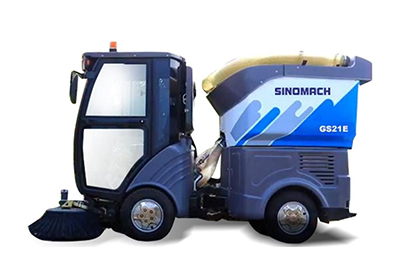

GS21E Electric Street Sweeper
The GS21E electric sweeper, driven by a lithium battery, was designed to maintain urban cleanliness. It's a perfect blend of environmental responsibility and efficiency, emitting zero exhaust and ensuring pollution-free operation. Ideal for urban streets, public squares, and parks, this street sanitation equipment is engineered for areas where environmental impact is a key concern. Its silent and efficient operation makes it indispensable for maintaining clean, green, and sustainable urban and industrial environments. This sweeper combines ecological consciousness with practical functionality, aligning with the growing demand for greener, cleaner cities.
Consulting Products Information
Features
- The sweeper is equipped with a lithium battery pack, managed by a BMS control system, ensuring reliable and stable operation.
- This electric road sweeper is equipped with components from globally recognized brands, to enhance the safety and stability of the vehicle.
- The VECU, an electric vehicle-grade control unit, boasts excellent CAN bus information processing capabilities. It is designed to be shock-resistant, highly protected, and adaptable to temperature variations and voltage fluctuations. Additionally, it facilitates remote control of vehicle data and diagnostics.
- The BMS/SOC system efficiently manages battery charging and discharging, protecting against overcharging and deep discharging, thus preventing potential hazards like explosions or fires.
- The sweeper uses a 220V AC charging system with an 80A current. It requires 4-5 hours for a full charge, with an automatic cut-off feature to prevent overcharging.
Technical Specification
| Item | Specifications |
| Dimension(L×W×H) (mm) | 3500×1190×2050 |
| Wheelbase (mm) | 1465 |
| Min. ground clearance (mm) | 100 |
| Min. turning radius (mm) | 2600 |
| G.V.W (kg) | 2300 |
| Curb weight (kg) | 1750 |
| Water tank volume (L) | 150 |
| Garbage bin volume (L) | 500 |
| Sweeping width (m) | 1.1-1.8 |
| Max. speed (km/h) | 20 |
| Working speed (km/h) | 1-10 |
| Max. suction density (g/cm³) | 2.0 |
| Sweeping capability (m²/h) | 10800 |
| Continuous working time (h) | 6-8 |
| Max. gradeability | ≥20% |
| Battery type | Lithium iron phosphate |
| System voltage (V) | 73.6 |
| Control voltage | 12V 36Ah,lead acid battery |
| Battery power (Ah) | 460 |
| Tire | 23×8.5-12 |
| Diameter of sweeping brush (mm) | 650 |
| Width of suction mouth (mm) | 500 |
| Suction hose diameter (mm) | 125 |
