GS2OS Street Sweeper

GS2OS Street Sweeper

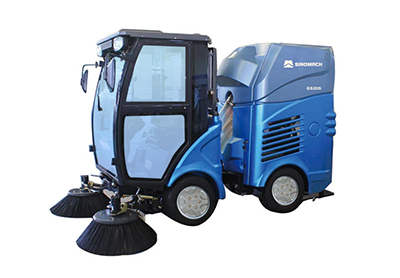

The GS20S street sweeper, also known as road sweeper, is a hallmark of innovation from SINOMACH-HI International Equipment Co., Ltd., manufactured for efficient urban cleaning. It features a custom chassis with two front brushes and a strategically placed suction inlet beneath the cab for optimal visibility and control. Engineered for performance, this sweeper combines effective sweeping, advanced air flow filtration, and dust suppression technology. It's the go-to solution for city streets, public squares, and park maintenance, ensuring clean, welcoming environments for communities and businesses alike.

Download
Consulting Products Information
Features
  • A combined mechanical and hydrostatic transmission braking system for smooth emergency stops, ensuring operational and parking safety.
  • HST hydrostatic transmission with stepless speed regulation driven by a bi-directional variable displacement pump and wheel-side motor drive for easy speed adjustments.
  • Steering is made effortless with a miniature full hydraulic steering system.
  • A specialized dust removal device with a large filter area, efficient ventilation, and high filtration precision, plus an electric rotary plate for effective ash cleaning, reducing the need for frequent manual intervention and maintenance.
  • The unique two-way articulated design of the sweeper allows for flexible steering and a small turning radius, making it ideal for maneuvering in tight spaces and corners.
  • Equipped with a handheld suction hose, suitable for cleaning in green belts and gutters, extending its cleaning capabilities to various environments.
Technical Specification
Dimensions (mm) 3250 (brush excluded 2970)×1130×2130
Wheelbase (mm) 1200
Min. turning radius (mm) 2150
Max. total mass (kg) 1850
Curb weight (kg) 1450
Water tank volume (L) 140
Dustbin volume (L) 240
Sweeping width (m) 1.1 to 1.8
Working speed (km/h) 1 to 10
Max. speed (km/h) 16
Suction capacity (mm) 45 equivalent diameter at a density of 2.7g/cm³
Engine model Perkins 403D-11/ KUBOTA D1105
Engine rated power (kW/rpm) 18.4/2800/18.1/2800
