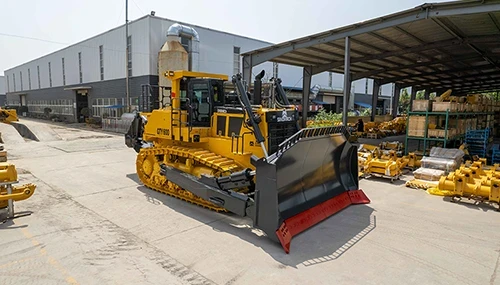

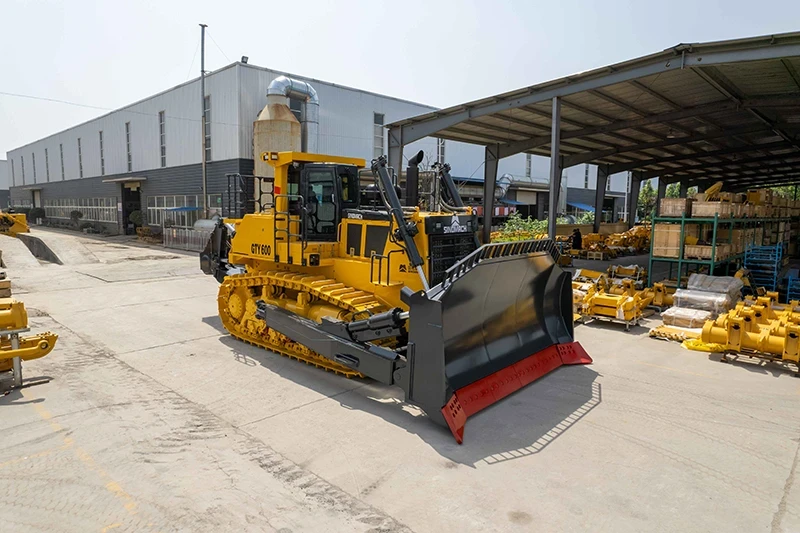

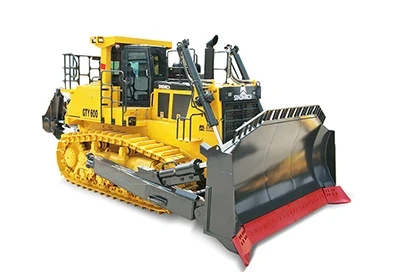

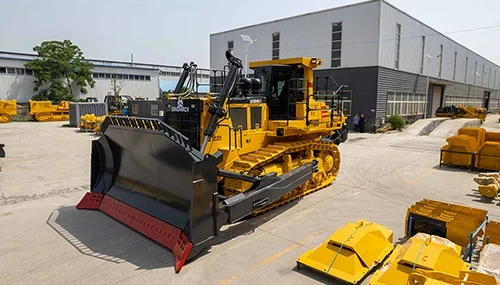

GTY600 Bulldozer
The GTY600 is a heavy-duty crawler bulldozer with an operating weight of approximately 70,630 kg, designed for open-pit mine stripping, large-scale earthmoving, ripping weathered rock, and mine site grading. Its standard 18.5 m³ semi-U blade provides the capacity for bulk material pushing, while an optional single-shank ripper extends the machine's capabilities to ground preparation and ripping applications in heavy-duty mining operations and uneven terrain.
- Cummins Diesel Engine
This bulldozer is powered by a Cummins QSK19-C604 six-cylinder, electronically controlled diesel engine with a 19 L displacement, rated power of 562 kW at 2,100 rpm, and maximum torque of 3,019 N·m at 1,300 rpm. - Heavy-Duty Main Frame
The welded box-section main frame integrates with the rear axle housing to form a load-bearing structure designed to withstand impact loads and resist bending and torsional forces. - Low-Mounted Final Drive and K-Type Undercarriage

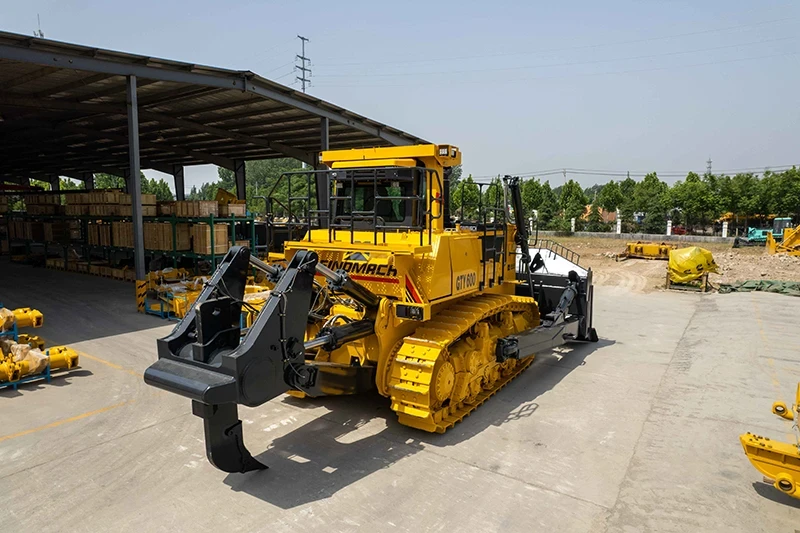

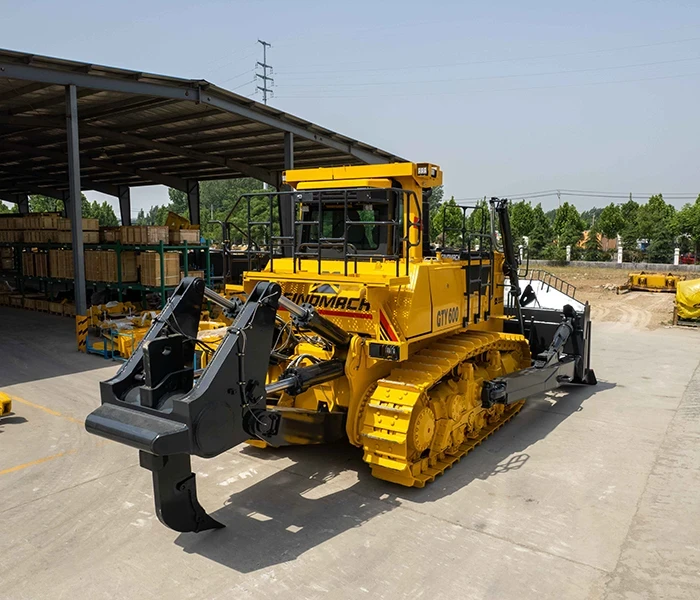

The low-mounted final drive provides tractive effort for pushing and climbing operations. The K-type suspended undercarriage features 610 mm track shoes, a 280 mm track chain pitch, and hydraulically adjustable track tensioning to accommodate heavy loads and uneven mining terrain. - Semi-U Blade and Optional Ripper

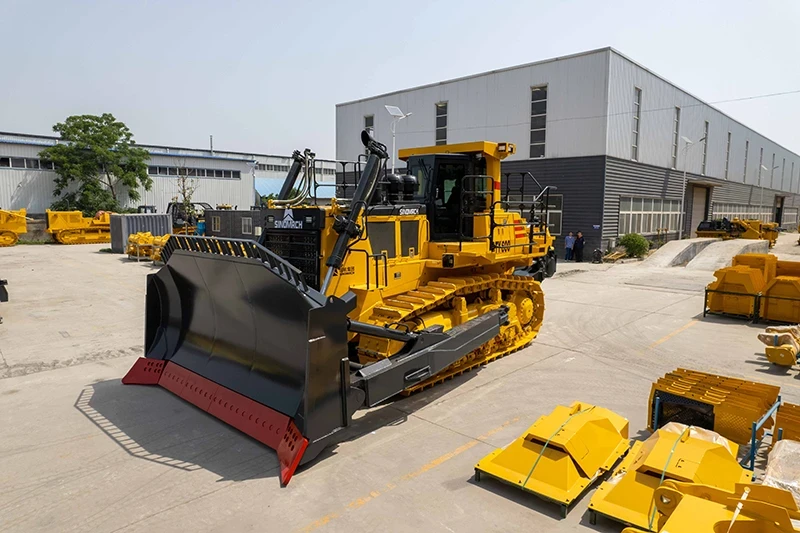

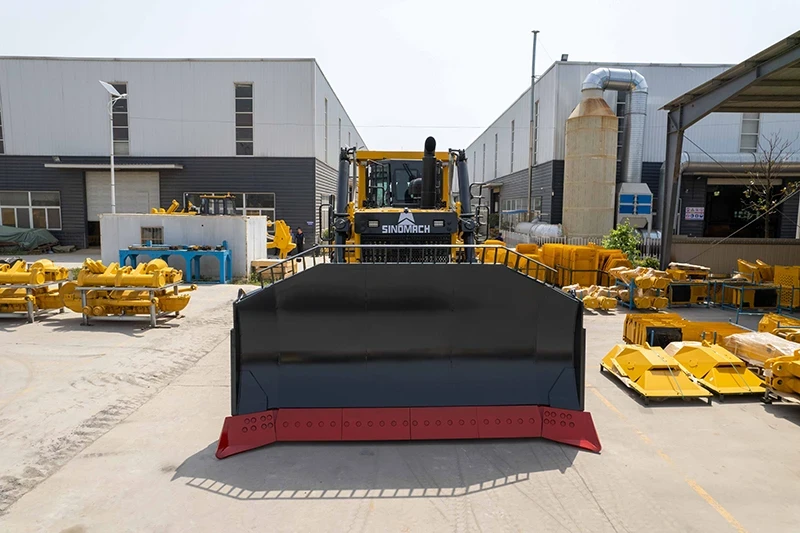

The standard semi-U blade measures 4,690 mm wide and 2,250 mm high, with an 18.5 m³ capacity and a maximum cutting depth of 715 mm.
-

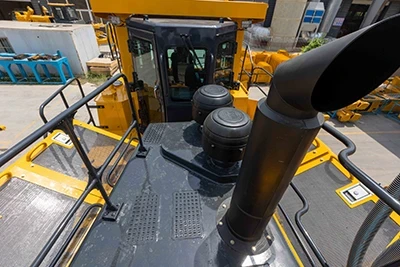

Engine
-

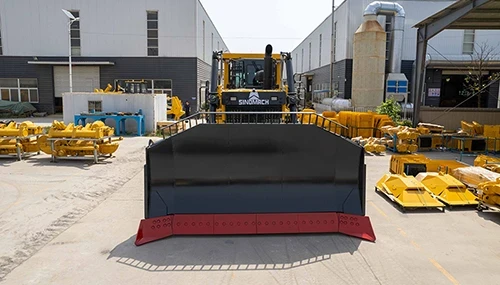

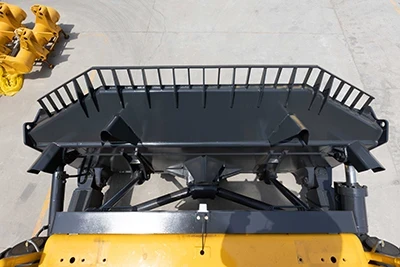

Semi-U Blade
-

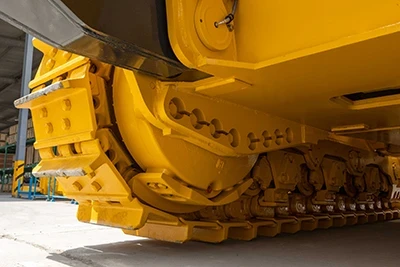

Low-Mounted Final Drive
-

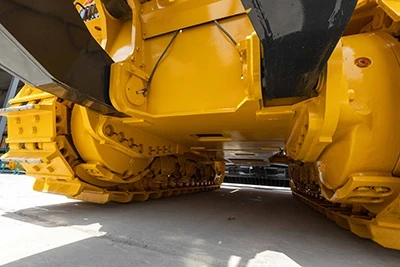

Main Frame
| Parameter | Specification |
| Model | GTY600 |
| Machine type | Crawler bulldozer |
| Engine model | Cummins QSK19-C604 |
| Displacement (L) | 19 |
| Emissions standard | China Stage III |
| Rated power / speed (kW/rpm) | 562/2100 |
| Max. torque / speed (N·m/rpm) | 3019/ 1300 |
| Operating weight (t) | 70.63 |
| L × W × H (mm) | 10390 × 4690 × 4470 |
| Ground contact length (mm) | 3840 |
| Ground pressure (MPa) | 0.1302 |
| Gradeability | 30° |
| Track center distance (mm) | 2500 |
| Blade capacity (m³) | 18.5 |
| Blade width (mm) | 4690 |
| Blade height (mm) | 2250 |
| Max. cutting depth (mm) | 715 |
| Track shoe width (mm) | 610 |
| Track chain pitch (mm) | 280 |
| Number of track links | 40 per side |
| Number of carrier rollers | 2 |
| Number of track rollers | 7 |
| Max. hydraulic system pressure (MPa) | 21 |
| Forward travel speeds (km/h) | 0-3.8 |
| 0-6.8 | |
| 0-11.8 | |
| Reverse travel speeds (km/h) | 0-5.1 |
| 0-9.2 | |
| 0-15.8 | |
| Ripper type | Single-Shank |
| Max. ripping depth (mm) | 1435 |
