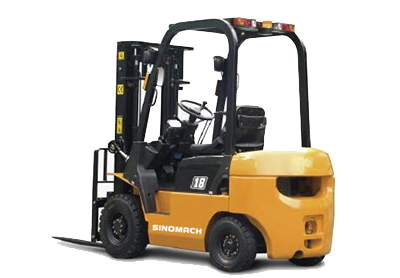

CPCD20 Diesel Forklift Truck

CPCD20 Diesel Forklift Truck
  • Due to state of the art appearance design, the forklift truck comes with streamline, dynamic and striking appearance.
  • Large covering part made by injection molding process makes the diesel powered forklift more elegant and user friendly.
  • With long wheelbase design, the forklift has better longitudinal stability and comes with an increased lifting weight. At the same lifting height, the average lifting weight is increased by more than 100kg over the original forklift. In addition, the load of real axle is reduced, thus extending the service life of steering wheel.
Download
Consulting Products Information
  • By means of reduction of machine size (reducing front and rear overhang size), the material handling equipment ensures a smaller turning radius and right angle stacking passage width, hence improving warehouse use ratio and providing suitability for use in containers.
  • Drive of the diesel forklift is available in Japanese OKAMURA, NISSAN and Chinese HC engines which feature best in class structure and reliable performance.
Technical Parameter:
General Type RW6 RW6B RW10 RW10B RW13 RW15A RW27 RW32 RW33 RW33B RG2 RG5
Power type Diesel Diesel Diesel Diesel Diesel Diesel
Rated load(kg) 2000 2000 2000 2000 2000 2000
Load center distance(mm) 500 500 500 500 500 500
Characteristics & Dimensions of Forklift Truck Lifting height(mm) 3000 3000 3000 3000 3000 3000
Free lift height(mm) 150 150 150 150 150 150
Fork size mm(L×W×T)( mm) 1070×122×40 1070×122×40 1070×122×40 1070×122×40 1070×122×40 1070×122×40
Mast tilt angle(F/R) degree 6/12 6/12 6/12 6/12 6/12 6/12
Fork overhang(Wheel center to fork surface)( mm) 475 475 475 475 475 475
Rear overhang(mm) 405 405 405 405 480 480 405
Overall dimensions(mm) Length (To surface of fork) 2530 2530 2530 2530 2530 2530
Overall width 1155 1155 1155 1155 1155 1155
Mast closed height 1985 1985 1985 1985 1985 1985
Mast extended height 4045 4045 4045 4045 4045 4045
Overhead guard height 2140 (2200*) 2140 (2200*) 2140 (2200*) 2140 (2200*) 2140 (2200*) 2140 (2200*)
Turning radius (Outside)( mm) 2175 2175 2175 2175 2175 2175
Min. width of right angle stacking aisle(including load length and clearance)( mm) 2650 2650 2650 2650 2650 2650
Performance Speed Travel speed (No load)(mm) 20.5 20.5 20 18 19.5 20 20 22 20.5
Lifting speed (Full load) (mm/sec) 510 410 510 500 450 500 500 580 470
Lowering speed (Full load) (mm/sec) 500 500 500 500 500 500
Max. drawbar pull (Full load) (N) 25000 17000 22700 23100 22600 14500 18500 19700 187000 18000
Max. gradeability (Full load) (%) 25 25 25 25 25 20 25
Chassis of Forklift Truck Tyre(mm) Front 7.00-12-12PR 7.00-12-12PR 7.00-12-12PR 7.00-12-12PR 7.00-12-12PR 7.00-12-12PR
Rear 6.00-9-10PR 6.00-9-10PR 6.00-9-10PR 6.00-9-10PR 6.00-9-10PR 6.00-9-10PR
Tread(mm) Front 965 965 965 965 965 965
Rear 970.5 970.5 970.5 970.5 970.5 970.5
Wheelbase(mm) 1650 1650 1650 1650 1650 1650
Ground clearance Lowest point 105 105 105 105 105 105
Wheelbase center 150 150 150 150 150 150
Weight Dead weight(kg) 3440 3440 3440 3440 3440 3440
Weight distribution Full load F/R 4815/625 4815/625 4815/625 4815/625 4815/625 4815/625
No load F/R 1640/1800 1640/1800 1640/1800 1640/1800 1640/1800 1640/1800
Power & Transmission Battery Voltage/Capacity (20HR)( V/Ah) 12/100 12/100 12/100 12/100 12/100 12/100
Engine of forklift truck Model 4TNV94L C240PKJ-30 4JG2 PE-01 TD27 A498BT1 4TNE92-HRJ 4TNE98-BQFLC 4TNE98-BQFLC C490BPG A490BPG
Manufacturer YANMAR ISUZU ISUZU NISSAN XINCHAI YANMAR YANMAR YANMAR XINCHAI
Rated output/rpm(kW) 43/2500 34.5/2500 46/2450 38.5/2300 36.8/2400 32.8/2450 42.1/2300 42.1/2300 40/2650 37/2650
Rated torque/rpm(N.m) 205/1000 137.7/1800 186.3/1700 160/2300 186/1700 149.4/1600 186/1700 186/1700 162/1800-2000 148/1900
Quantity of cylinder 4 4 4 4 4 4
Bore×stroke(mm) 94×110 86×102 95.4×107 96×92 98×105 92×100 98×110 98×110 90×105 90×100
Emission standard Stage II/Tier2 Stage IIIA Stage II - E-MAPK III Stage IIIA/Tier 4 interim Stage IIIA/Tier3 Stage IIIA/Tier3 - -
Displacement(cc) 3054 2369 3059 2663 3168 2659 3319 3319 2670 2540
Fuel tank capacity (L) 60 60 60 60 60 60 60 60 60 60 60 60
Transmission Manufacturer CHINA OKAMURA CHINA OKAMURA CHINA NISSAN CHINA CHINA CHINA OKAMURA CHINA CHINA
Type Power shift Power shift Power shift Power shift Power shift Power shift Power shift Power shift Power shift Power shift Power shift Power shift
Gear Forward/Reverse 1/1 1/1 1/1 1/1 1/1 1/1 1/1 1/1 1/1 1/1 1/1 1/1
Others Operating pressure For attachments(MPa) 17.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5

Note: *With suspension seat or cabin.

  • Customized lifting height is available with this forklift truck (2-stage mast: 2.5m, 2.7m, 3.0m,3.3m, 3.6m, 4m, and 4.5m. 3-stage mast: 4.3m, 4.5m, 4.8m, 5m, 5.5m, and 6m)
  • This warehouse equipment can be designed with attachment.
  • Data in the table is for standard model only. Please contact us for more details related to the material handling equipment.
  • All specifications for the lift truck are subject to change without prior notice.
