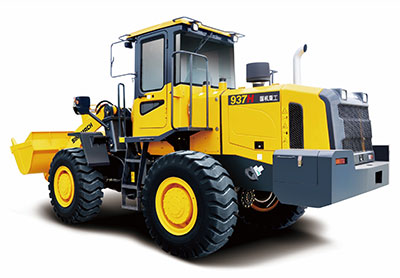

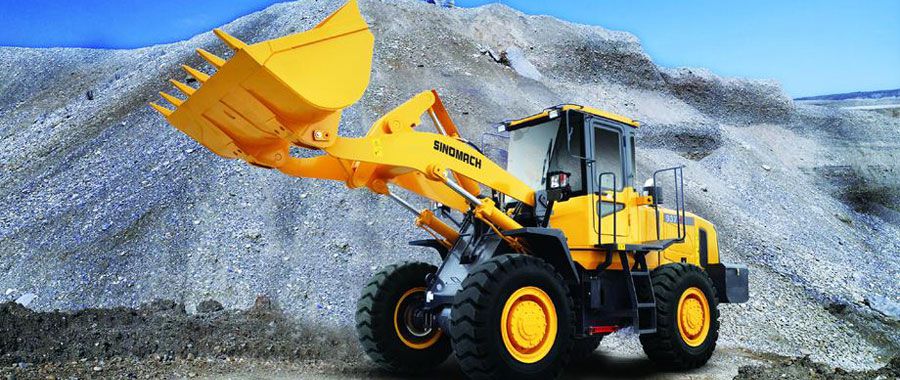

937H Wheel Loader

937H Wheel Loader
  • The 937H Wheel Loader is equipped with Dongfeng Cummins Engine.
  • This front end loader adopts 3 forward and 3 reverse power shift transmission.
  • The combined seal cylinder adopted by this wheel loader obtains high seal performance and more reliability.
Download
Consulting Products Information
Technical Specification:
Model 937H
Length×Width×Height(mm) 7000×2305×3136
Rated load (Kg) 3000
Rated bucket capacity(m3) 1.7
Operating weight(Kg) 10200
Diesel engine Cummins 6BT5.9-C130 / WeiChai WP6G125E22
Rated output(KW) 97/92
Transmission case ADVANCE
Gear positions 4 forward, 2 reverse
Max. drawing force(KN) 96
Max. dump clearance(mm) 2934
Dump reach (mm) 1043
Wheel base(mm) 2750
Total cycle time (s) 9.2
Gallery
  • Images
  • VR View

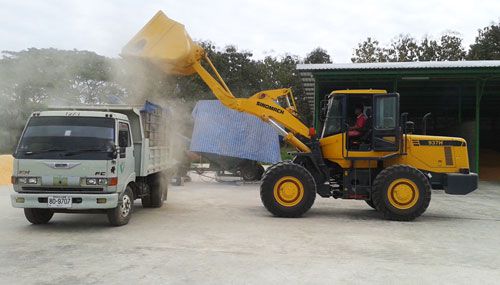

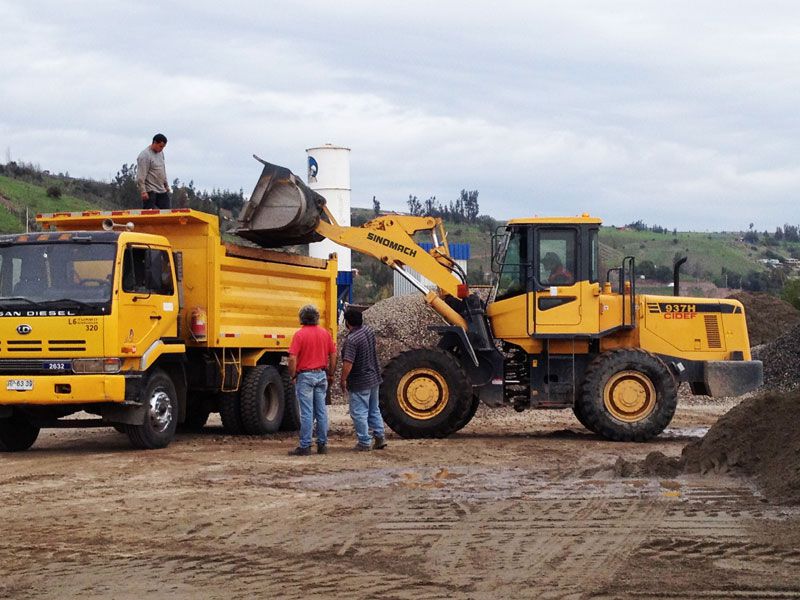

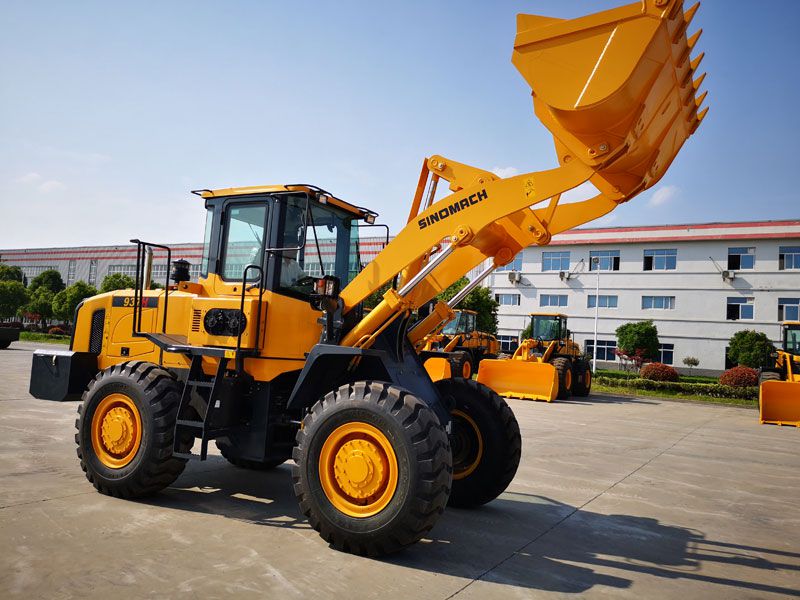

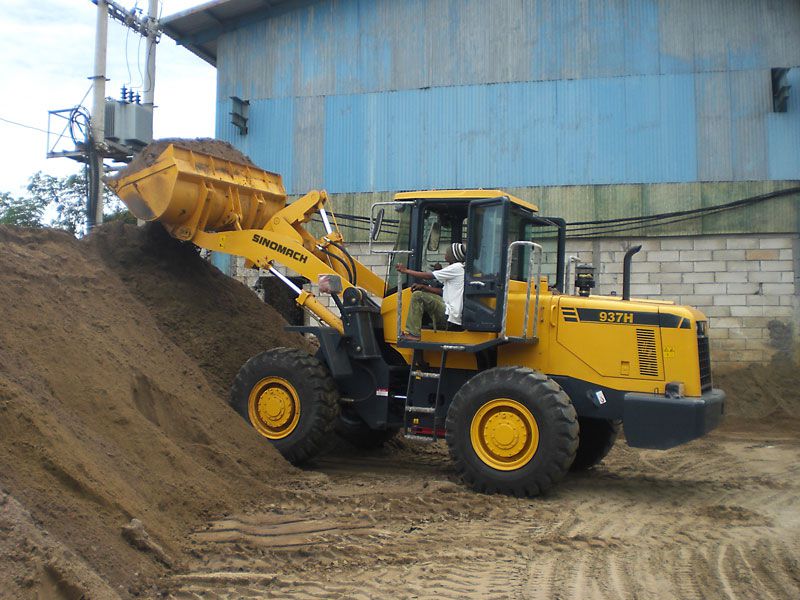

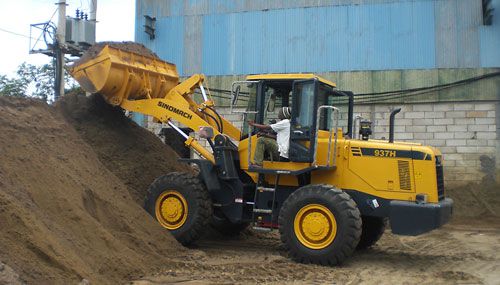

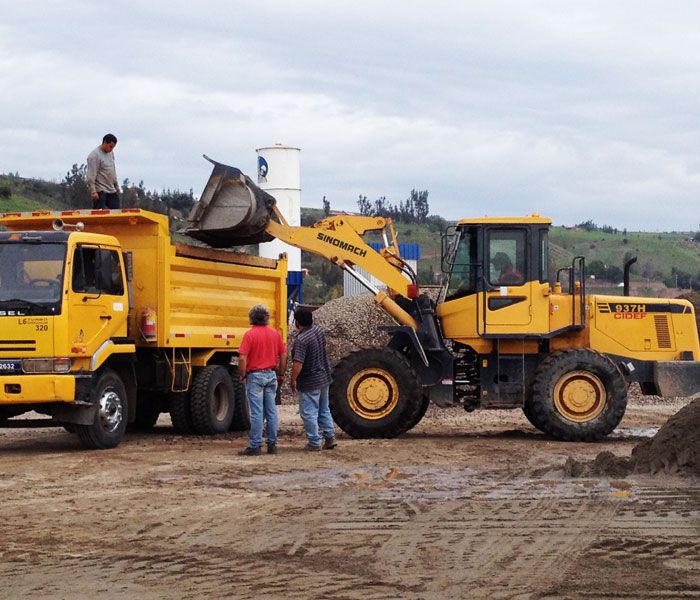

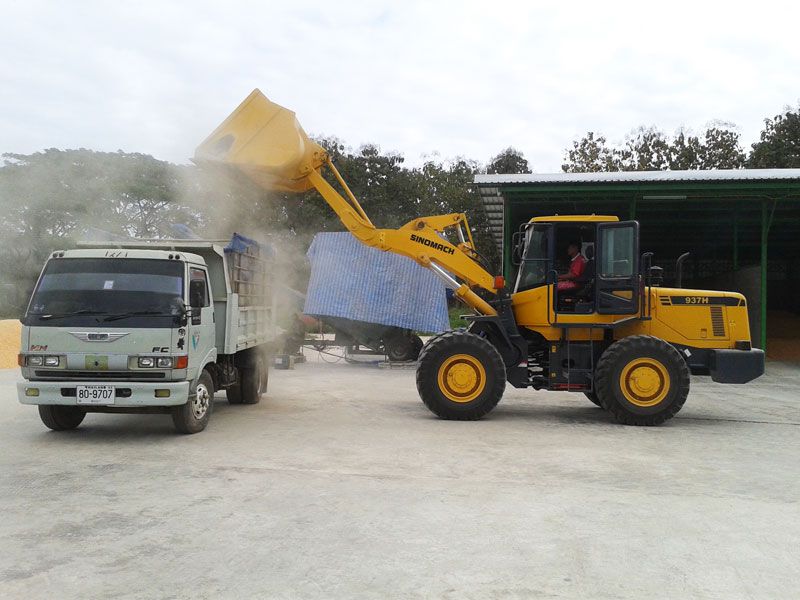

937H Wheel Loader
