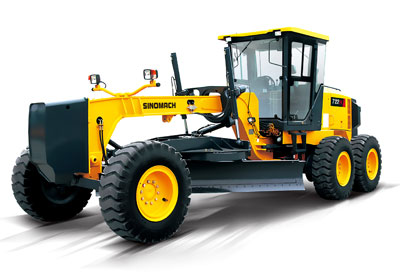

722-5 Motor Grader

722-5 Motor Grader
  • The 722-5 motor grader is equipped with original ShangChai diesel engine.
  • The sing-handle and electro-hydraulic controlled power-shift transmission adopts 6 forward and 3 reverse gear design, making operation easy and convenient.
  • The adopted NO-SPIN differential with auto lock and unlock function provides high stability and powerful traction.
Download
Consulting Products Information
  • This road grader features ideal axel load allocation, so that it can cut hard surface while maintaining great stability.
  • Due to the efficient hydraulic system, every working part can be fully controlled.
  • Through the flexible blade suspension system and articulated frame, a variety of tasks can be accomplished.
  • The grader can be used to complete heavy-duty work, due to its box-type frame and advanced transmission system.
Specifications of Motor Grader:
Model 722-5
Length×Width×Height(mm) 9235×2600×3370
Operating weight (Kg) 16600
Blade dimensions (mm) 4320×545×16
Traveling gears 6 Forward 3 Reverse
Traveling speed forward(km/h) 6.8/10.3/15.3/22.7/32/47
Traveling speed reverse(km/h) 6.8/15.3/32
Diesel engine SHANGCHAI SC11CB220G2B1
Rated output(KW) 162
