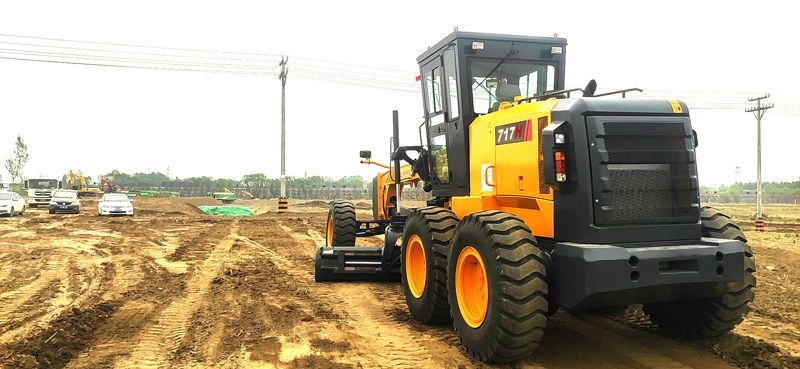

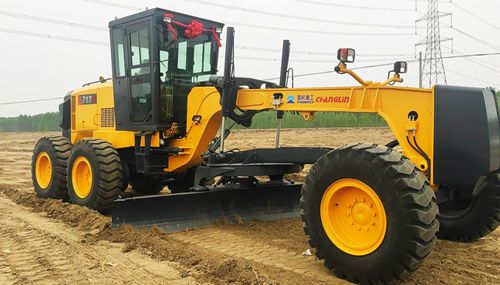

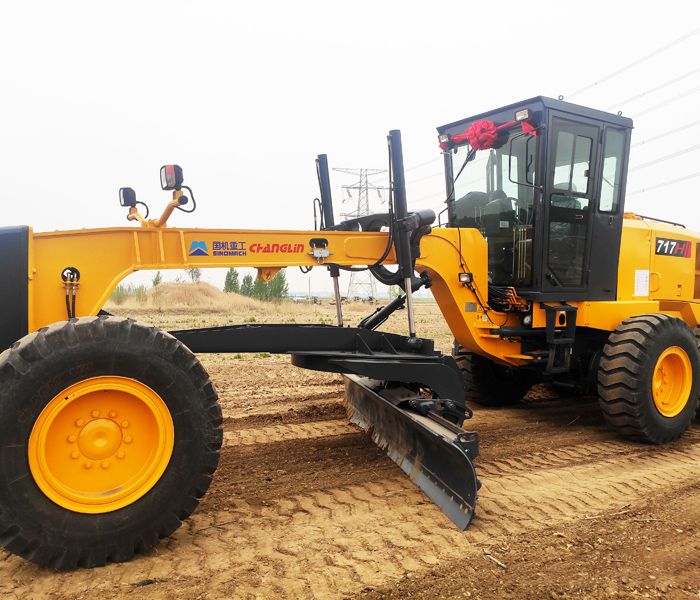

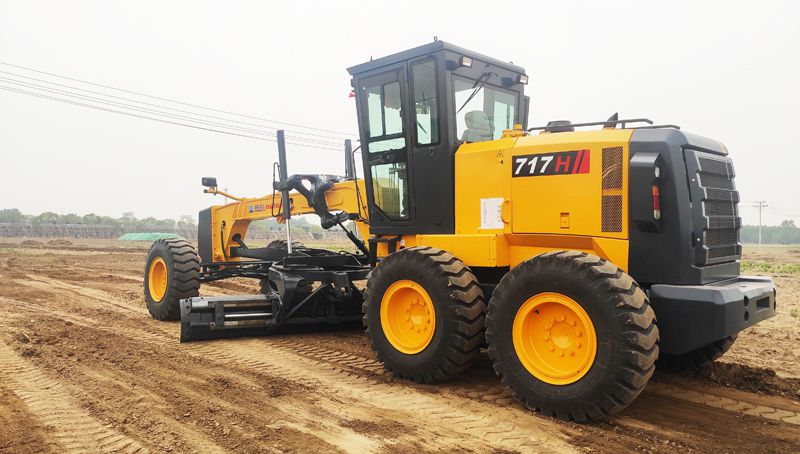

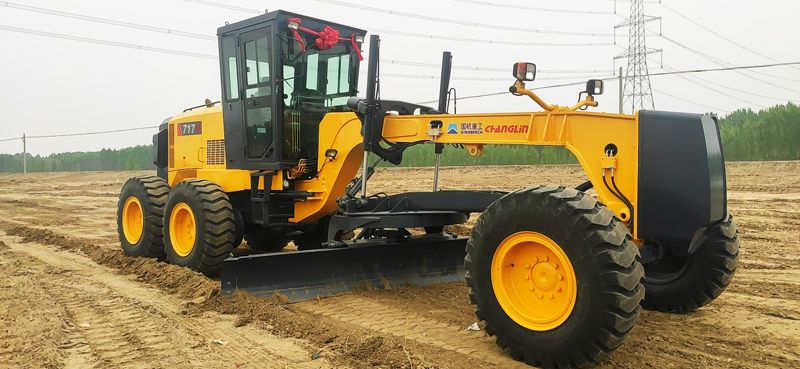

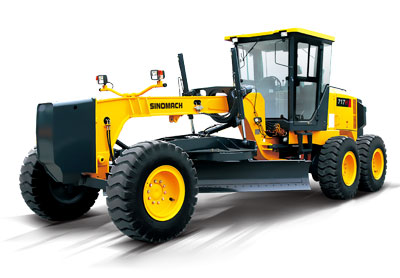

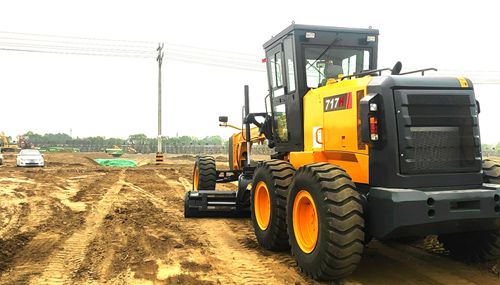

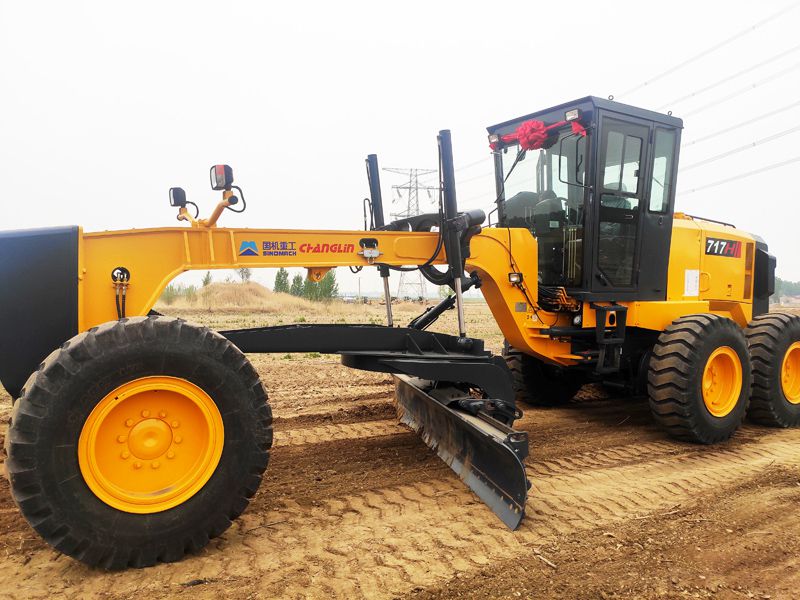

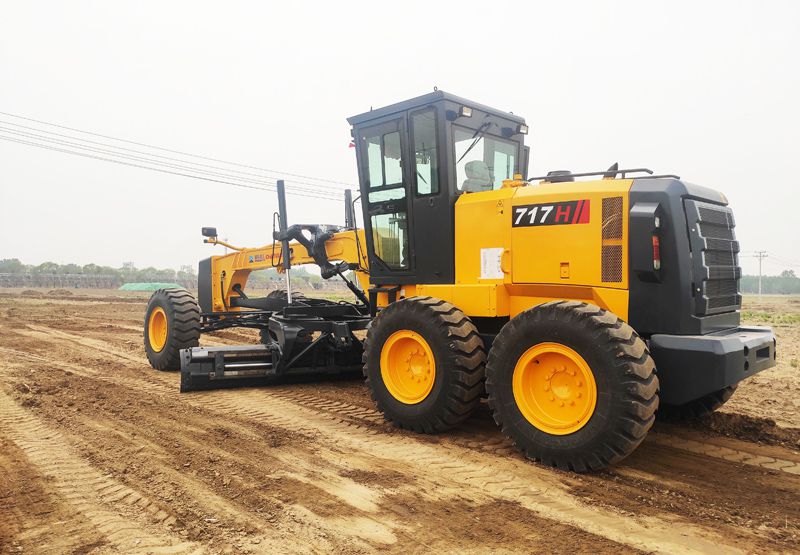

717H Motor Grader
- Sing-handle electro-hydraulic controlled power-shift T/M, 6 forward&3 reverse shifts makes operation easy and convenient
- Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability
- Powerful traction deal axle load allocation provides excellent stability while cutting hard surface
- Serviceable, efficient hydraulic system enables every part to be fully used
- Box-typed frame and advanced T/M enable it to complete heavy-duty work
- A wide working range is accomplished through flexible blade suspension system and articulated frame
Consulting Products Information
Specifications of Motor Grader 717H:
| Basic specification | |
| Engine model | Cummins 6BTA5.9-C180 |
| Rated power | 132KW@2200rpm |
| Dimension(L×W×H) | 8820×2600×3420（mm） |
| Operating weight(Standard) | 14500KG |
| Performance specification | |
| Travelling speed, forward | 6.5/11.4/14.6/24.8/30/49.2 |
| Travelling speed, reverse | 6.5/14.6/30 |
| Tractive force(f=0.75) | 74.6KN |
| Operating specification | |
| Max. steering angle of front wheels | 49° |
| Max. lean angle of front wheels | 17° |
| Max. oscillation angle of front axle | 16° |
| Max. oscillation angle of balance box | 13° |
| Frame articulation angle | 26° |
| Min. turning radius using articulation | 7.3m |
| Blade | |
| Maximum lift above ground | 450mm |
| Maximum grading depth | 535mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 29°~77° |
| Circle reversing rotation | 360° |
| Moldboard width × height | 3658×580mm |
Gallery
- Images

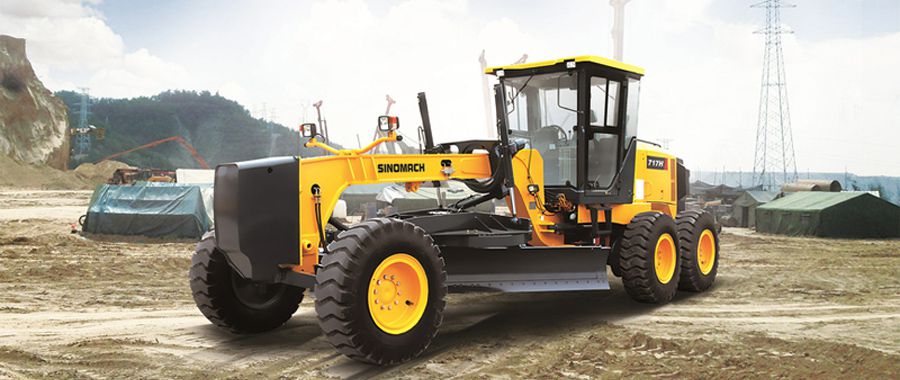

VR View
