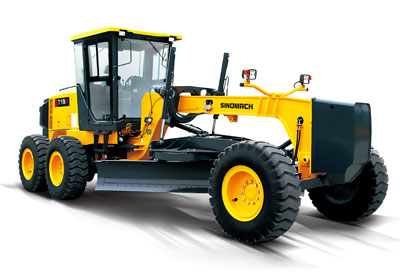

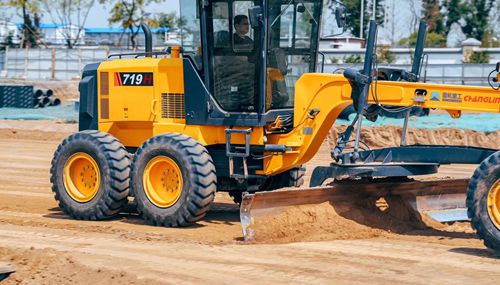

719H Motor Grader

719H Motor Grader
  • This 719H Motor Grader is equipped with reliable ShangChai SC11CB195G2B1 engine or genuine Cummins engine
  • Sing-handle electro-hydraulic controlled power-shift T/M, 6 forward & 3 reverse shifts makes operation easy and convenient
  • Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction
  • Ideal axel load allocation provides excellent stability while cutting hard surface
Download
Consulting Products Information
  • Serviceable, efficient hydraulic system enables every part to be fully used
  • Box-typed frame and advanced T/M enable it to complete heavy-duty work
  • A wide working range is accomplished through flexible blade suspension system and articulated frame
Specifications of Motor Grader-PY190:
Basic specification
Engine model Cummins 6CTA8.3-C190
Rated power 142KW@2200rpm
Dimension(L×W×H) 8945×2600×3420（mm）
Operating weight(Standard) 15600KG
Performance specification
Travelling speed, forward 6.5/11.4/14.6/24.8/30/49.2
Travelling speed, reverse 6.5/14.6/30
Tractive force(f=0.75) 80.2KN
Operating specification
Max. steering angle of front wheels 49
Max. lean angle of front wheels 17
Max. oscillation angle of front axle 16
Max. oscillation angle of balance box 13
Frame articulation angle 26
Min. turning radius using articulation 7.3m
Blade
Maximum lift above ground 450mm
Maximum grading depth 535mm
Maximum blade position angle 90°
Blade cutting angle 29°~77°
Circle reversing rotation 360°
Moldboard width × height 4268×580mm

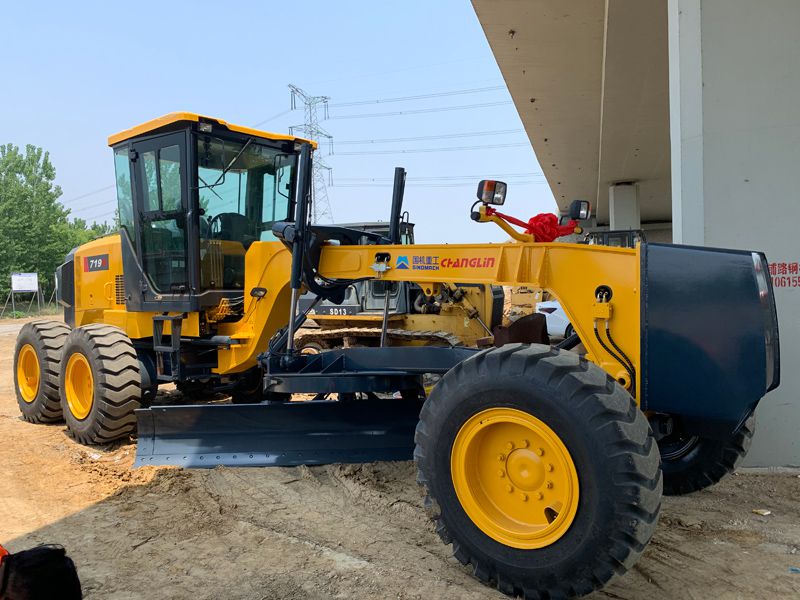

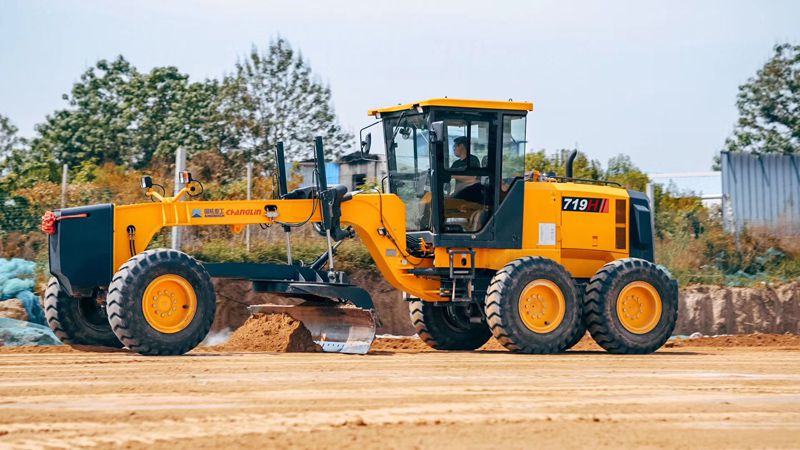

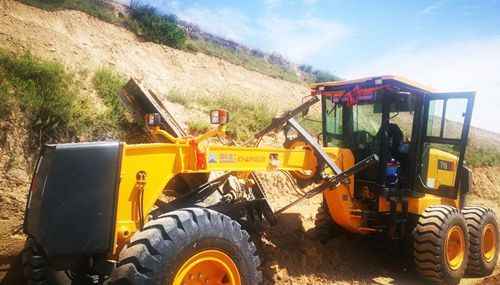

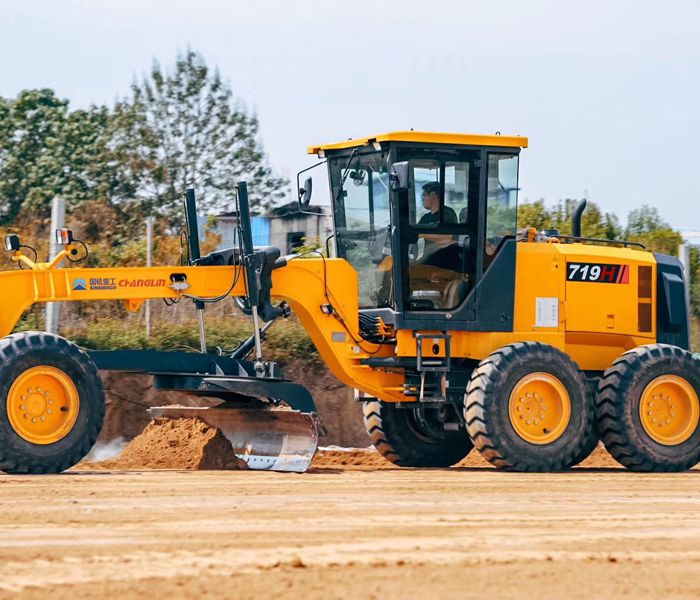

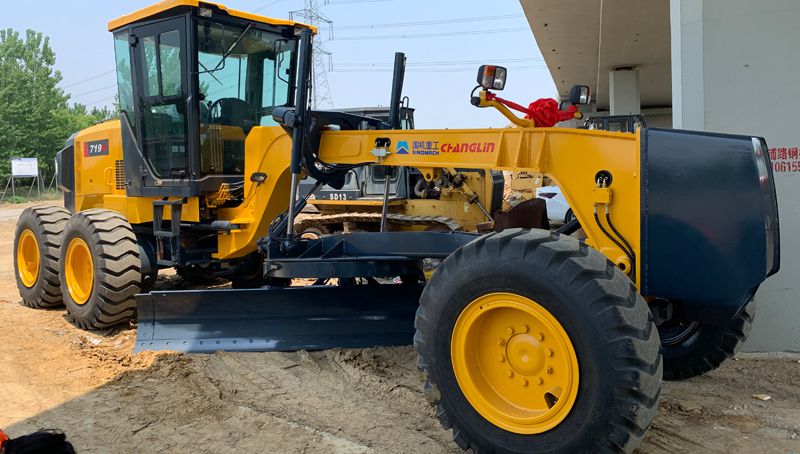

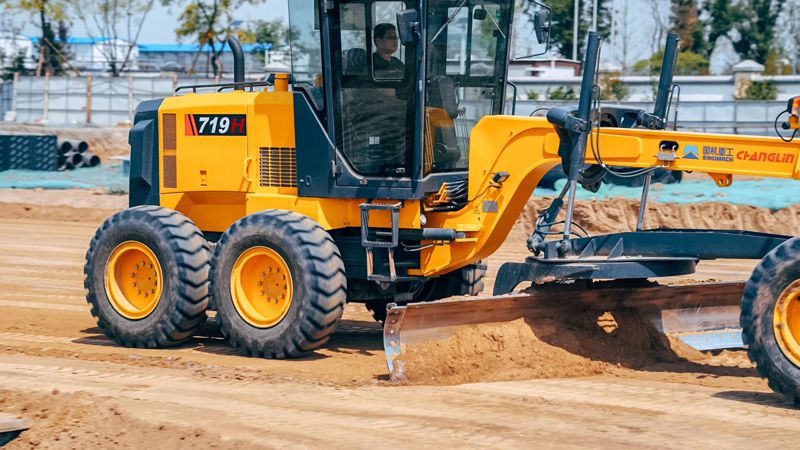

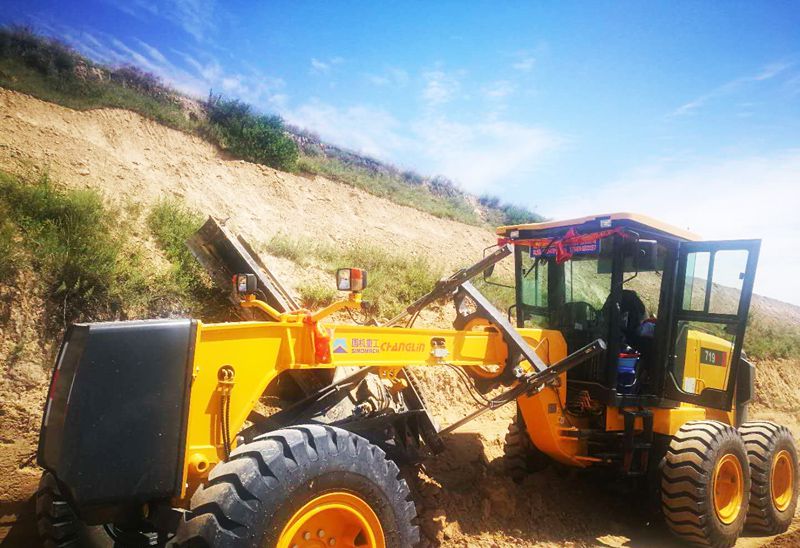

Gallery
719H Motor Grader
719H Motor Grader
719H Motor Grader
719H Motor Grader
