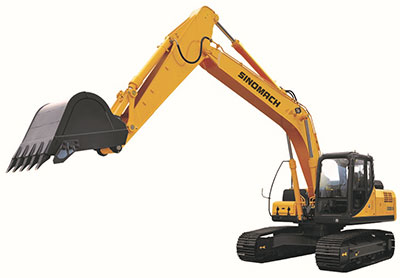

ZG3225LC-9C Crawler Excavator
- The hydraulic crawler excavator is equipped with a reliable Cummins engine.
- It comes with a reliable hydraulic system that includes high-quality pumps, motor and valves.
- The hydraulic excavator is designed with an electronic monitoring and control system that has multifunctional LCD display function.
- With a stepped-up device, it is applicable to mines.
- Strengthened X-shaped box structure
Consulting Products Information
Specifications of ZG3225LC-9C Excavator:
| Model | ZG3225LC-9C |
| Length×Width×Height(mm) | 9520×2990×3030 |
| Operating weight (Kg) | 22000 |
| Rated bucket capacity(m3) | 1.0 |
| Max.digging depth(mm) | 6707 |
| Max.digging radius(mm) | 9970 |
| Max.digging height(mm) | 9665 |
| Max.dumping height(mm) | 6803 |
| Bucket digging force(KN) | 137 |
| Stick digging force(KN) | 102 |
| Gradient capacity(%) | 70 |
| Diesel engine | Cummins 6BTAA5.9-C150 |
| Rated output(KW) | 112 |

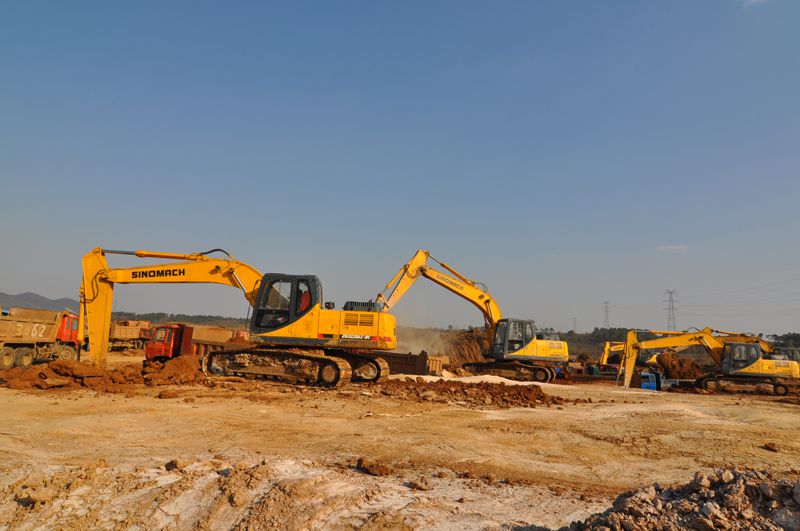

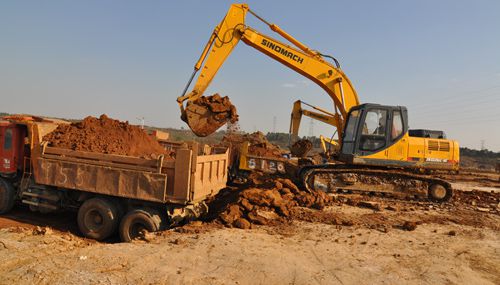

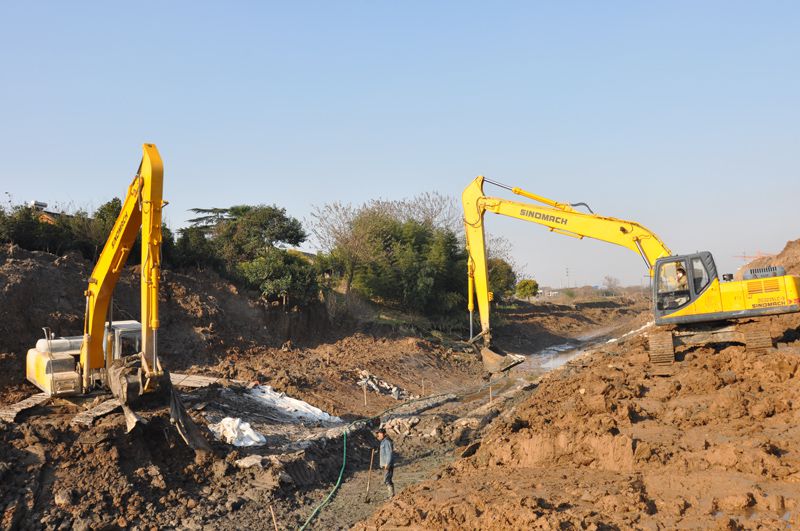

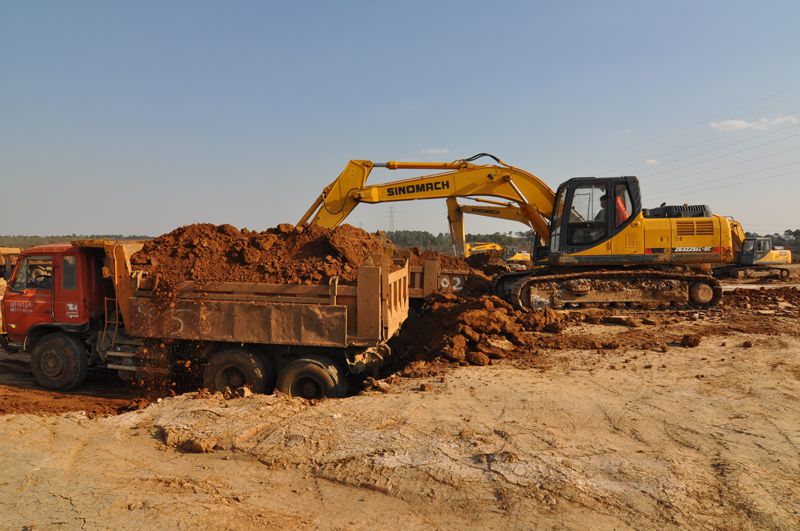

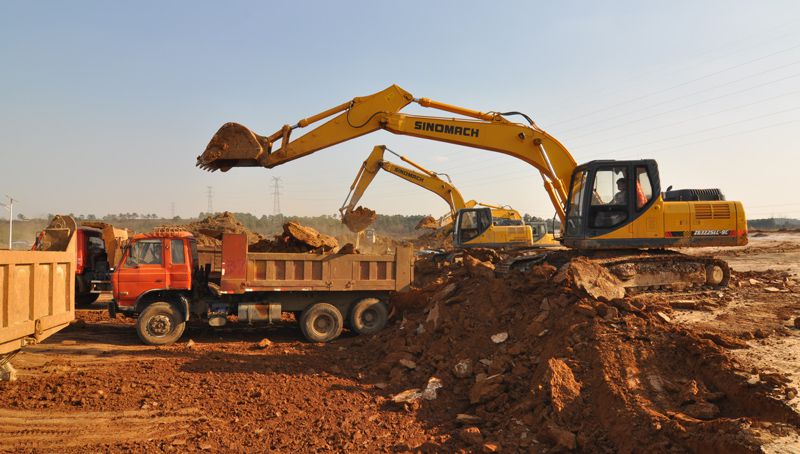

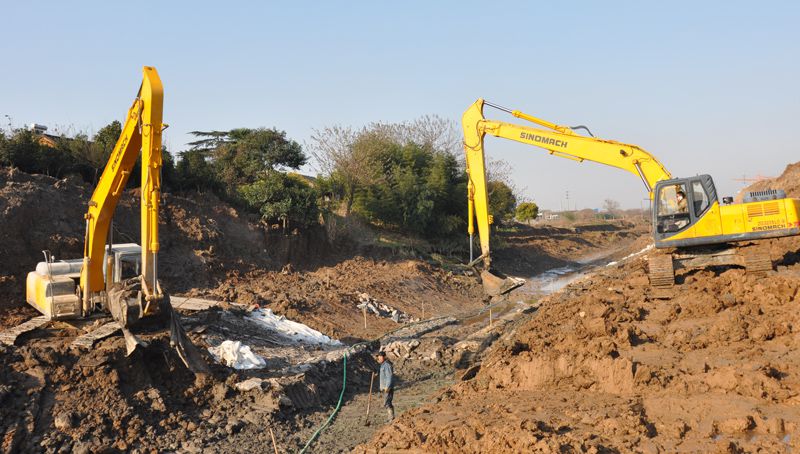

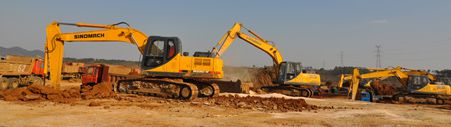

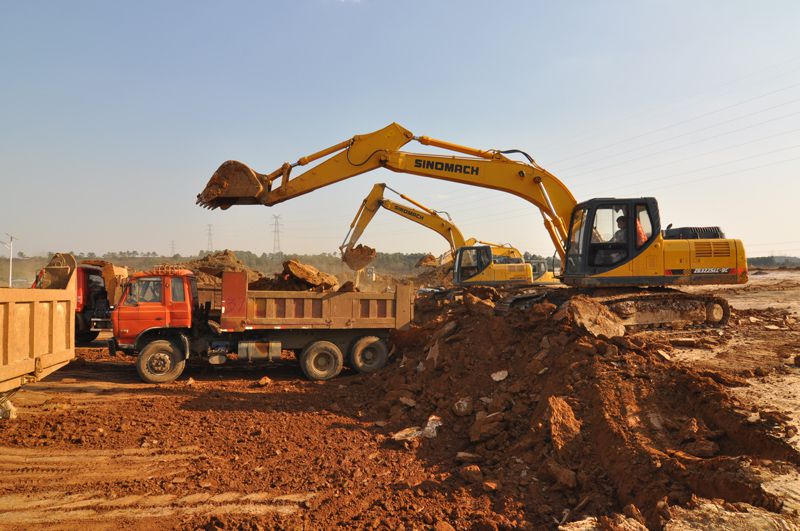

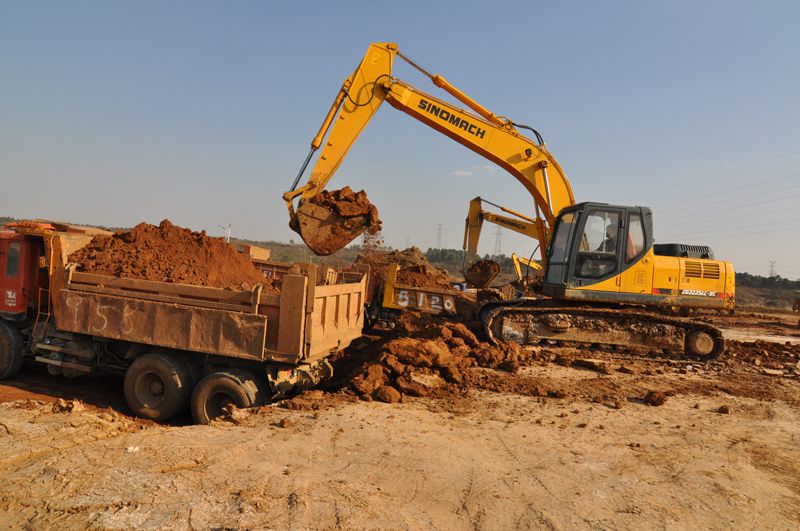

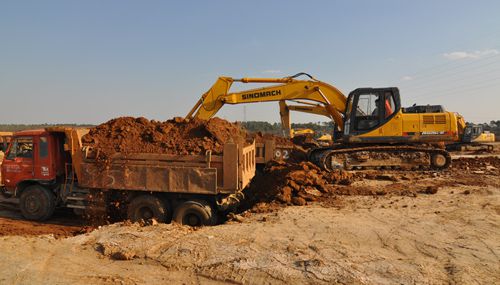

Gallery
