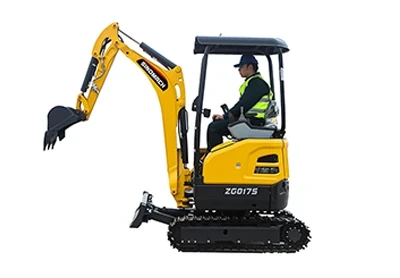

ZG017S Hydraulic Mini Excavator

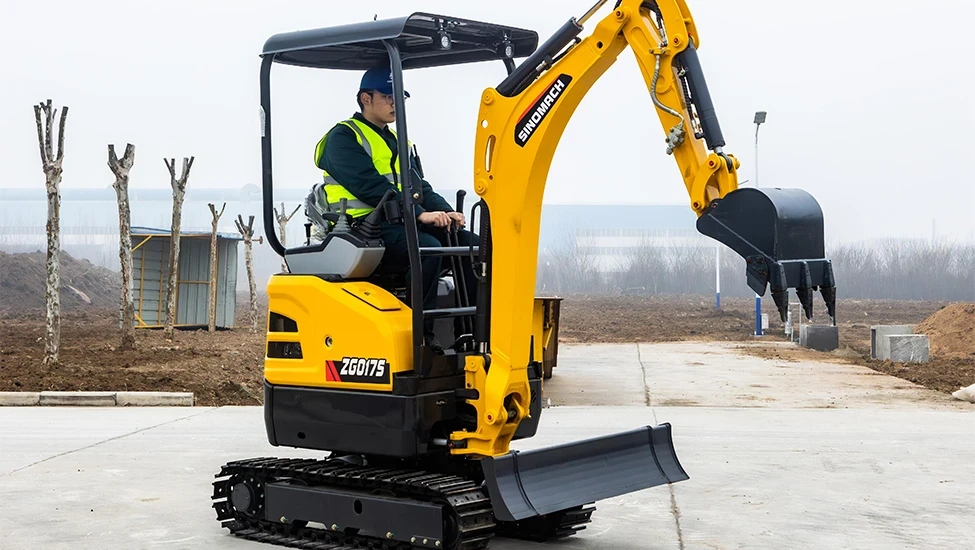

ZG017S is a compact crawler excavator with an operating weight of approximately 1,800 kg and a hydraulically adjustable undercarriage that extends from 990 mm to 1,300 mm. The excavator’s narrow configuration allows access through confined spaces, while the wider setting provides greater stability during operation.
Powered by a Kubota D902 three-cylinder, water-cooled diesel engine rated at 11.8 kW at 2,300 rpm, the mini excavator features boom swing, a foldable dozer blade, and auxiliary hydraulic lines. It is suitable for residential construction, landscaping, orchard fertilizer trenching, utility trenching, and small-scale demolition.
| Parameter | Unit | Specification | |
| Basic Specifications | Operating weight | kg | 1800 |
| Standard bucket capacity | m3 | 0.04 | |
| Standard bucket width | mm | 450 | |
| Overall length | mm | 2440 | |
| Overall width, transport position | mm | 990 | |
| Overall height, transport position | mm | 2405 | |
| Undercarriage width | mm | 990/1300 | |
| Track length | mm | 1593 | |
| Track shoe width | mm | 230 | |
| Track gauge | mm | 1230 | |
| Min. ground clearance | mm | 145 | |
| Counterweight ground clearance | mm | 460 | |
| Tail swing radius | mm | 650 | |
| Arm length | mm | 950 | |
| Boom length | mm | 1828 | |
| Fuel tank capacity | L | 19 | |
| Hydraulic oil tank capacity | L | 13.7 | |
| Performance Specifications | Engine model | Kubota D902 | |
| Rated engine power | kW/rpm | 11.8/2300 | |
| Emission standards | U.S. EPA Tier 4 Final / EU Stage V | ||
| Max. gradability | 58% | ||
| Max. arm digging force | kN | 9.5 | |
| Max. bucket digging force | kN | 16 | |
| Travel speed | km/h | 2.2/4.3 | |
| Swing speed | rpm | 9.5 | |
| Working Range | Max. digging height | mm | 3570 |
| Max. digging depth | mm | 2270 | |
| Max. vertical digging depth | mm | 1910 | |
| Max. digging reach | mm | 3910 | |
| Max. digging reach at ground level | mm | 3840 | |
| Max. dumping height | mm | 2480 | |
| Min. swing radius | mm | 1440 | |

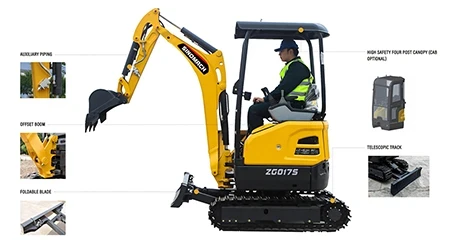

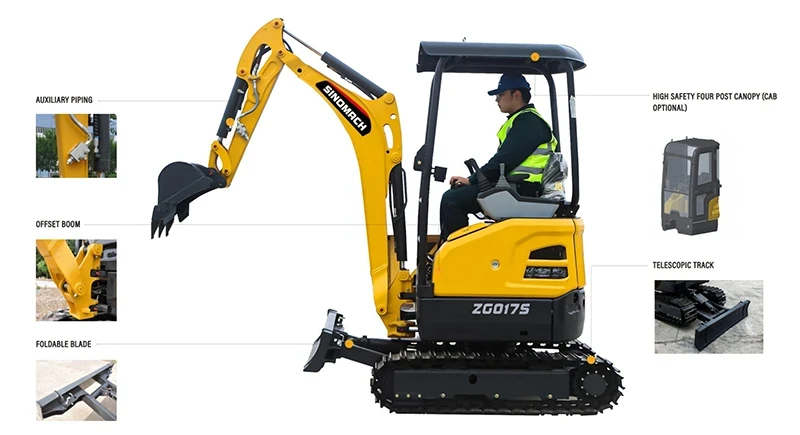

The ZG017S hydraulic mini excavator combines a zero-tail-swing design, a retractable undercarriage, boom swing, and a foldable dozer blade for confined-space work. Auxiliary hydraulic lines and quick couplers accommodate attachments such as hydraulic augers and breakers, allowing the machine to handle trenching, fertilizer trenching, backfilling, small-area compaction, and light demolition.
-

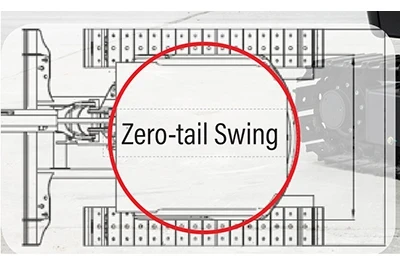

- Zero tail swing The compact rear design keeps the excavator's tail within the track width when the undercarriage is fully extended, allowing the upper structure to rotate through 360° in confined working areas.
-

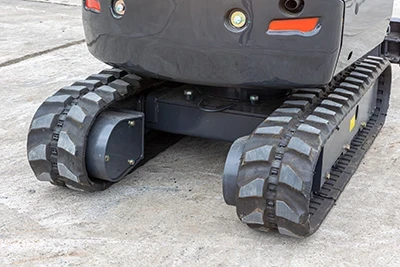

- Retractable Undercarriage Hydraulically adjustable undercarriage narrows to 990 mm for access through tight spaces and extends to 1,300 mm to provide more stable support during operation.
-

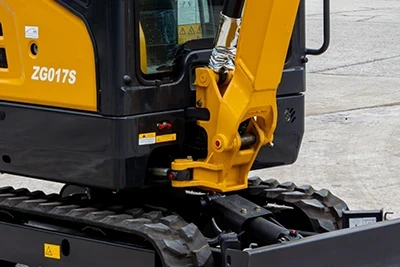

- Boom Swing The boom swings 57° to the left and 61° to the right, allowing the operator to position the digging equipment to either side without repositioning the entire machine.
-

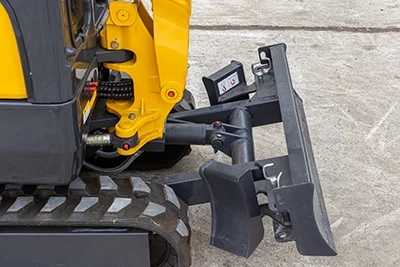

- Foldable Dozer Blade The foldable dozer blade has an adjustable width using two securing pins, making it easier to adapt the machine to different access and working conditions.
-
