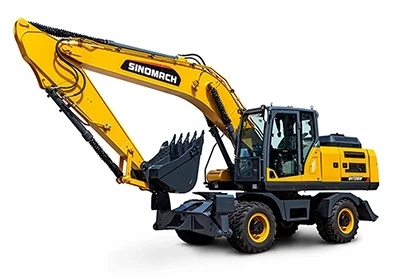

GHT215W Wheeled Hydraulic Excavator

GHT215W is a 21-ton-class wheeled hydraulic excavator designed for municipal construction, road maintenance, utility trenching, and material handling. The Cummins-powered excavator features a 6BTA5.9-C180-II diesel engine rated at 132 kW at 2,200 rpm. Equipped with dual variable-displacement piston main pumps and a maximum travel speed of 30 km/h, this wheeled excavator offers the mobility needed for projects that involve frequent travel between worksites.

Consulting Products Information
Technical Specifications
Parameter Specification
Basic Specifications Engine model Cummins 6BTA5.9-C180-II
Power / speed (kW/rpm) 132/220
Operating weight (kg) 21500
Bucket capacity (m³) 1.0
Dimensions Transport length (mm) 9700
Transport height (mm) 3300
Overall width (mm) 2490
Tail swing radius (mm) 2750
Wheel track (mm) 1975
Wheelbase (mm) 2855
Work Range Max. digging height (mm) 11000
Max. dumping height (mm) 8020
Max. digging depth (mm) 6437
Max. digging radius (mm) 10050
Operating Specifications Hydraulic system pressure (MPa) 32
Hydraulic system flow (L/min) 2*239
Boom length (mm) 5700
Arm length (mm) 2900
Bucket digging force (kN) 152.1
Arm digging force (kN) 119.5
Fuel tank capacity (L) 350
Hydraulic oil tank capacity (L) 215
Gradeability (%) ≥60
Swing speed (rpm) 11
Max. travel speed (km/h) 30
Dozer blade dimensions (W × H) (mm) 2500×590
Dozer blade lift height (mm) 430
Dozer blade support height (mm) 180
Gallery

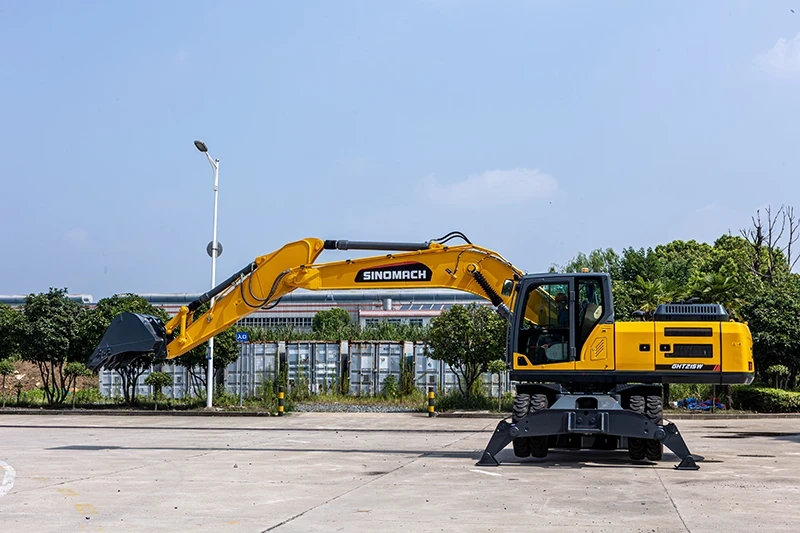

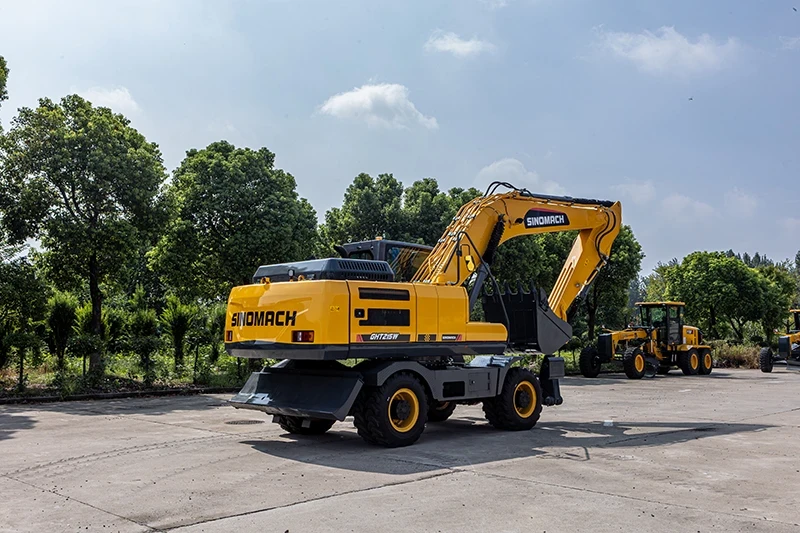

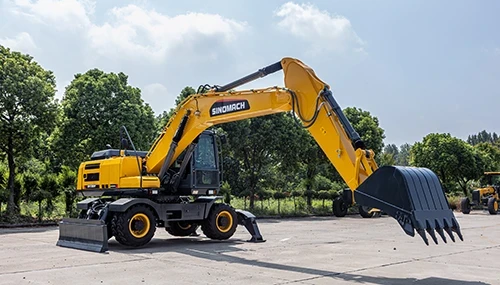

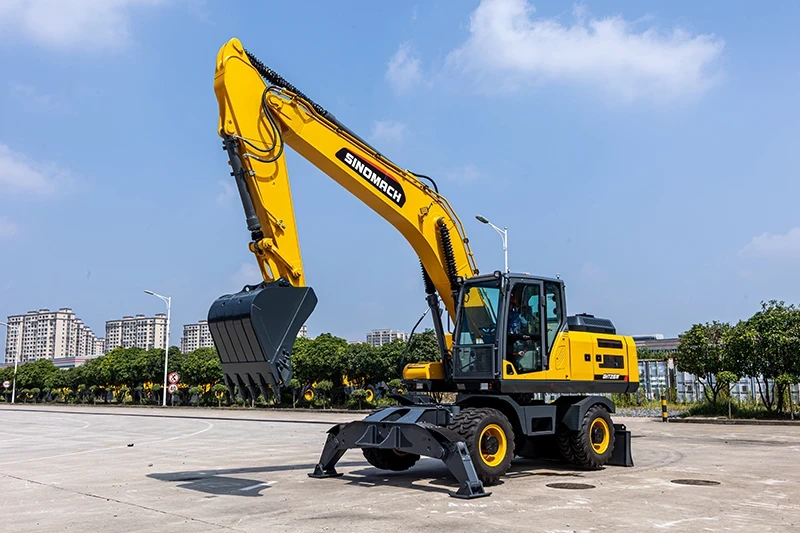

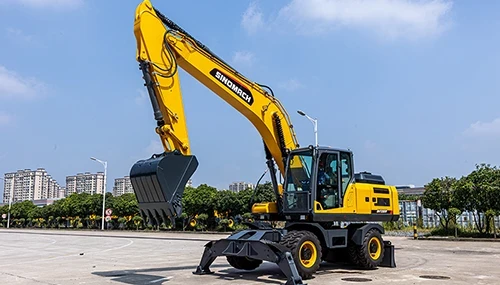

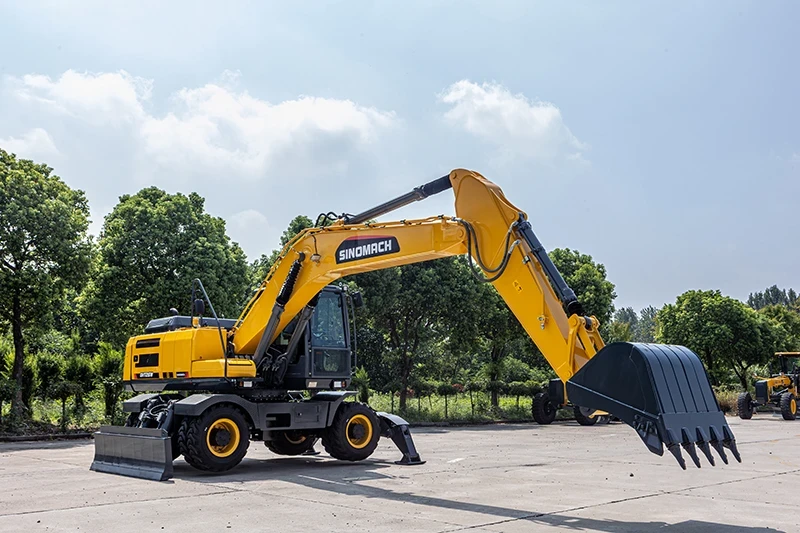

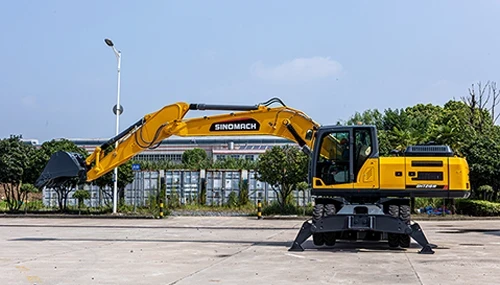

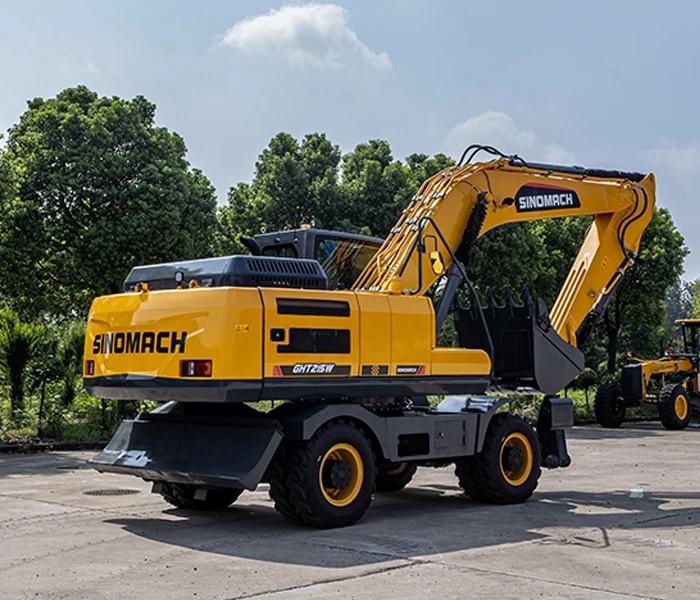

GHT215W Wheeled Hydraulic Excavator
GHT215W Wheeled Hydraulic Excavator
GHT215W Wheeled Hydraulic Excavator
GHT215W Wheeled Hydraulic Excavator
