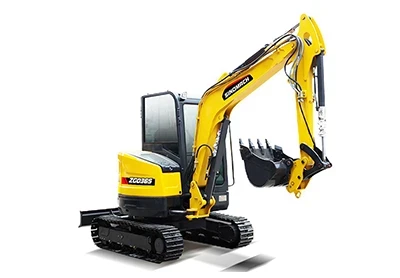

ZG036S Hydraulic Compact Excavator

The ZG036S is a zero-tail-swing compact crawler excavator designed for construction in confined spaces. With an overall width of 1,740 mm and a tail swing radius of just 860 mm, it is well suited to working between buildings, along roadsides, in orchards, and in other areas with limited space.

Powered by a Yanmar 3TNV88F three-cylinder diesel engine rated at 18.2 kW at 2,200 rpm, the compact excavator combines compact dimensions with a boom swing function that facilitates trenching alongside walls, fences, and road edges. A two-speed travel system provides speeds of 2.4 km/h and 4.4 km/h for different working conditions.

Consulting Products Information
Technical Specifications
Basic Specifications Operating weight kg 3800
Standard bucket capacity m3 0.12
Standard bucket width mm 650
Overall length mm 4880
Overall width, transport position mm 1740
Overall height, transport position mm 2550
Undercarriage width mm 1740
Track length mm 2155
Track shoe width mm 300
Track gauge mm 1650
Min. ground clearance mm 295
Counterweight ground clearance mm 595
Tail swing radius mm 860
Arm length mm 1400
Boom length mm 2540
Fuel tank capacity L 50
Hydraulic oil tank capacity L 40
Performance Specifications Engine model Yanmar 3TNV88F
Rated engine power kW/rpm 18.2/2200
Emission standards U.S. EPA Tier 4 Final / EU Stage V
Max. gradability 30°
Max. arm digging force kN 18.2
Max. bucket digging force kN 30.4
Travel speed km/h 2.4/4.4
Swing speed rpm 9
Working Range Max. digging height mm 4910
Max. digging depth mm 3000
Max. vertical digging depth mm 2690
Max. digging reach mm 5500
Max. digging reach at ground level mm 5345
Max. dumping height mm 3545
Features

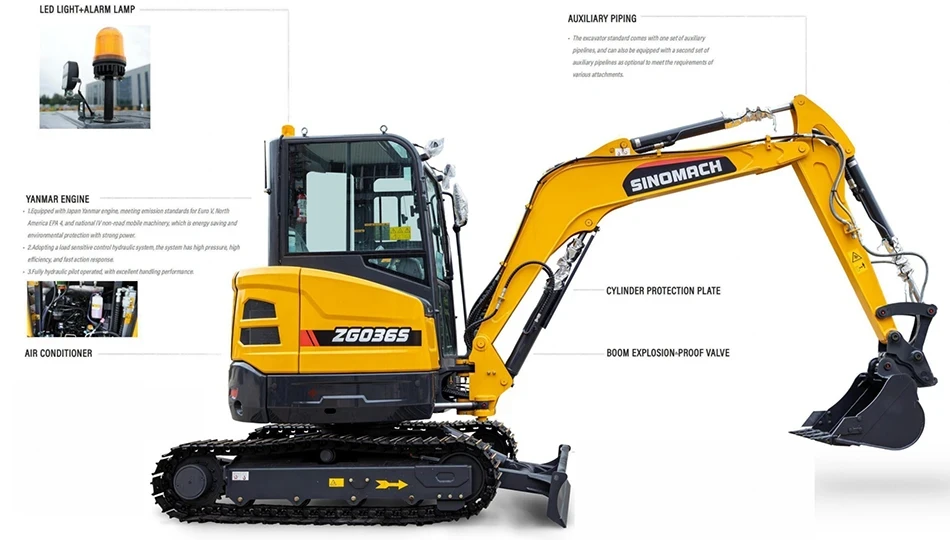

ZG036S Hydraulic Compact Excavator
    1. ZG036S Hydraulic Compact Excavator

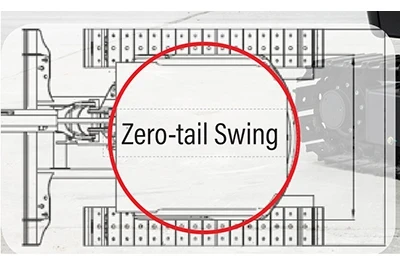

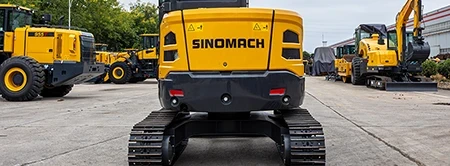

    2. Zero tail swing The upper structure stays within the track width throughout a full 360° rotation, allowing the excavator to maneuver and work in confined areas with limited rear clearance.
    1. ZG036S Hydraulic Compact Excavator

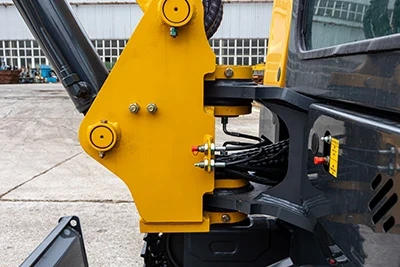

    2. Boom Swing The boom swings to either side, with a maximum offset of 550 mm to the left and 800 mm to the right. This enables precise positioning of the digging equipment without repositioning.
