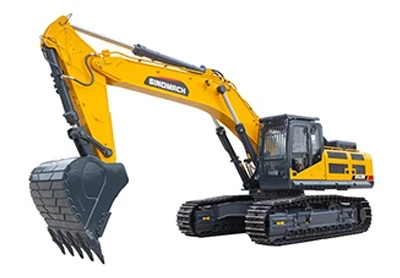

GE520H Hydraulic Crawler Excavator
GE520H is a 50-ton-class hydraulic crawler excavator designed for mining and large-scale earthmoving. Equipped with a 6.55 m boom, 2.5 m arm, and 3.2 m³ standard bucket, it is suited to quarry loading, overburden removal, bulk excavation, and hydraulic breaking.
Equipped with Cummins QSM11(III)-C375 electronically controlled diesel engine, this crawler excavator delivers 280 kW at 2,000 rpm. The excavator also integrates a self-cleaning cooling system, dedicated breaker controls, and cab protection measures to meet the demands of mining and quarry operations.
Consulting Products Information
Features
- Self-Cleaning Cooling System
The semi-independent cooling system features a self-cleaning function to help maintain cooling performance in dusty working environments. - Intelligent Machine Monitoring
Fitted with an 8-inch high-definition display offers a clear, easy-to-read interface, while the electronic monitoring system provides maintenance reminders, fault self-diagnosis, and alarms to keep operators informed of machine condition. - Machine Management System
The excavator management system combines BeiDou dual-mode positioning with high-speed 4G communication for equipment positioning and data transmission. - Noise-Reducing Engine Compartment
A honeycomb air intake design optimizes airflow through the engine compartment, while improved sealing and sound insulation help reduce machine noise. - Dedicated Hydraulic Breaker Mode
A dedicated breaker program allows remote adjustment of hydraulic flow and pressure to accommodate different breaking requirements. - Attachment Compatibility
The hydraulic crawler excavator is configured to accommodate a hydraulic breaker with a 200 mm tool diameter and can be equipped with additional digging attachments to suit different excavation tasks. - Double-Grouser Track Shoes
Standard double-grouser track shoes provide traction for travel across mining terrain. - Oil-Bath Air Precleaner
A standard oil-bath air precleaner helps remove airborne contaminants before they reach the engine's main air filtration system, making the machine better suited to heavily dust-laden environments. - Cab Protection
Protective screens and protective glazing help shield the cab's roof, front, and right side from impacts caused by flying rock fragments and other hard debris.
Technical Specifications
| Basic Specifications | Operating weight | kg | 50460 | |
| Standard bucket capacity | m3 | 3.2 | ||
| Engine model | Cummins QSM11(III)-C375 | |||
| Engine type | Inline 6-cylinder, four-stroke, turbocharged | |||
| Emission standard | China Stage Ⅲ | |||
| Engine cooling method | Water-cooled | |||
| Bore × stroke | mm | 125×147 | ||
| Displacement | L | 10.8 | ||
| Rated power / speed | kW/rpm | 280/2000 | ||
| Max. torque / speed | N·m/rpm | 1898/1300 | ||
| Engine oil capacity | L | 31.8-40.9 | ||
| Main hydraulic system pressure | MPa | 37 | ||
| Fuel tank capacity | L | 710 | ||
| Hydraulic oil tank capacity | L | 410 | ||

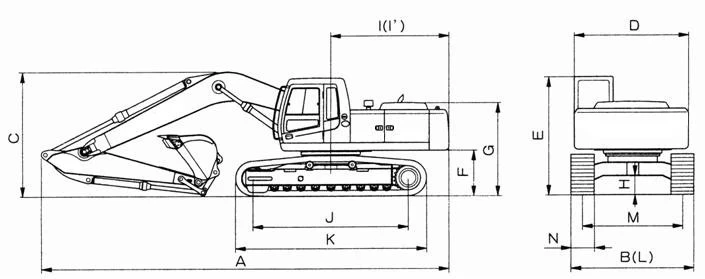

| Dimensions & Performance | Overall length | A | mm | 11657 |
| Overall width (600 mm track shoes) | B | mm | 3340/3562 (with step) | |
| Overall height | C | mm | 3998 | |
| Upper structure width | D | mm | 3214 | |
| Height to cab top | E | mm | 3438 | |
| Counterweight ground clearance | F | mm | 1276 | |
| Engine cover height | G | mm | 2918 | |
| Min. ground clearance | H | mm | 555 | |
| Upper structure tail length | I | mm | 3740 | |
| Tail swing radius | I’ | mm | 3780 | |
| Track wheelbase | J | mm | 4470 | |
| Undecarriage length | K | mm | 5595 | |
| Undecarriage width | L | mm | 3340/3562 (with step) | |
| Track gauge | M | mm | 2740 | |
| Standard track shoe width | N | mm | 600 | |
| Max. tractive effort | kN | 339 | ||
| Travel speed (high/low) | km/h | 4.9/2.9 | ||
| Swing speed | rpm | 9.4 | ||
| Gradeability | ° (%) | 35° (70%) | ||
| Ground pressure | kgf/cm2 | 0.85 | ||

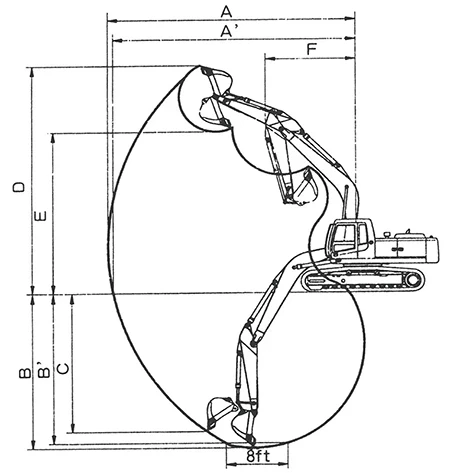

Working Range
| Parameter | Specification | |
| Max. digging reach | A | 10922 mm |
| Max. digging reach at ground level | A’ | 10691 mm |
| Max. digging depth | B | 6453 mm |
| Max. digging depth (2438 mm level bottom) | B’ | 6280 mm |
| Max. vertical digging depth | C | 5663 mm |
| Max. digging height | D | 11020 mm |
| Max. dumping height | E | 7438 mm |
| Min. front swing radius | F | 4740 mm |
| Bucket digging force | ISO | 290 kN |
| Arm digging force | ISO | 270 kN |
Details
-

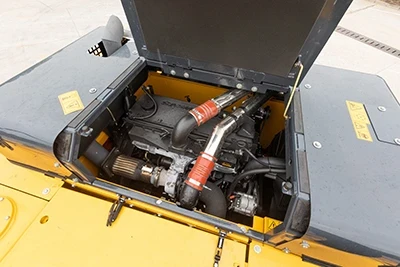

Engine
-

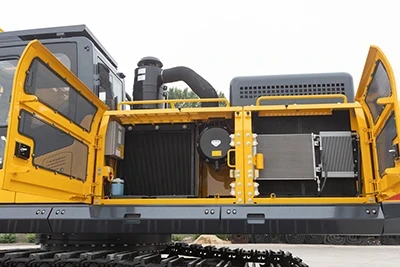

Spacious Layout (Maintenance-Friendly)
-

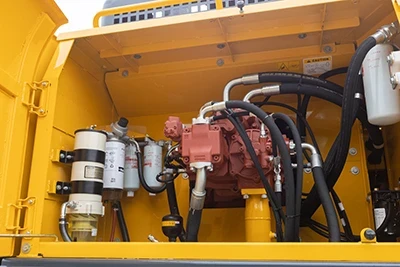

Hydraulic Pump
-

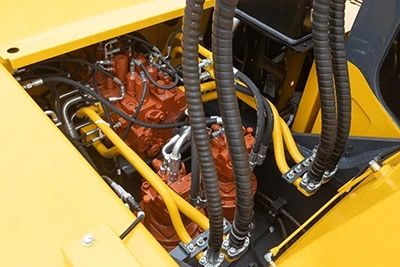

Hydraulic Control Valve
