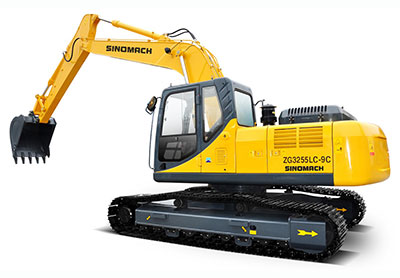

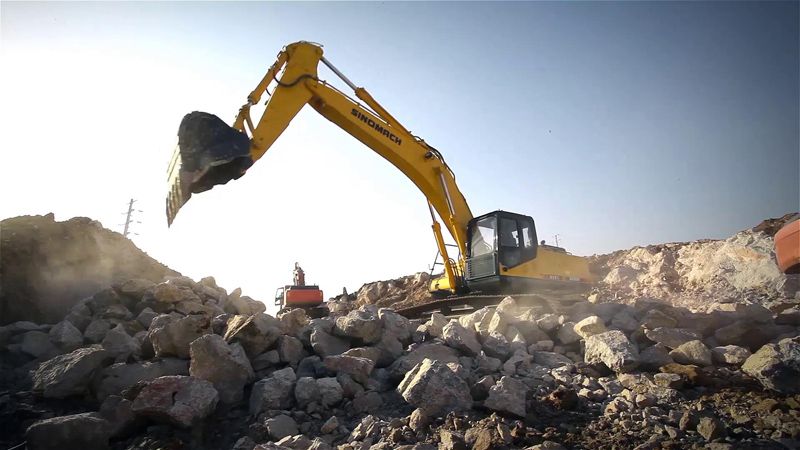

ZG3255LC-9C Crawler Excavator
- Our hydraulic crawler excavator is equipped with a reliable original Cummins engine.
- It has a reliable hydraulic system with imported pumps, motor and valves.
- Its electronic monitoring and control system comes with a multifunctional LCD display that shows information.
- With a stepped-up device, the hydraulic excavator is applicable to mines.
- Strengthened X-shaped box structure
Consulting Products Information
Specifications of ZG3255LC-9C Hydraulic Excavator:
| Model | ZG3255LC-9C |
| Length×Width×Height(mm) | 9840×3180×3180 |
| Operating weight (Kg) | 25000 |
| Rated bucket capacity(m3) | 1.2 |
| Max.digging depth(mm) | 6995 |
| Max.digging radius(mm) | 10258 |
| Max.digging height(mm) | 9612 |
| Max.dumping height(mm) | 6690 |
| Bucket digging force(KN) | 162 |
| Stick digging force(KN) | 123 |
| Gradient capacity(%) | 70 |
| Diesel engine | Cummins 6BTAA5.9-C178 |
| Rated output(KW) | 133 |

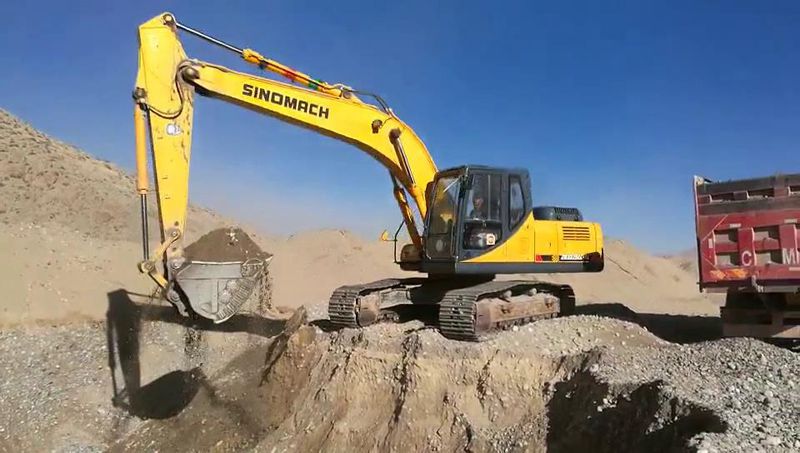

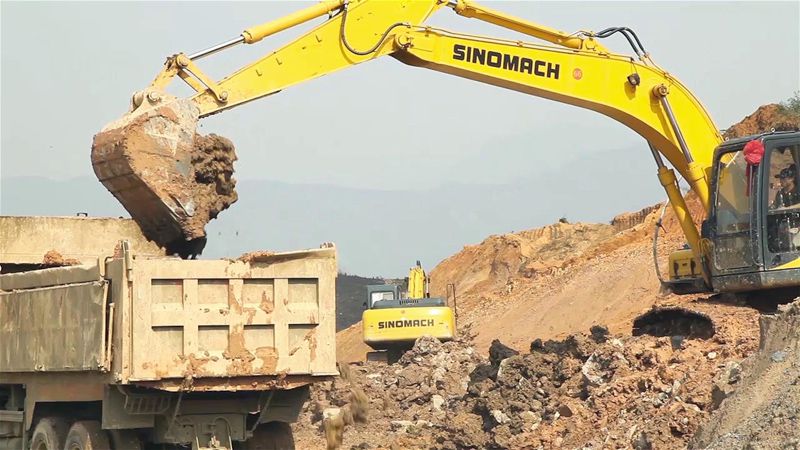

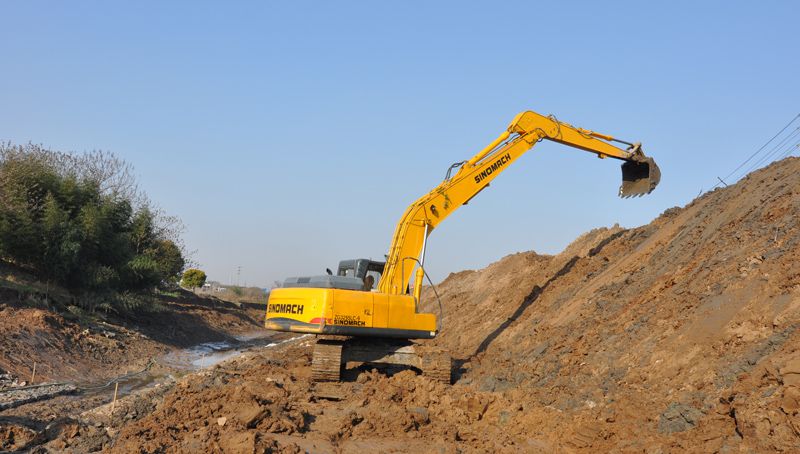

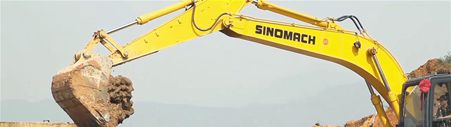

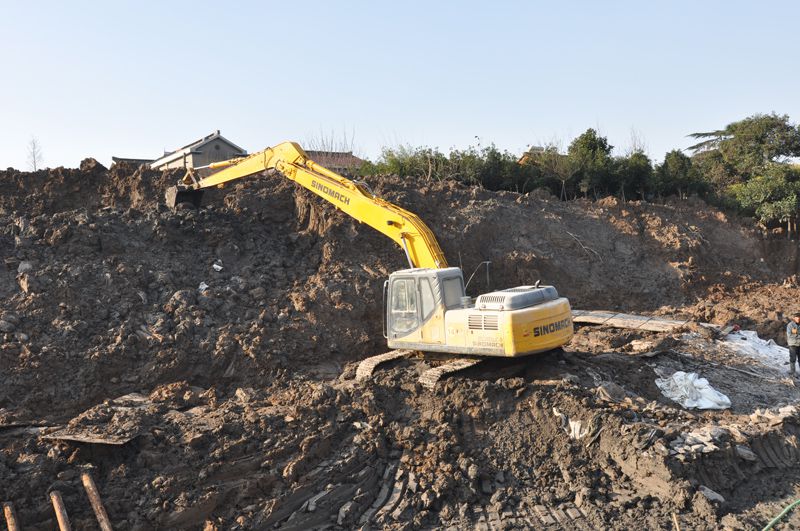

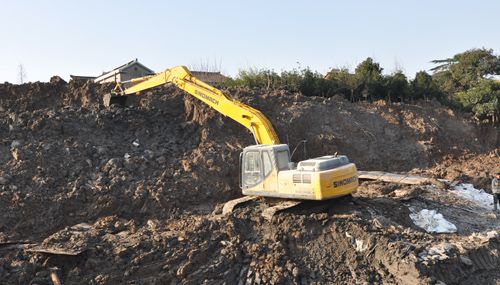

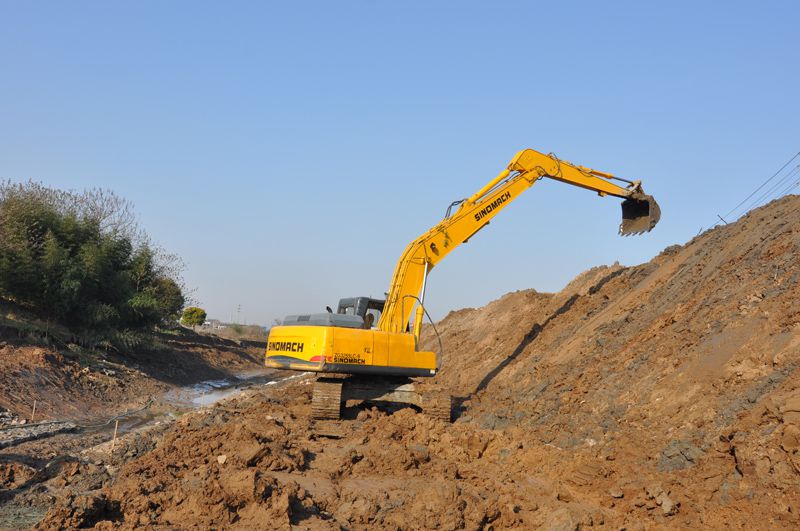

Gallery
