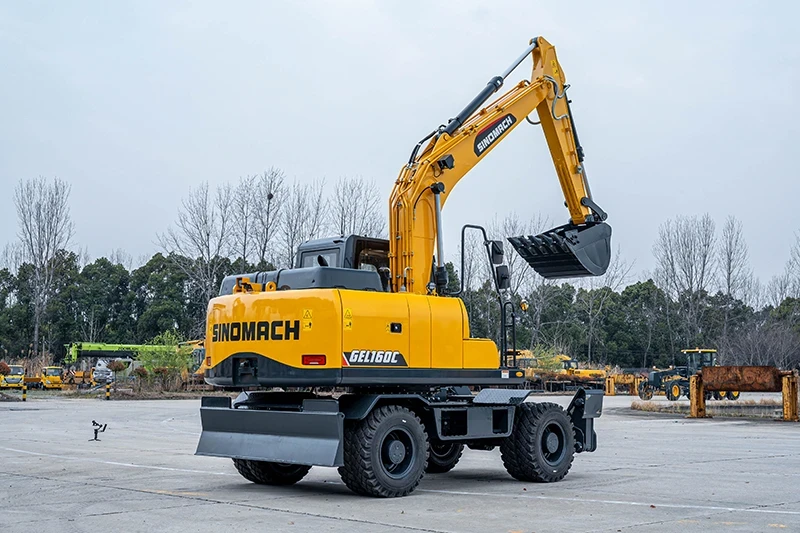

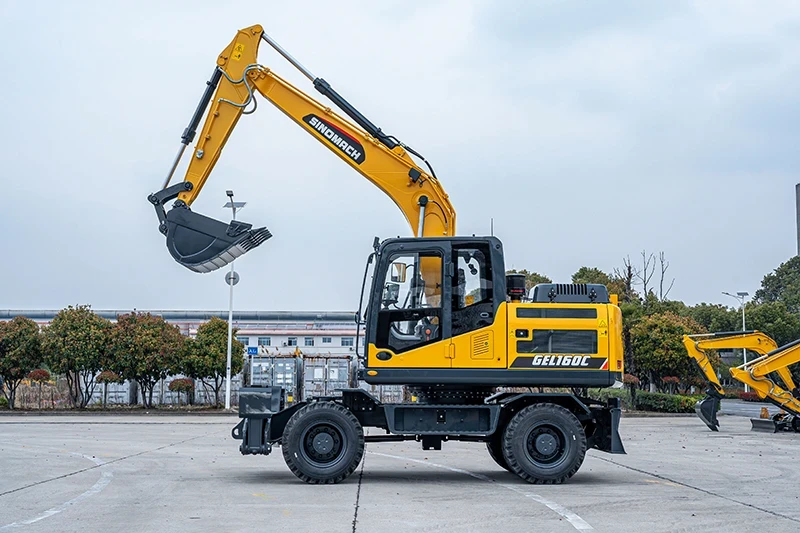

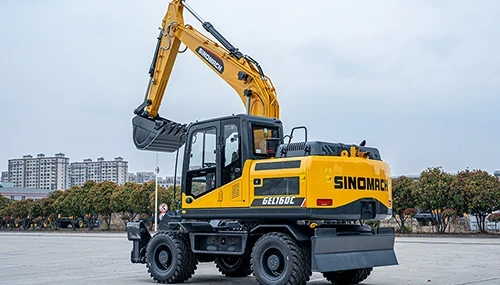

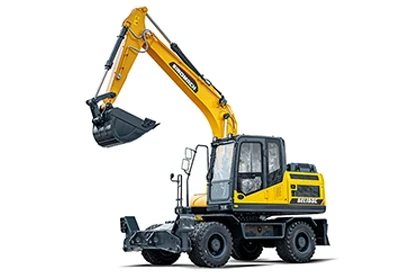

GEL160C Wheeled Hydraulic Excavator
GEL160C series is a 14-ton-class wheeled hydraulic excavator designed for municipal construction, road maintenance, utility trenching, and projects that require frequent relocation between worksites. The wheeled excavator’s standard configuration includes a 4.6 m boom, 2.1 m arm, 0.6 m³ bucket, and dozer blade.
With a maximum travel speed of 32 km/h, the excavator offers the mobility needed for jobs spread across multiple locations. A bucket digging force of 100 kN and an arm digging force of 76 kN provide the digging capability required for its multiple excavation applications.
Consulting Products Information
Features
- Hydraulic System
Equipped with a Hengli hydraulic system for the machine's excavation and working functions. The system includes a large-displacement main pump, a large-flow main valve, a large flow area, small pressure loss, more reasonable flow distribution, better coordination, and easier operation. - Four-Wheel Drive and Hydraulic Suspension
The drivetrain allows gear changes while driving, and full-time four-wheel drive supports travel between worksites. A dual-balance hydraulic suspension system on the front axle automatically adjusts the axle's tilt angle according to road conditions, contributing to a smoother ride. - Dozer Blade and Optional Hydraulic Stabilizers

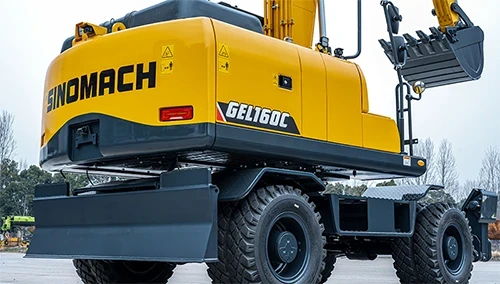

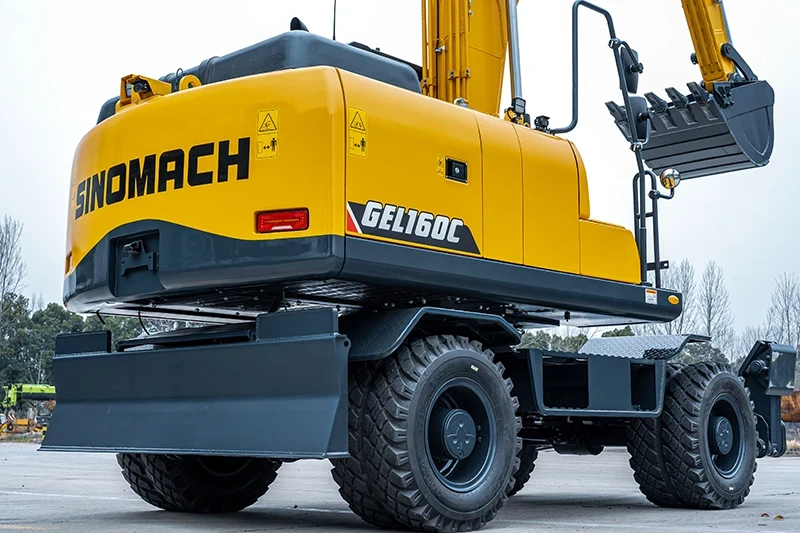

The wheel excavator comes with a standard dozer blade, and optional hydraulic stabilizers can be fitted without replacing the undercarriage. Key components of the working equipment are made from cast steel for increased structural strength and durability. - LED Work Lighting
Equipped with eight LED work lights, positioned across the boom, cab, and upper structure to improve illumination during nighttime operations. - Adaptive Hydraulic Power Control
The control system automatically adjusts hydraulic power absorption according to operating conditions, matching hydraulic power demand to the task at hand for optimal overall performance. - Intelligent Monitoring and Enhanced Visibility
Equipped with an 8-inch, high-resolution, high-brightness color display with an anti-glare design for a clear machine-monitoring interface. The electronic monitoring system includes maintenance reminders, fault self-diagnosis, and alarm functions. A rearview camera, right-side blind-spot camera, and four exterior mirrors come as standard, helping operators monitor the machine's surroundings during travel and maneuvering.
Technical Specifications
| Parameter | Unit | Specification | |
| Operating weight | kg | 14000 | |
| Rated power / speed | kW/rpm | 112/1950 | |
| Engine model | Cummins 6BTAA5.9-C150 | ||
| Emission standard | China StageⅡ | ||
| Standard bucket capacity | m3 | 0.6 | |

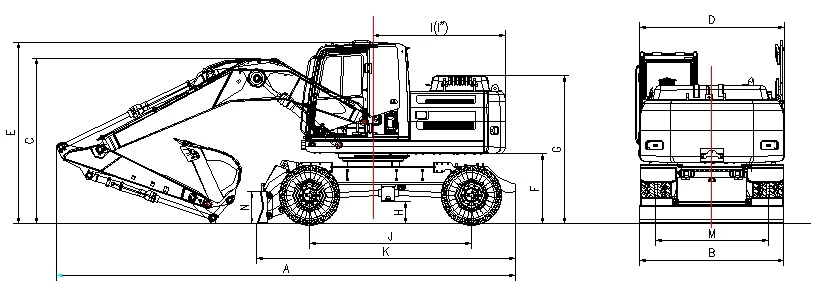

| Overall Length | A | mm | 7937 |
| Upper structure width | D | mm | 2500 |
| Height to cab top | E | mm | 3143 |
| Counterweight ground clearance | F | mm | 1216 |
| Engine cover height | G | mm | 2567 |
| Min. ground clearance | H | mm | 384 |
| Upper structure tail length | I | mm | 2292 |
| Tail swing radius | I’ | mm | 2350 |
| Wheelbase | J | mm | 2800 |
| Undecarriage length | K | mm | 4483 |
| Undecarriage width | B | mm | 2490 |
| Wheel track width | M | mm | 1945 |
| Dozer blade height | N | mm | 564 |
| Max. tractive effort | kN | 78 | |
| Travel speed (hight/low) | km/h | 32/7.6 | |
| Swing speed | rpm | 13 | |
| Gradeability | ° (%) | 35° (70%) | |

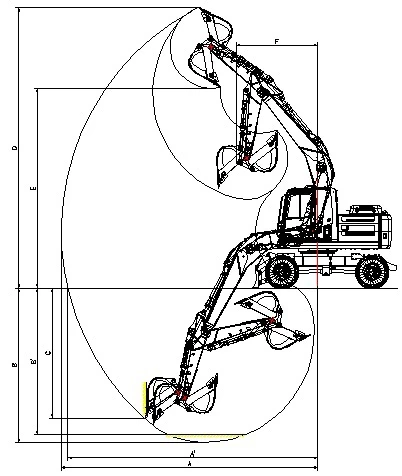

Working Range
| Parameter | Specification | |
| Max. digging reach | A | 7957 mm |
| Max. digging reach at ground level | A | 7754 mm |
| Max. digging depth | B | 4790 mm |
| Max. digging depth (2438 mm level bottom) | B’ | 4554 mm |
| Max. vertical digging depth | C | 4042 mm |
| Max. digging height | D | 8703 mm |
| Max. dumping height | E | 6208 mm |
| Min. front swing radius | F | 2507 mm |
| Bucket digging force | ISO | 100 kN |
| Arm digging force | ISO | 76 kN |
Gallery
Inquiry
Compare Against Other Products
-
- GHT160W Rated output(KW): 93
Rated bucket capacity(m3): 0.6
Operating weight(Kg): 14500
-

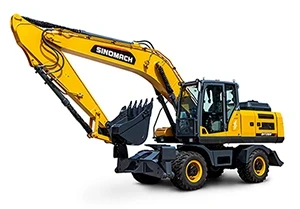

- GHT215W Operating weight(Kg): 21500
