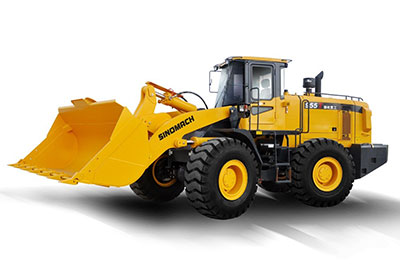

955T Wheel Loader

955T Wheel Loader
  • The 955T wheel loader is installed with Weichai engine
  • Two forward and one reverse power shift transmissions are installed.
  • Combined sealing cylinder brings good sealing performance and reliability.
Download
Consulting Products Information
Technical Specification of Wheel Loader:
Model 955T
Length×Width×Height(mm) 8020×2800×3450
Rated load (Kg) 5000
Rated bucket capacity(m3) 3.0
Operating weight(Kg) 16500
Diesel engine WEICHAI WD10G220E23
Rated output(KW) 162
Transmission case HANGCHI ZL50D
Gear positions 2 forward gear, 1 reverse gear
Max. drawing force(KN) 170
Max. dump clearance(mm) 3136
Dump reach (mm) 1171
Wheel base(mm) 3100
Total cycle time (s) 11.8

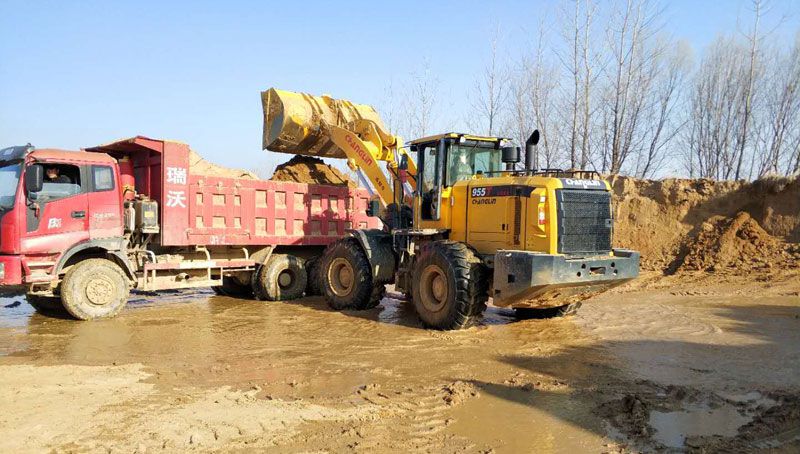

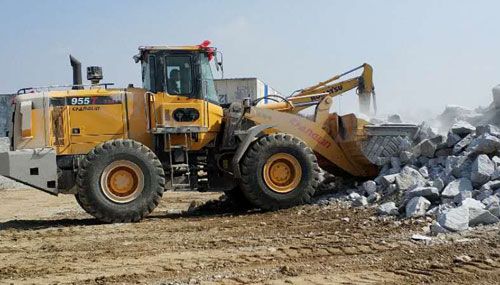

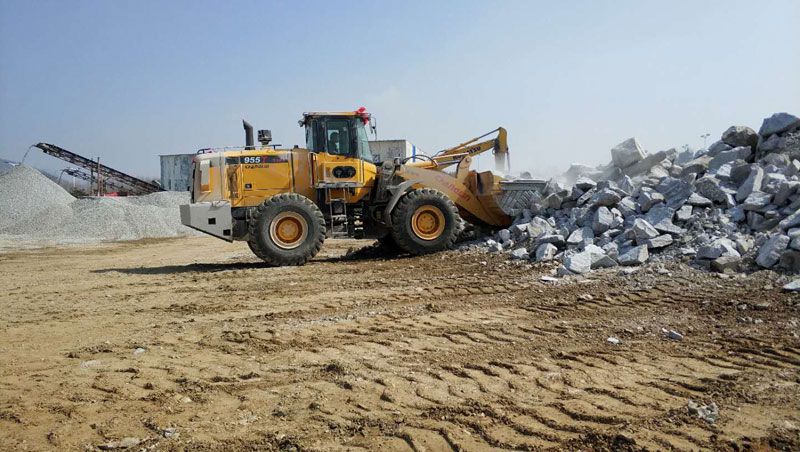

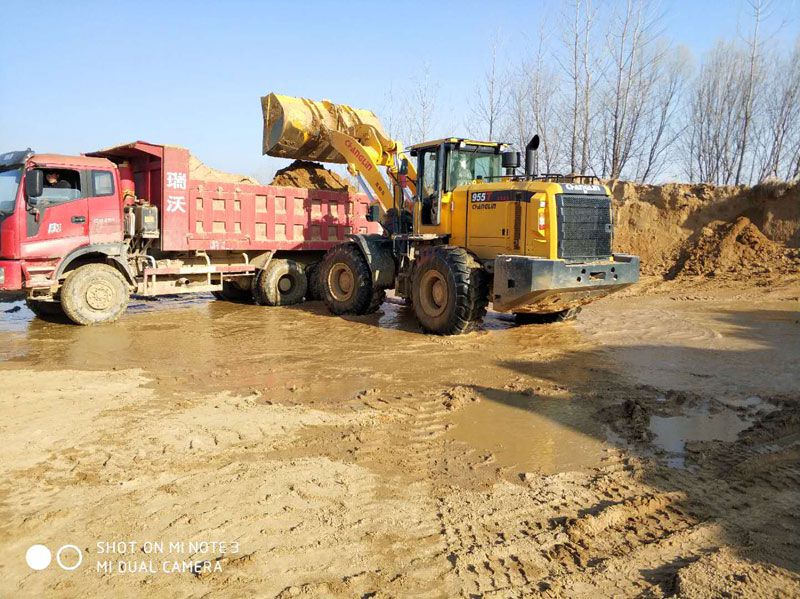

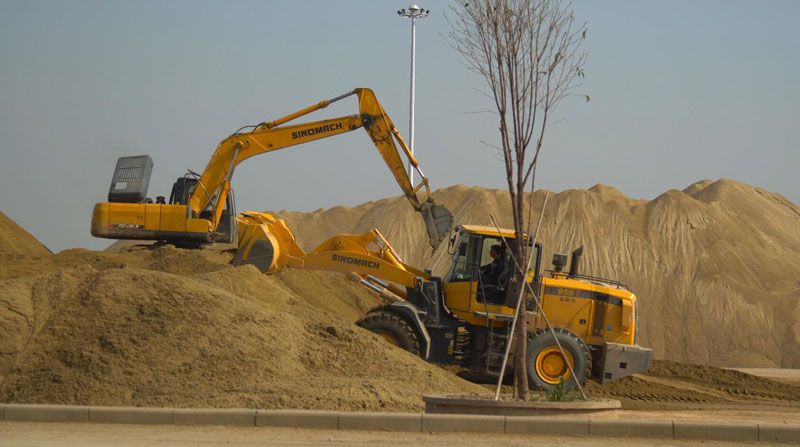

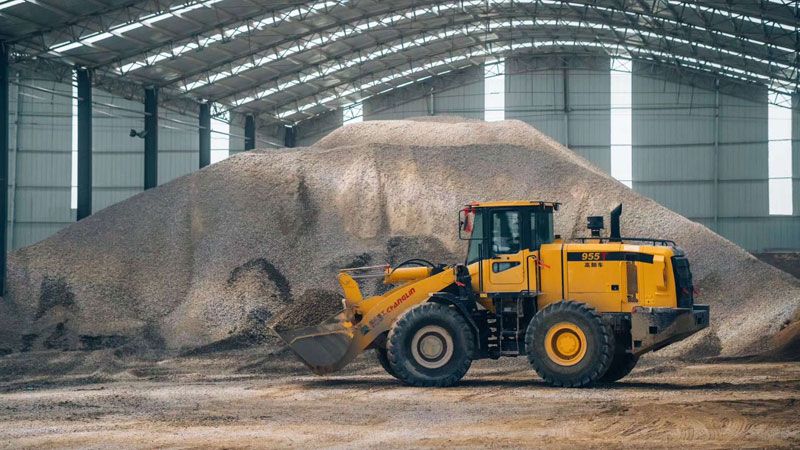

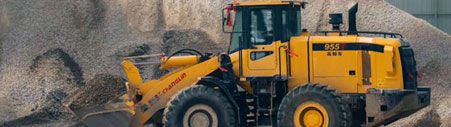

Gallery
  • Images

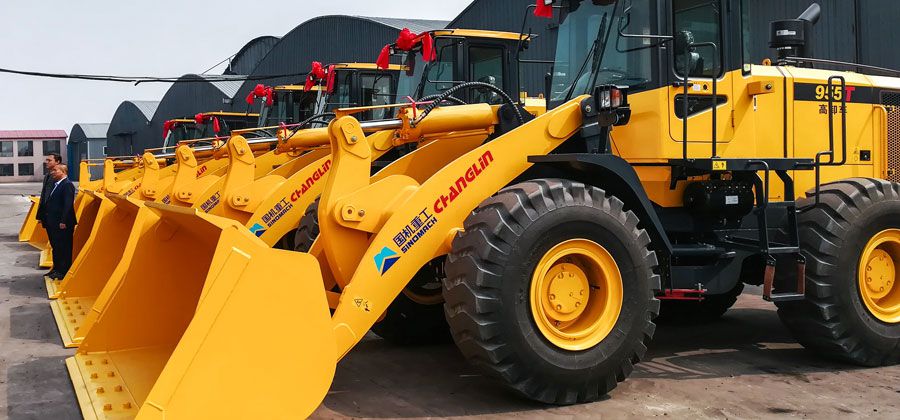

  • VR View

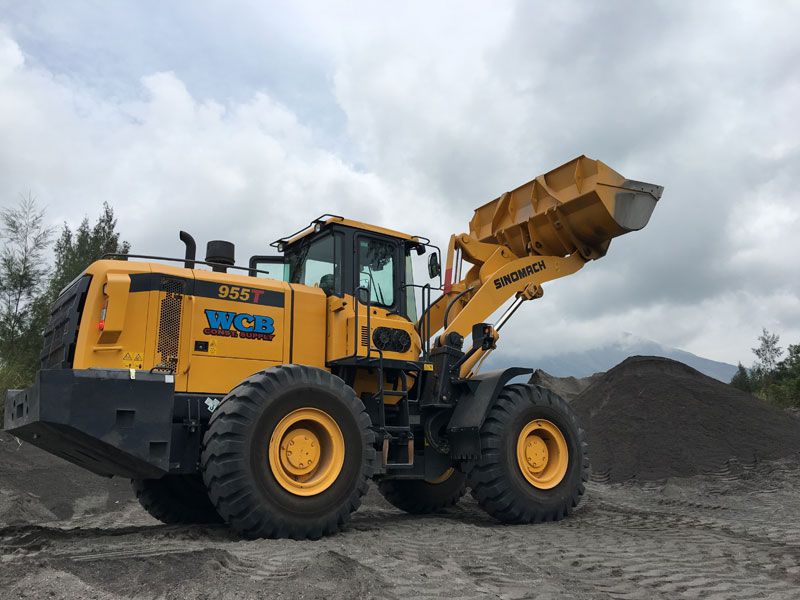

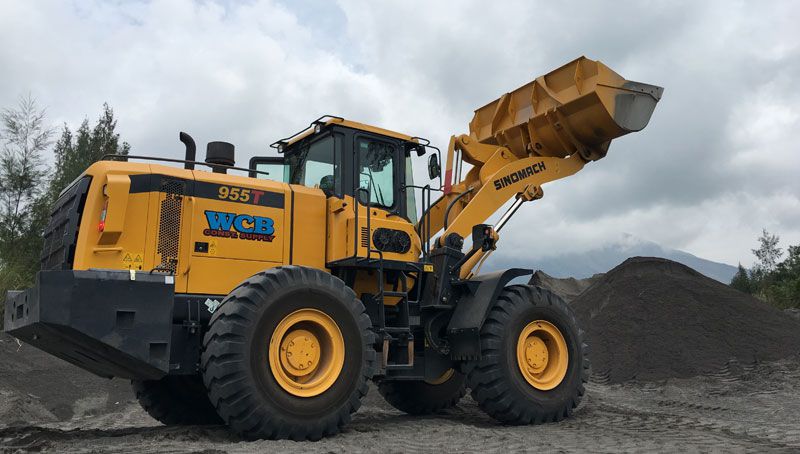

955T Wheel Loader
