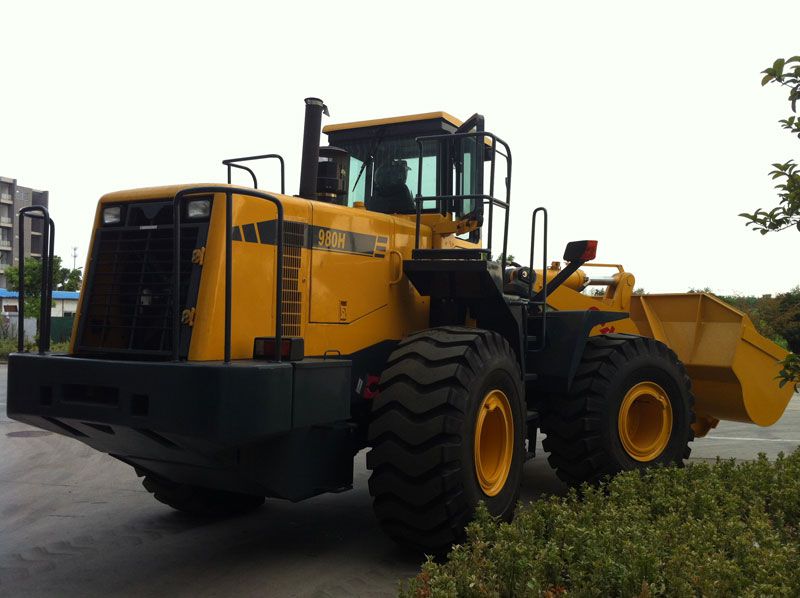

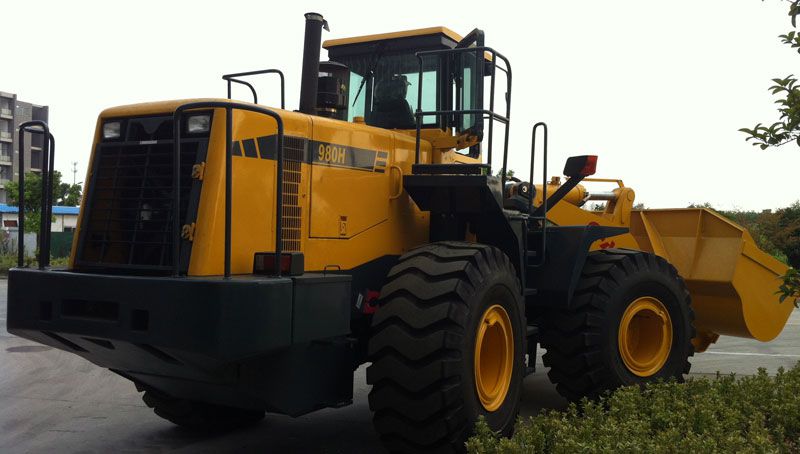

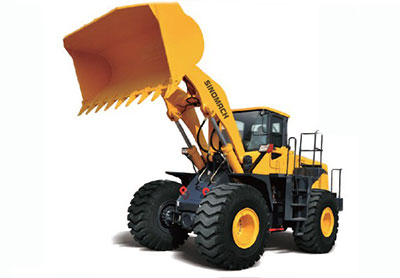

980H Wheel Loader
This 980H Wheel Loader is equipped with reliable original Cummins engine, famous original ZF wet-type axles with multi-disc limited-slip differentials, combined seal cylinder which obtains high seal performance and more reliability, dual brake valve & dual pipe full hydraulic brake and central lubrication.
Consulting Products Information
Features of 980H Wheel Loader:
- KD switch allows better efficiency & easy operation
- Reliable ZF transmission case and Torque Converter
- Bucket automatic leveling ability
- It can deliver maximum traction in changing traction conditions
Specifications of Wheel Loader 980:
| Model | 980H |
| Length×Width×Height(mm) | 8696×3099×3710 |
| Rated load (Kg) | 7500 |
| Rated bucket capacity(m3) | 4.2 |
| Operating weight(Kg) | 23500 |
| Diesel engine | Original Cummins QSM11-C290 |
| Rated output(KW) | 216 |
| Transmission case | ZF |
| Gear positions | 4 forward gear, 3 reverse gear |
| Max. drawing force(KN) | 222 |
| Max. dump clearance(mm) | 3220 |
| Dump reach (mm) | 1275 |
| Wheel base(mm) | 3400 |
| Total cycle time (s) | 11.8 |
