957Z Wheel Loader
- The 957Z wheel loader utilizes 4 forward and 3 reverse power shift transmission.
- The KD switch allows for easy and efficient operation of the engineering vehicle.
- This loading equipment adopts load-sensing fully hydraulic steering system and dual-pump confluent flow working hydraulic system.
- The combined seal cylinder ensures high sealing performance and working reliability.
Consulting Products Information
Specifications of Wheel Loader:
| Model | 957Z |
| Length×Width×Height(mm) | 8130×2800×3450 |
| Rated load (Kg) | 5000 |
| Rated bucket capacity(m3) | 3.0 |
| Operating weight(Kg) | 16700 |
| Diesel engine | Cummins 6LTAA 9.3/ShangChai SC11CB220G2B1 |
| Rated output(KW) | 158/162 |
| Transmission case | ZF |
| Gear positions | 4 forward gear, 3 reverse gear |
| Max. drawing force(KN) | 165 |
| Max. dump clearance(mm) | 3050 |
| Dump reach (mm) | 1107 |
| Wheel base(mm) | 3200 |
| Total cycle time (s) | 11 |

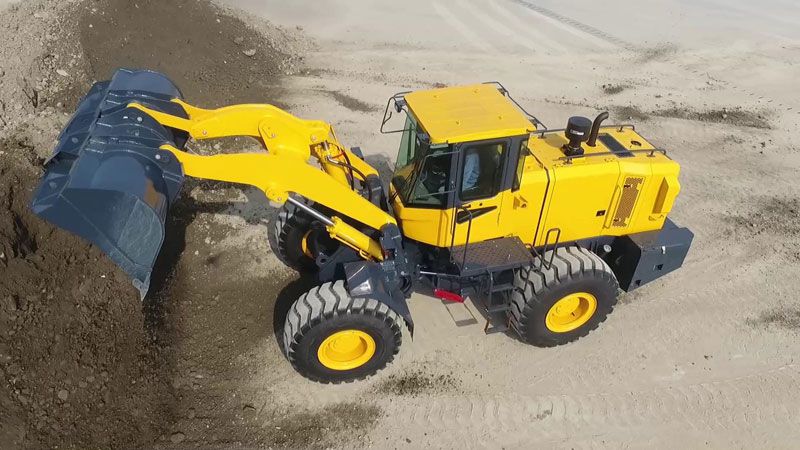

Gallery
